Fuel Tank - Drain Plug Washer and Torque Revision

NO.: TSB-96-13-018

DATE: August, 1996

MODEL: See Below

SUBJECT:
FUEL TANK DRAIN PLUG WASHER AND TORQUE - SERVICE MANUAL REVISION

PURPOSE

This bulletin indicates that a new fuel tank drain plug washer is required anytime the fuel tank drain plug is removed and revises the drain plug tightening torque on selected models.


AFFECTED VEHICLES

1992-96 3000GT
1992-96 Diamante
1992-95 Expo and Expo LRV

AFFECTED SERVICE MANUALS

1992-96 3000GT Service Manual
1992-96 Diamante Service Manual
1992-96 Expo/Expo LRV Service Manual





SERVICE MANUAL REVISION

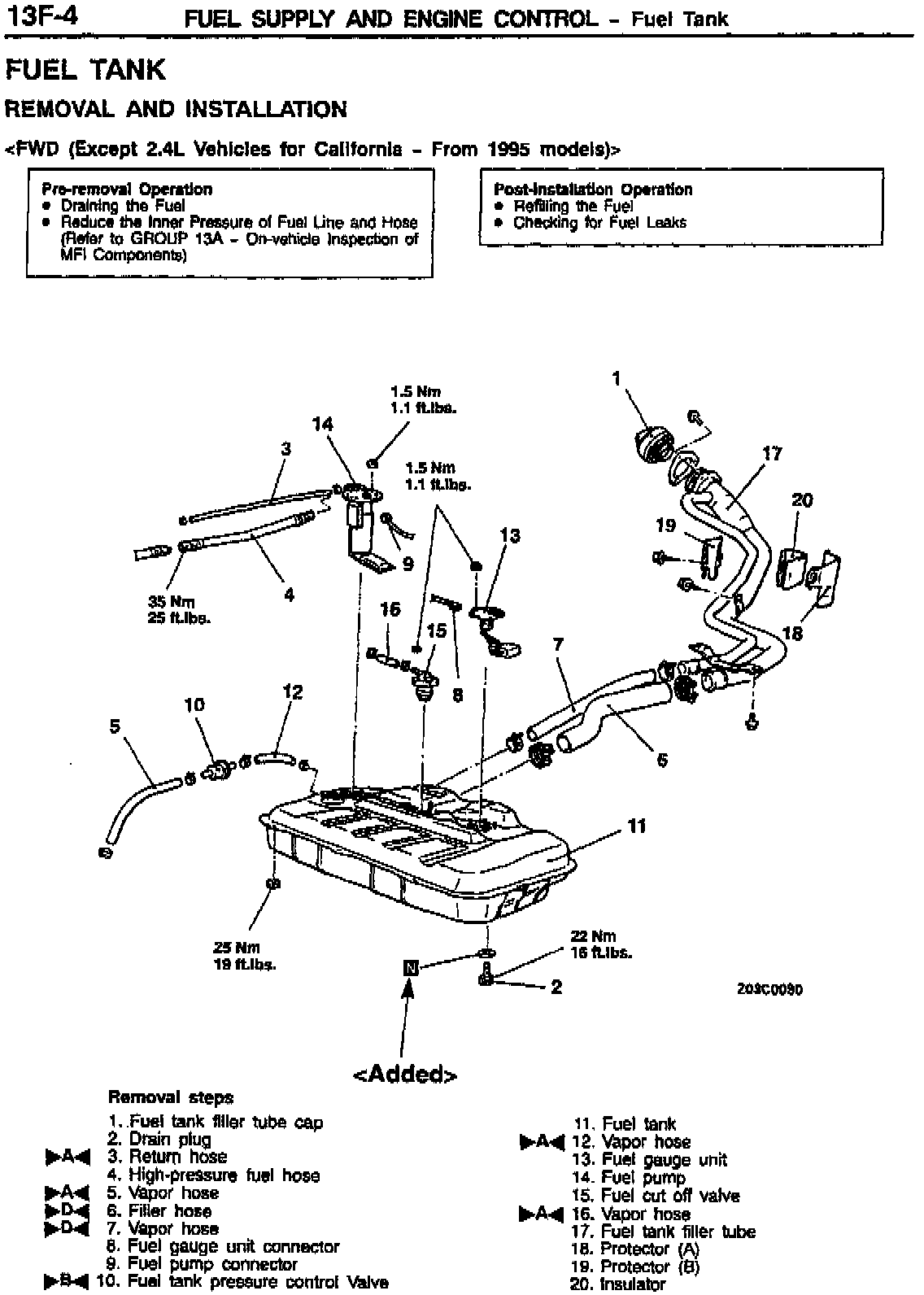

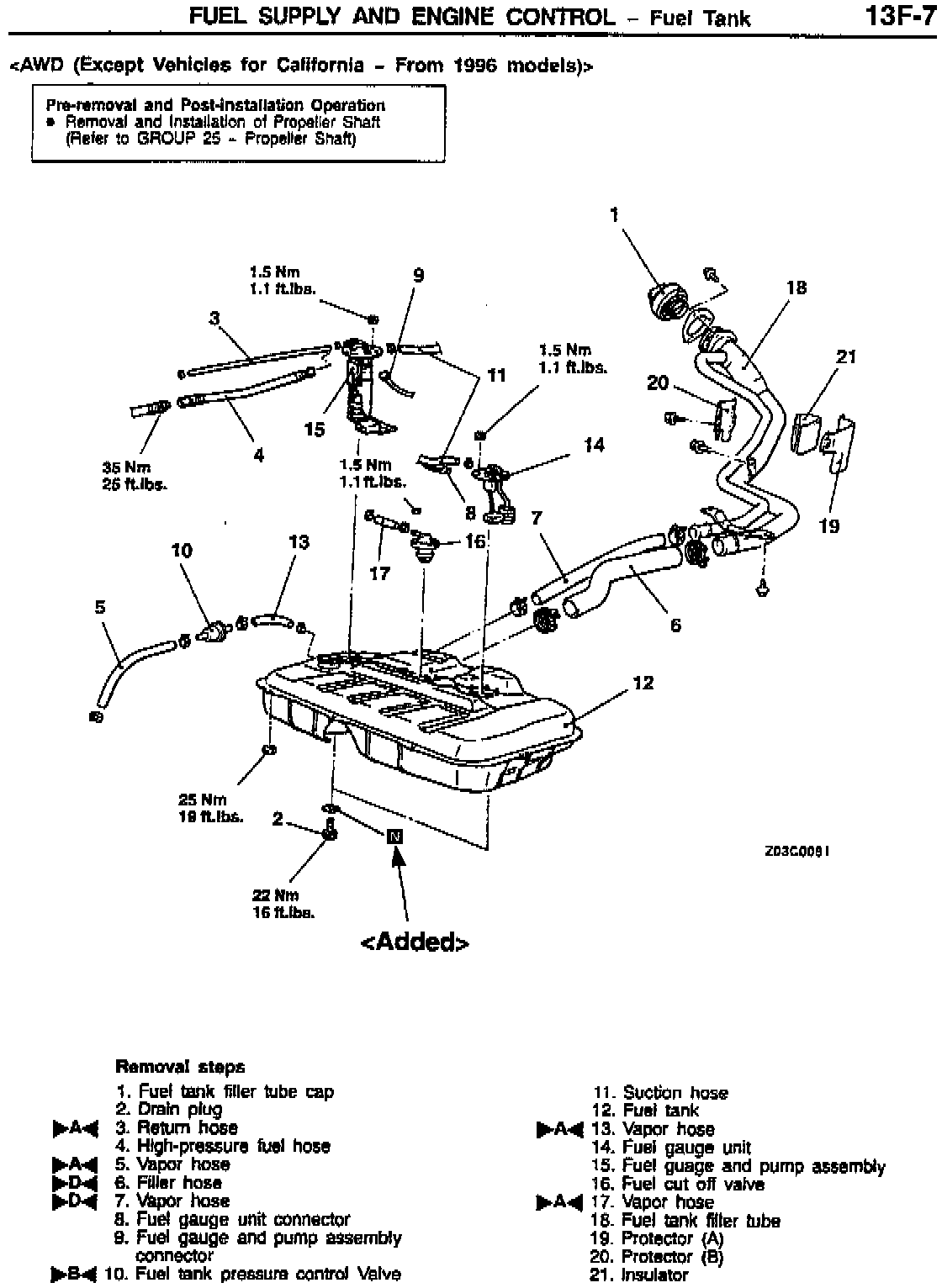

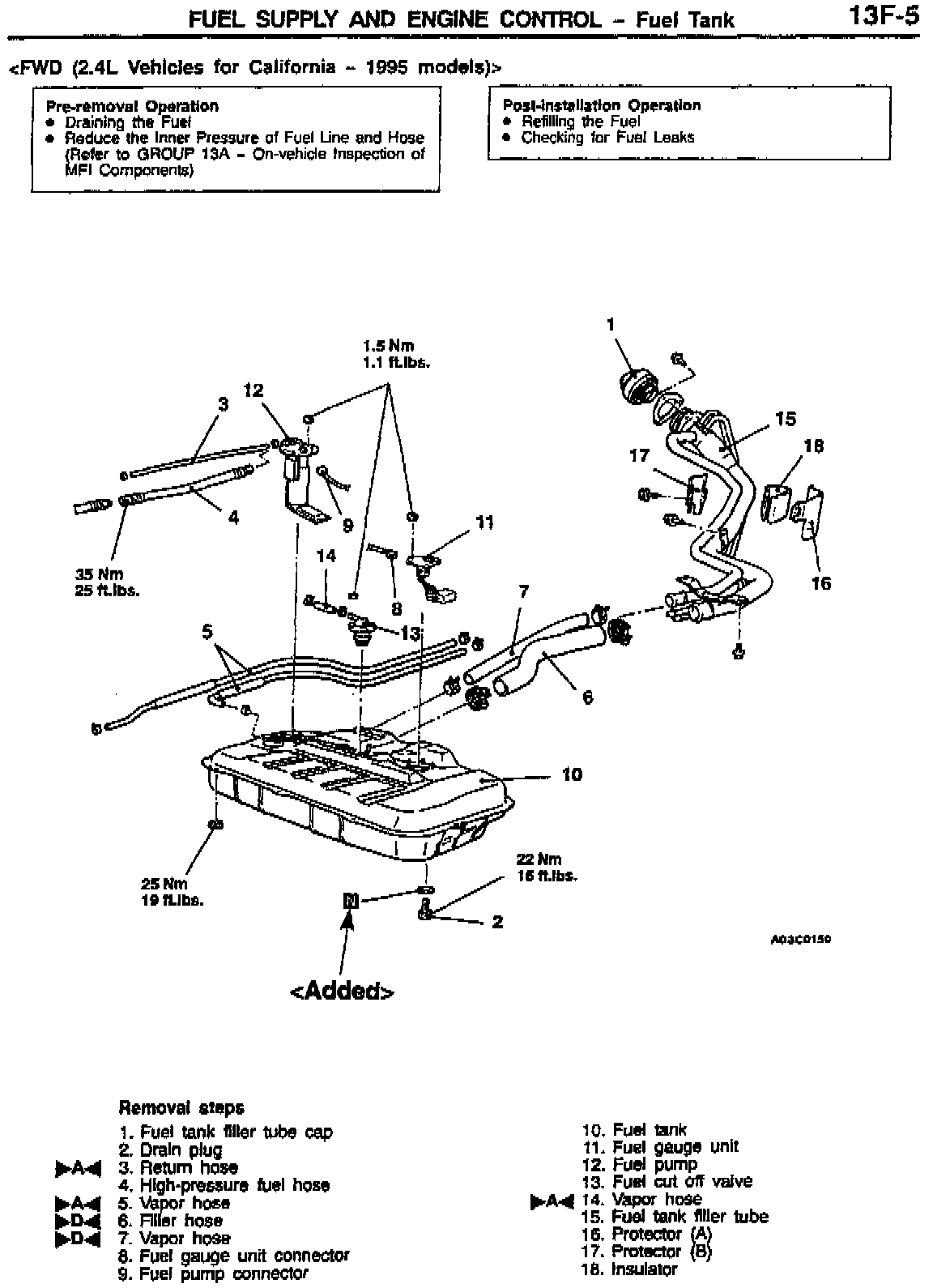

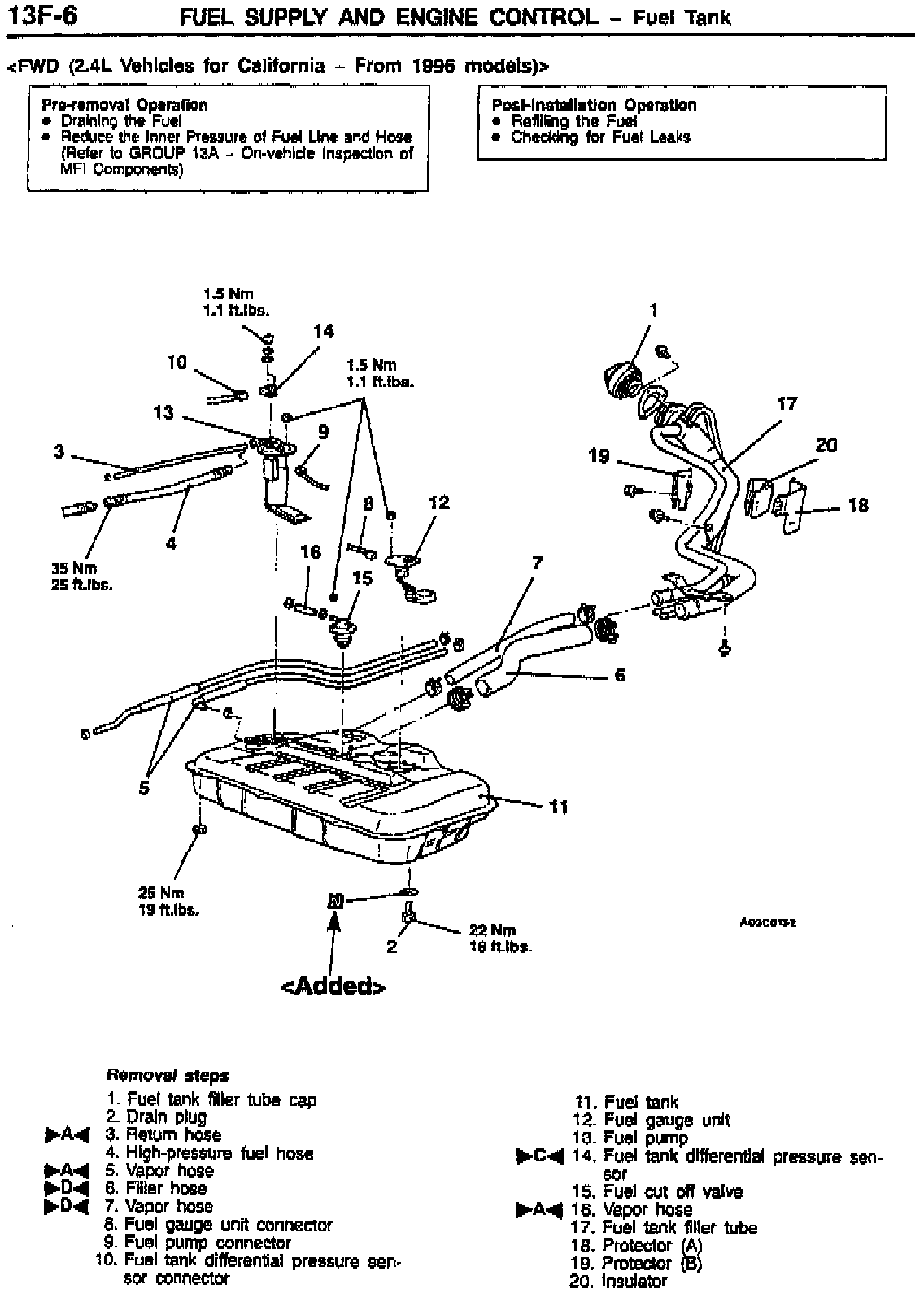

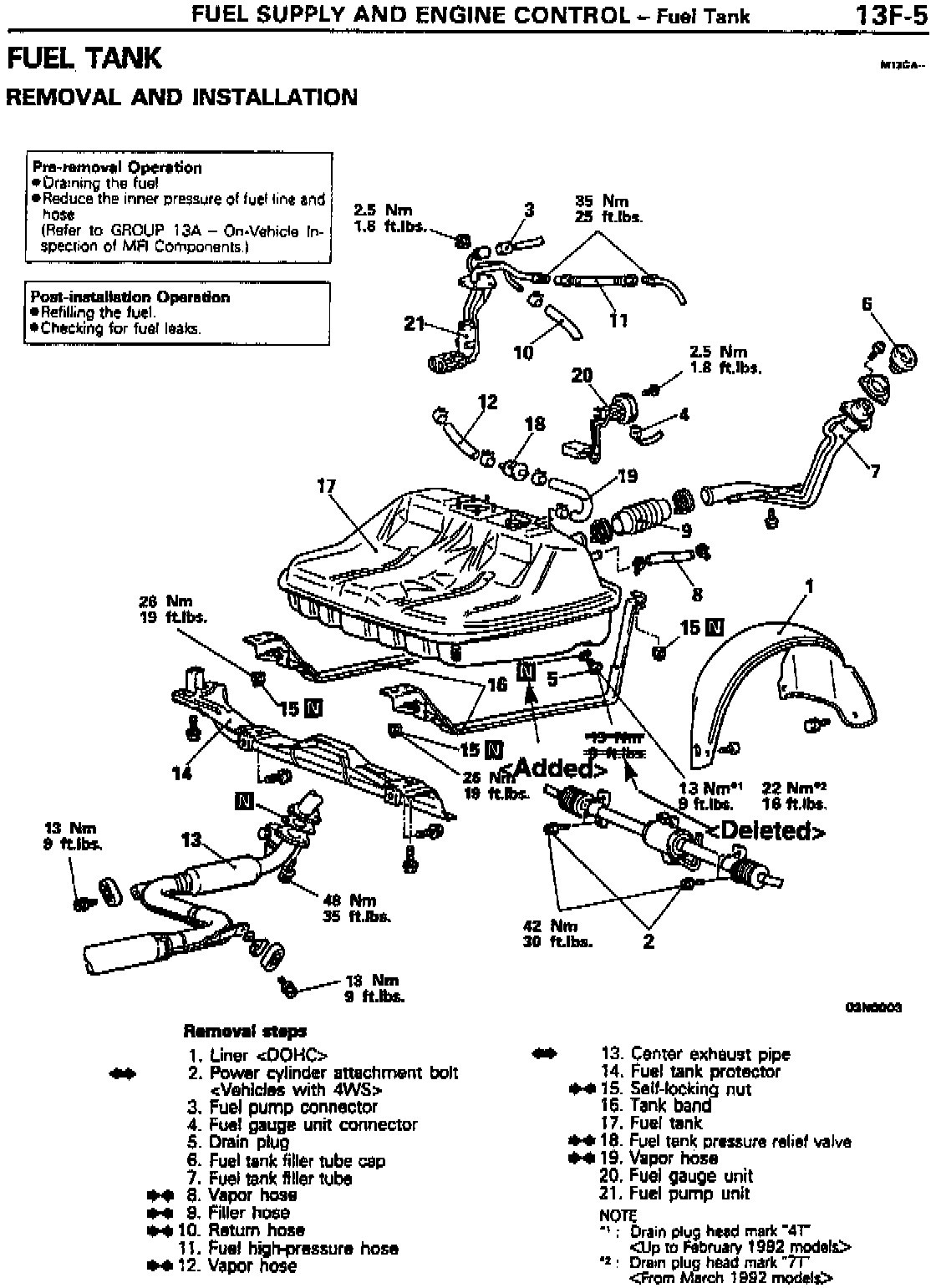

1992-96 3000GT Service Manual, Add the new drain plug packing and tightening torque information as shown.

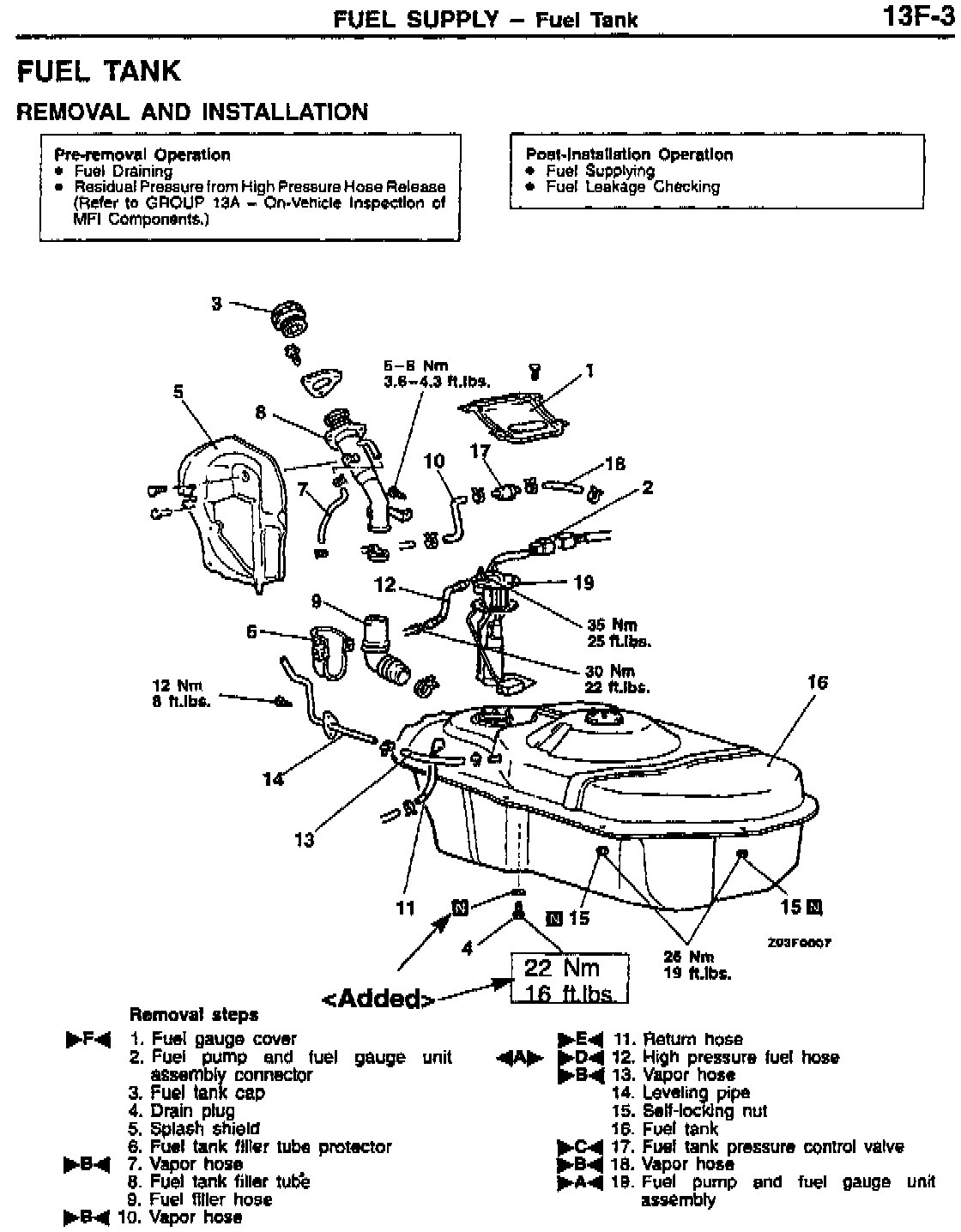

1992-96 Diamante Service Manual,Add the new drain plug packing and tightening torque information as shown.





1992-96 Expo/Expo LRV Service Manual, Add the new drain plug packing information as shown.





1992-96 Expo/Expo LRV Service Manual, Add the new drain plug packing information as shown.





1992-96 Expo/Expo LRV Service Manual, Add the new drain plug packing information as shown.





1992-96 Expo/Expo LRV Service Manual, Add the new drain plug packing information as shown.





1992-96 Expo/Expo LRV Service Manual, Add the new drain plug packing information as shown.
