Brake Booster - Push Rod Adjustment
NO.: TSB-97-35-003DATE: July, 1997
MODEL: See below
SUBJECT:
CLEARANCE BETWEEN BRAKE BOOSTER PUSH ROD & PRIMARY PISTON - SERVICE MANUAL REVISION
[TSB Revision TSB-97-35-003]
PURPOSE
A new special tool, MB991714 "Push Rod Adjusting Gauge" is now available for adjusting the clearance between the brake booster push rod and the primary piston. This bulletin contains instructions on how to use this special tool
In the affected service manuals, delete the brake booster push rod-to-master cylinder piston clearance specifications. Replace the "Clearance Between Brake Booster Push Rod and Primary Piston Adjustment" procedure with the procedure in this bulletin.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
1992-97 3000GT 1994-97 Galant
1992-96 Diamante 1993-97 Mirage
1995-97 Eclipse 1992-97 Montero
1997 Eclipse Spyder 1997 Montero Sport
1992-96 Expo/Expo LRV
AFFECTED SERVICE MANUALS
1992-96 3000GT, Volume 1, pages 35-3, 35-88, and 3589
1997 3000GT, Volume 1, pages 35-3, 35A-25, and 35A-26
1992-96 Diamante, Volume 1, pages 35-3, 35-63, and 35-64
1995 Eclipse, Volume 1, pages 35A-4 and 35A-26
1996 Eclipse, Volume 1, pages 35A-3 and 35A-24
1997 Eclipse/Eclipse Spyder, Volume 1, pages 35A-3, 35A-27, and 35A-28
1992-96 Expo/Expo LRV, Volume 1, pages 35-4, 35-94, and 35-95
1994-95 Galant, Volume 1, pages 35A-3 and 35A-22
1996 Galant, Volume 1, pages 35A-3, 35A-19, and 35A-20
1997 Galant, Volume 1, pages 35A-4, 35A-20, and 35A-21
1993-96 Mirage, Volume 1, pages 35-4, 35-61, and 35-62
1997 Mirage, Volume 1, pages 35A-4 and 35A-19
1992-95 Montero, Volume 1, pages 35A-3, 35A-20, and 35A-21
1996 Montero, Volume 1, pages 35A-3, 35A-21, and 35A-22
1997 Montero, Volume 1, pages 35A-3, 35A-21, and 35A-22
1997 Montero Sport, Volume 2, pages 35A-19 and 35A-38
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages to reference the following instructions:
CLEARANCE BETWEEN BRAKE BOOSTER PUSH ROD AND PRIMARY PISTON ADJUSTMENT

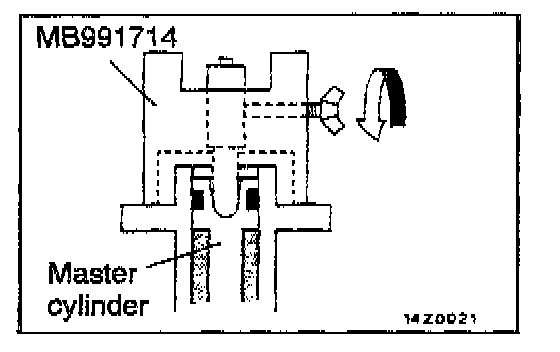

(1) Set the special tool to the master cylinder.
(2) Make sure that the shaft of the special tool makes a light contact with the master cylinder piston.
(3) Turn the wing bolt to secure the shaft.

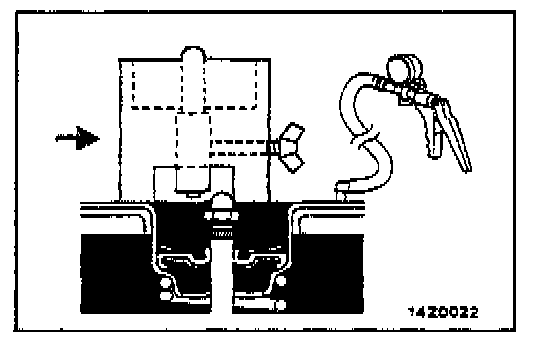

(4) Using a hand vacuum pump, apply vacuum [-66.7 kPa (about 20 in. Hg)] to the brake booster.
(5) Position the special tool slightly off-center of the brake booster push rod as shown.

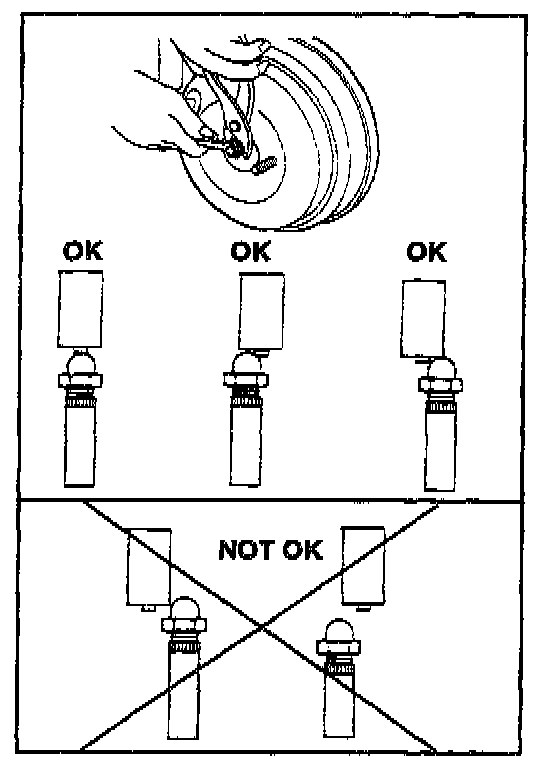

(6) Slide the special tool toward the center of the brake booster. Verify that the projection of the shaft comes into contact with the end of the push rod of the brake booster as shown.
If the push rod contacts any portion of the shaft other than its projection, shorten the push rod.
If the push rod does not contact the shaft, lengthen the push rod.
