Front Suspension

1. Remove front exhaust pipe, then the front lower cover.

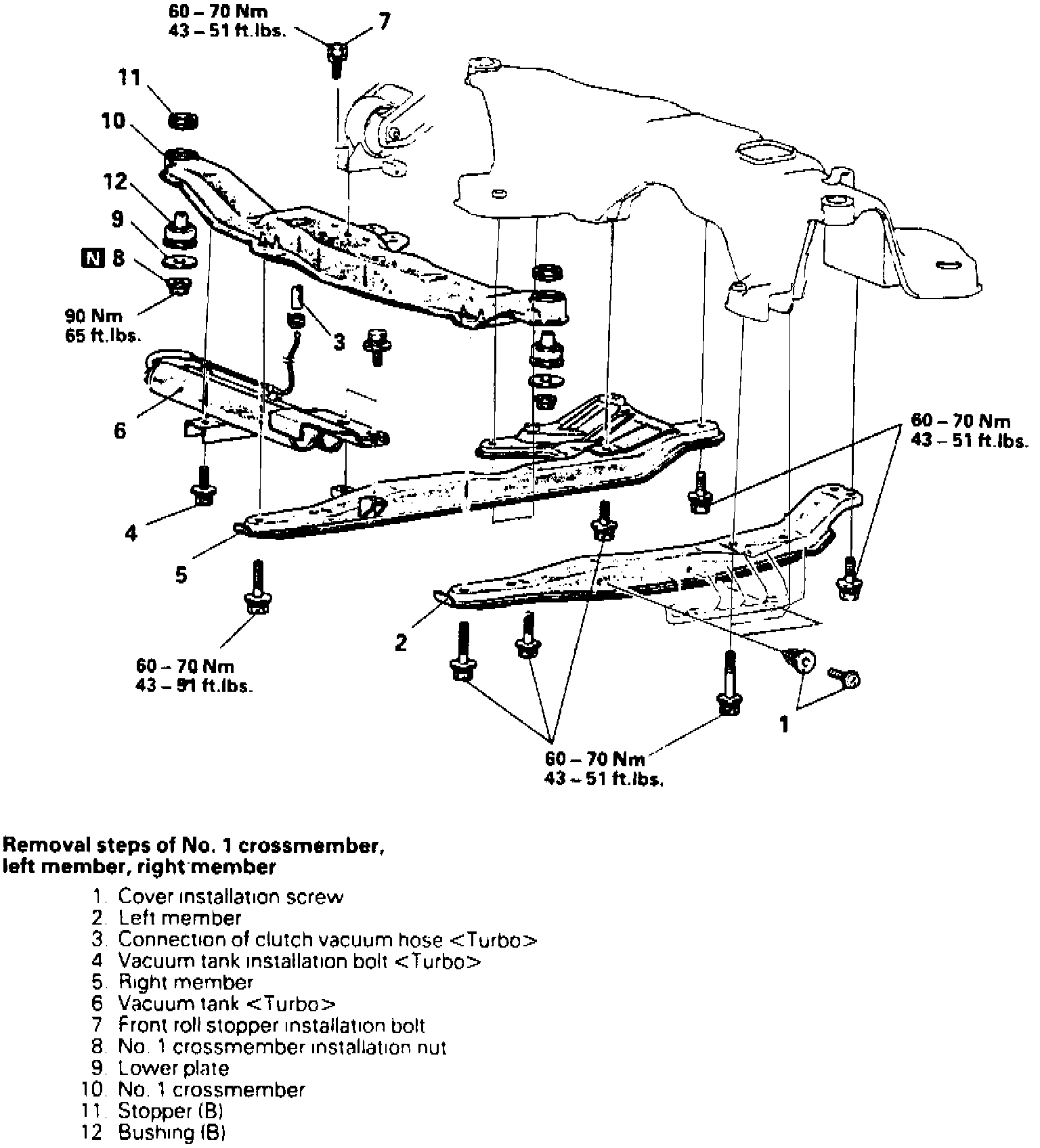

Fig. 33 Right & Left Member Replacement:

2. Remove right and left members in numbered sequence as shown, Fig. 33.

Fig. 34 Stabilizer Bar Replacement:

3. Replace stabilizer bar in numbered sequence shown, Fig. 34.
4. Reverse procedure to install, noting the following:

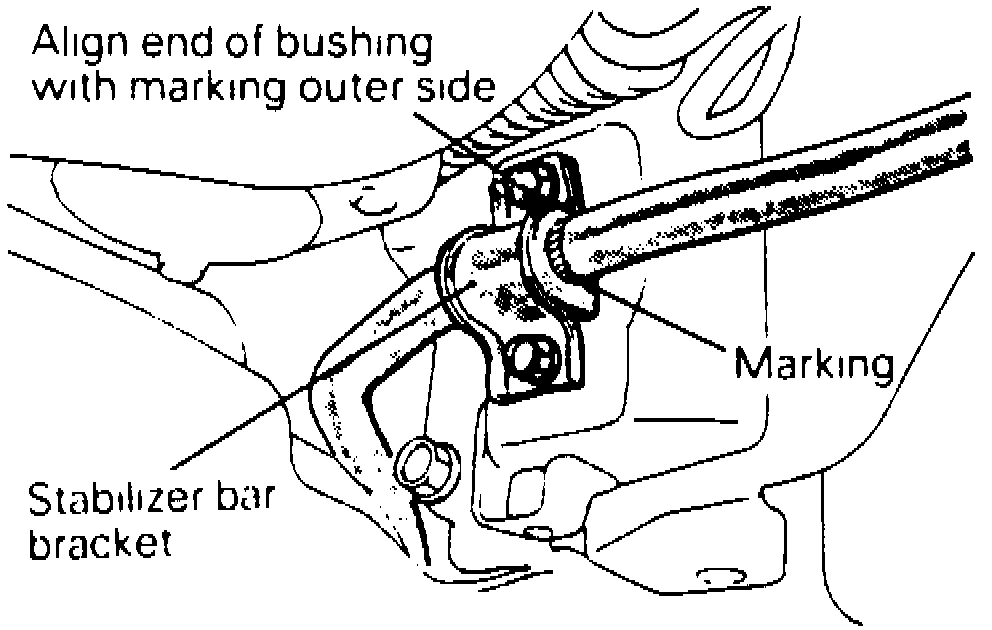

Fig. 35 Stabilizer Bar Bracket Position:

a. Align left stabilizer bar bushing with marking on bar and temporarily tighten stabilizer bar bracket, Fig. 35.
b. Mount stabilizer bar right bracket and temporarily tighten.
c. Temporarily install both ends of the stabilizer bar on the links, then tighten stabilizer bar mounting brackets bolts.
d. Bleed power steering system and align front suspension. Refer to Power Steering.
