Suspension: Service and Repair

1. Remove shock absorber cover from luggage compartment.
2. Remove center exhaust pipe and main muffler.

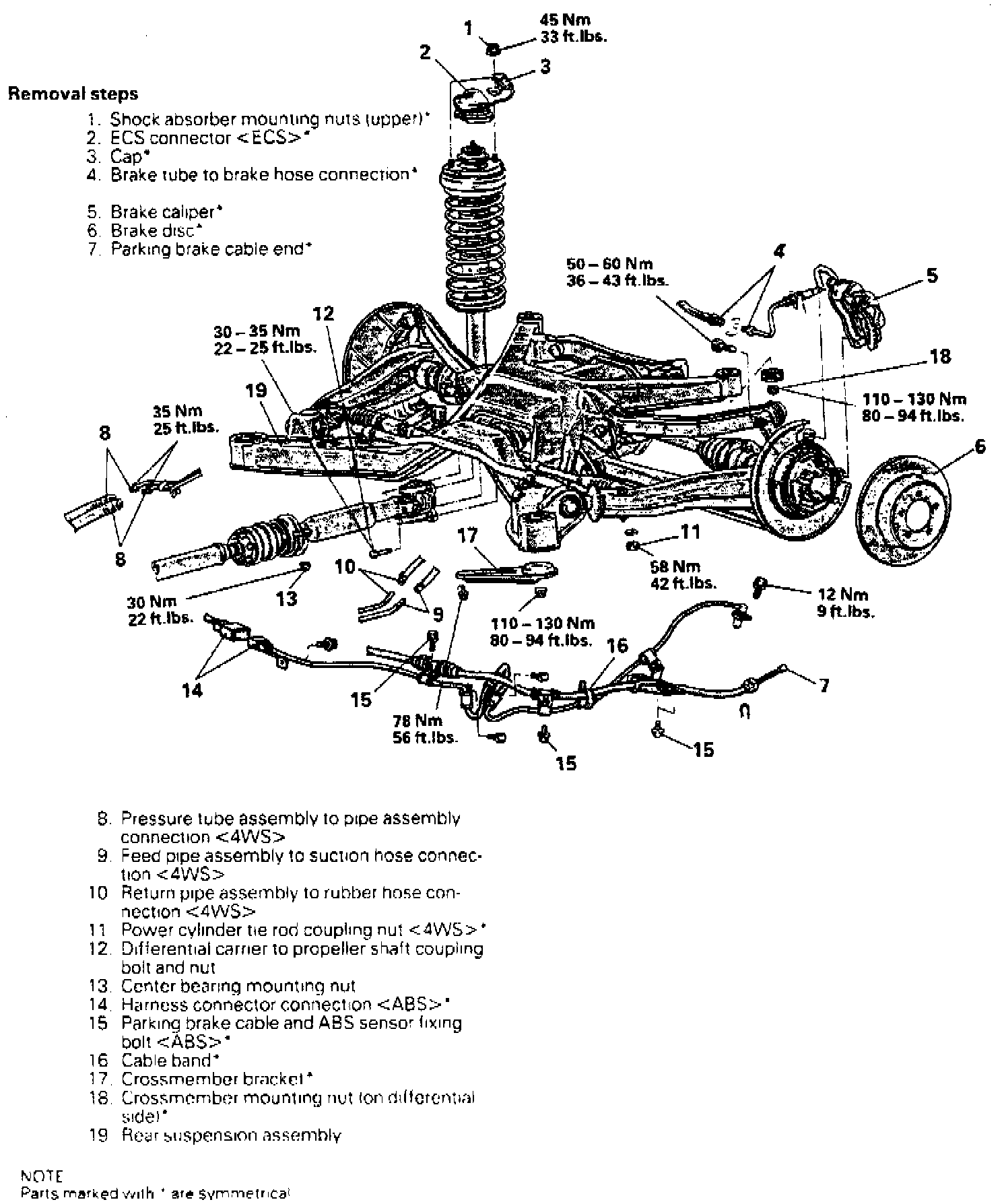

Fig. 15 Rear Suspension Assembly Replacement:

3. Remove rear suspension in numbered sequence as shown, Fig. 15, noting the following:
a. Before removing crossmember bracket, support differential case with a suitable transmission jack.
b. Remove crossmember mounting nuts and bolts.
c. Lower rear suspension using two assistants to help support suspension on transmission stand. Rear suspension is very heavy and damage or personal injury could occur if rear suspension is not supported correctly.
4. Reverse procedure to install, noting the following:
a. Bleed power steering system as outlined under Steering.
b. Verify rear wheel alignment and operation of parking brake.
