Symptom Related Diagnostic Procedures

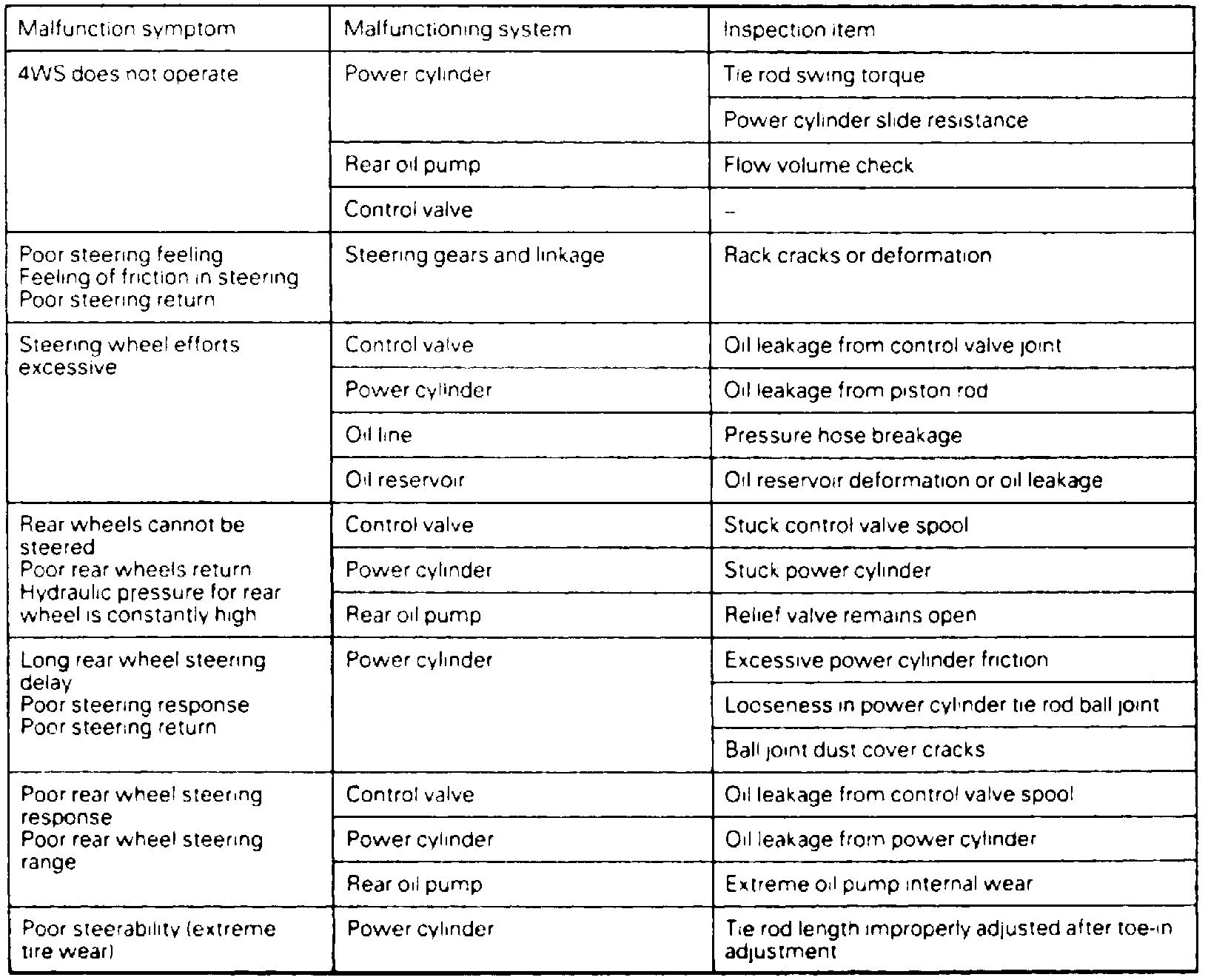

Fig. 1:





Refer to Fig. 1 when troubleshooting the Four Wheel Steering (4WS) system.
