Home >> Mitsubishi >> 1995 >> 3000GT Convertible AWD V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Service and Repair

Steering Column: Service and Repair

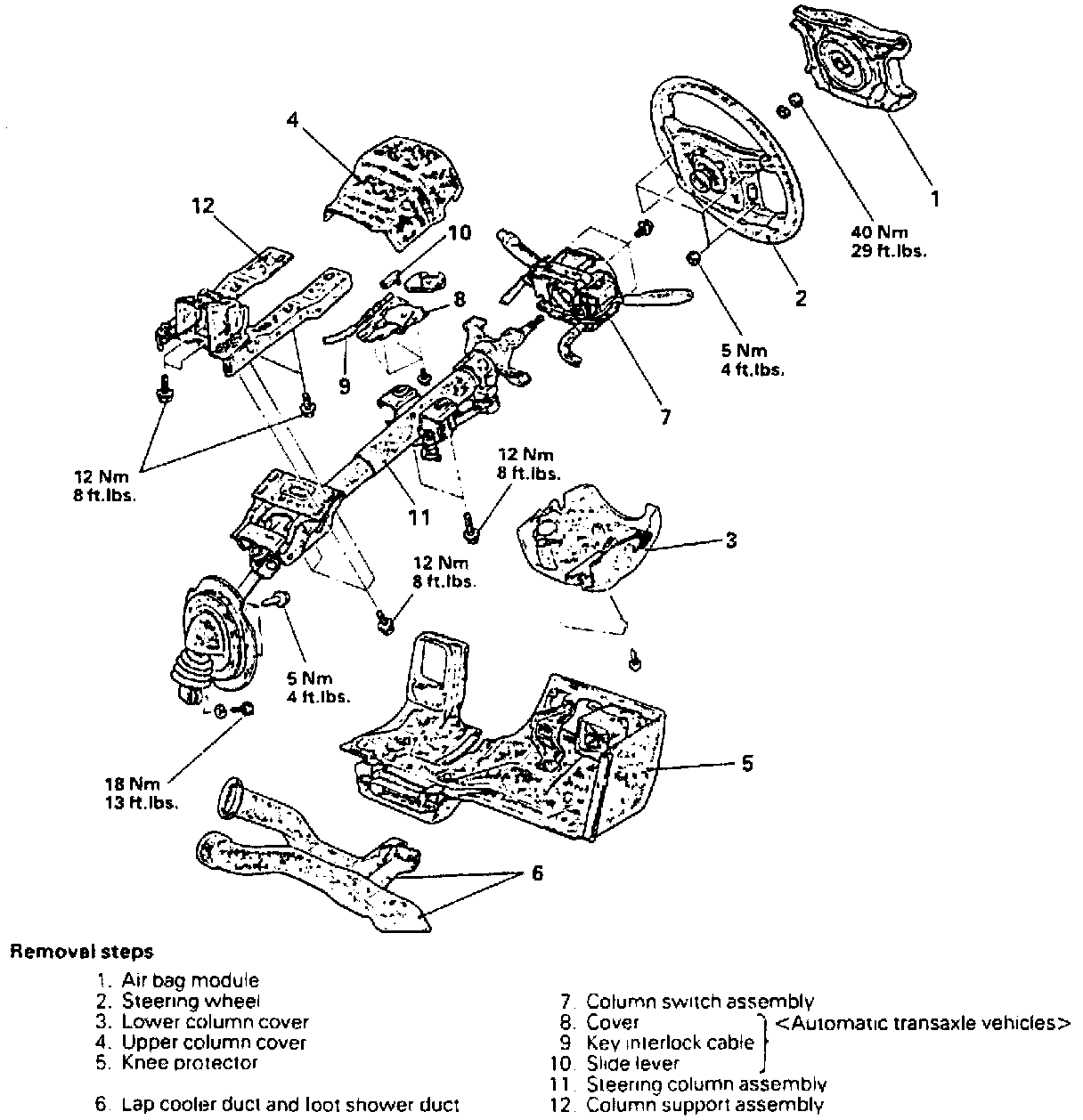

Fig. 12 Steering Column & Shaft Assembly:




Refer to Fig. 12 for steering column and steering shaft service.
