Rear Wheel Steering Actuator: Service and Repair

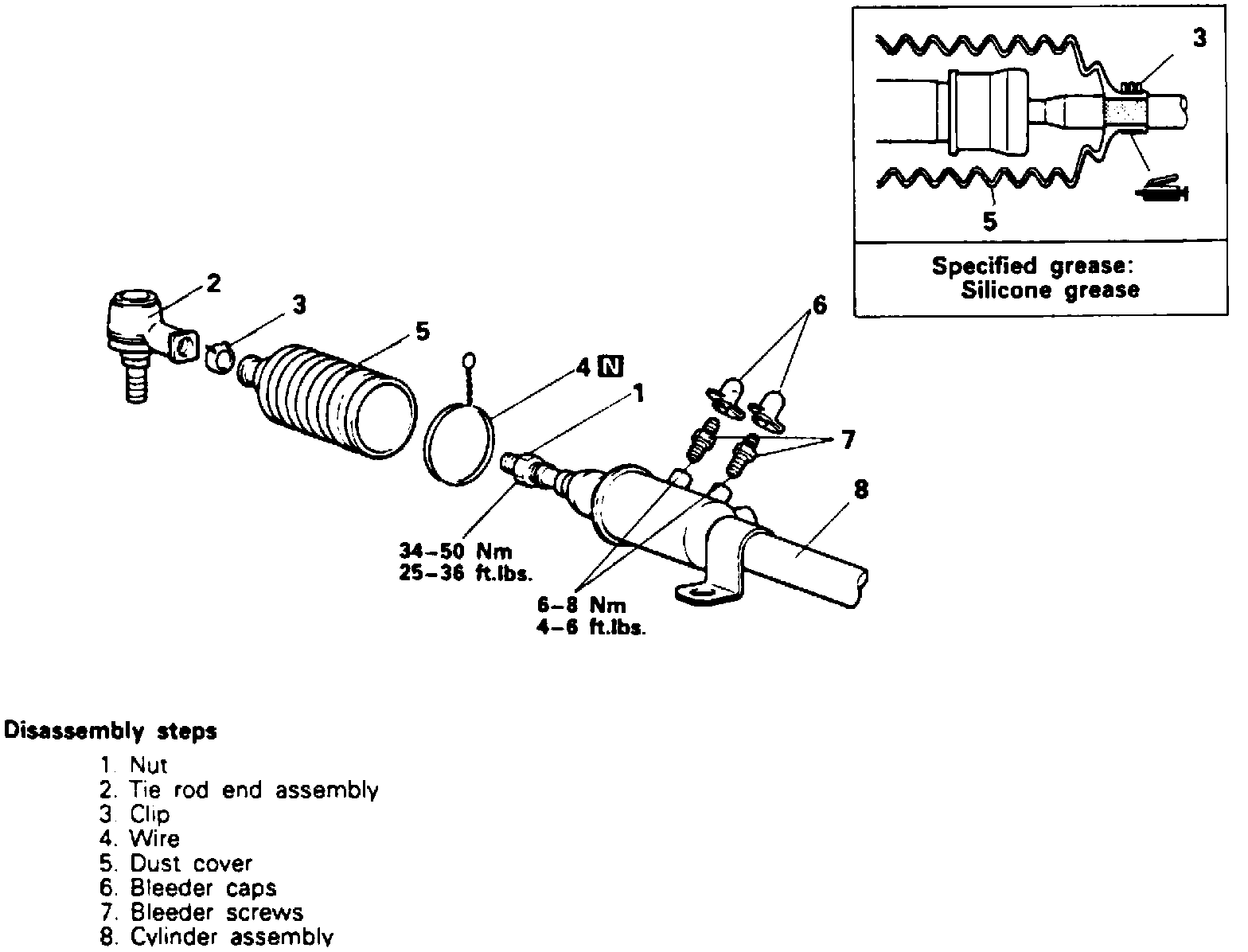

Fig. 6 Rear Power Cylinder Service:

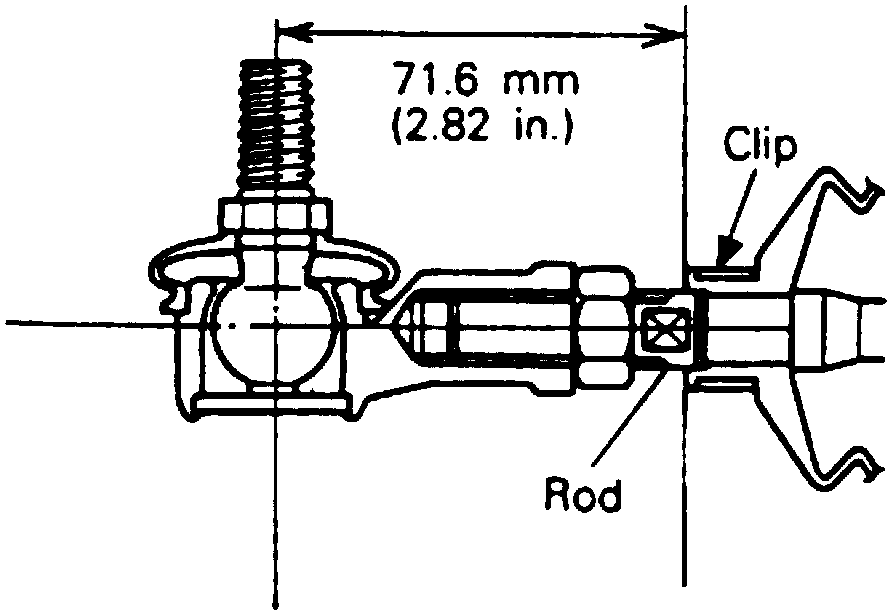

Fig. 8 Tie Rod Installation:

Service rear power cylinder (steering gear) in numbered sequence shown in Fig. 6, positioning tie rod end as shown in Fig. 8.
