Rear

1. Drain power steering fluid into an appropriate container.
2. Remove main muffler assembly.

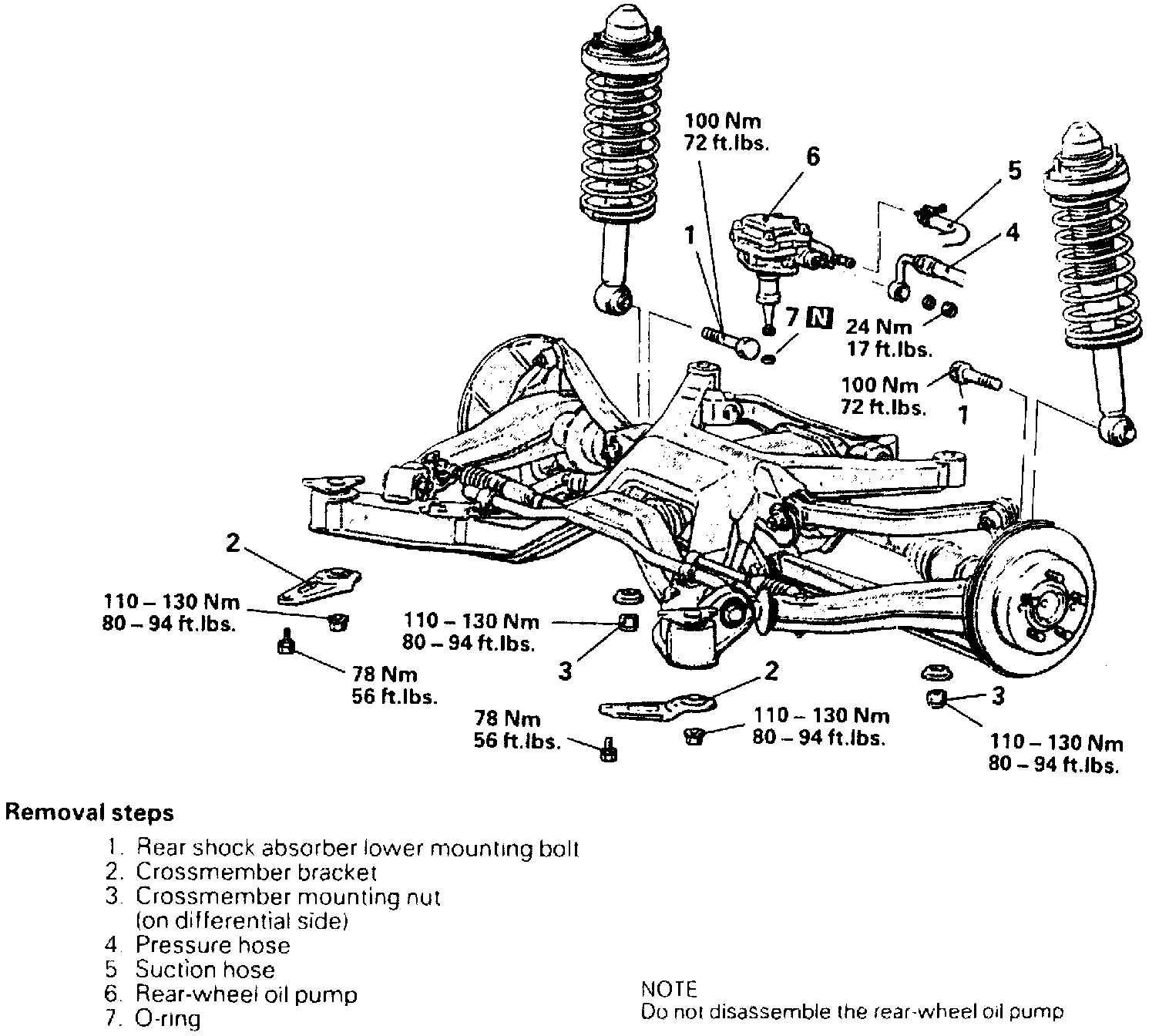

Fig. 44 Rear Power Steering Pump Replacement:

3. Remove rear power steering pump in numbered sequence as shown, Fig. 44, noting the following:
a. Support differential case using a suitable transmission jack, then remove crossmember bracket and crossmember mounting nuts on differential side.
b. Slightly lower crossmember assembly.
4. Reverse procedure to install, noting the following:
a. Bleed power steering system as outlined under Power Steering.
b. Bleed the four wheel steering (4WS) system as outlined under Power Steering.
