Starter Relay: Testing and Inspection

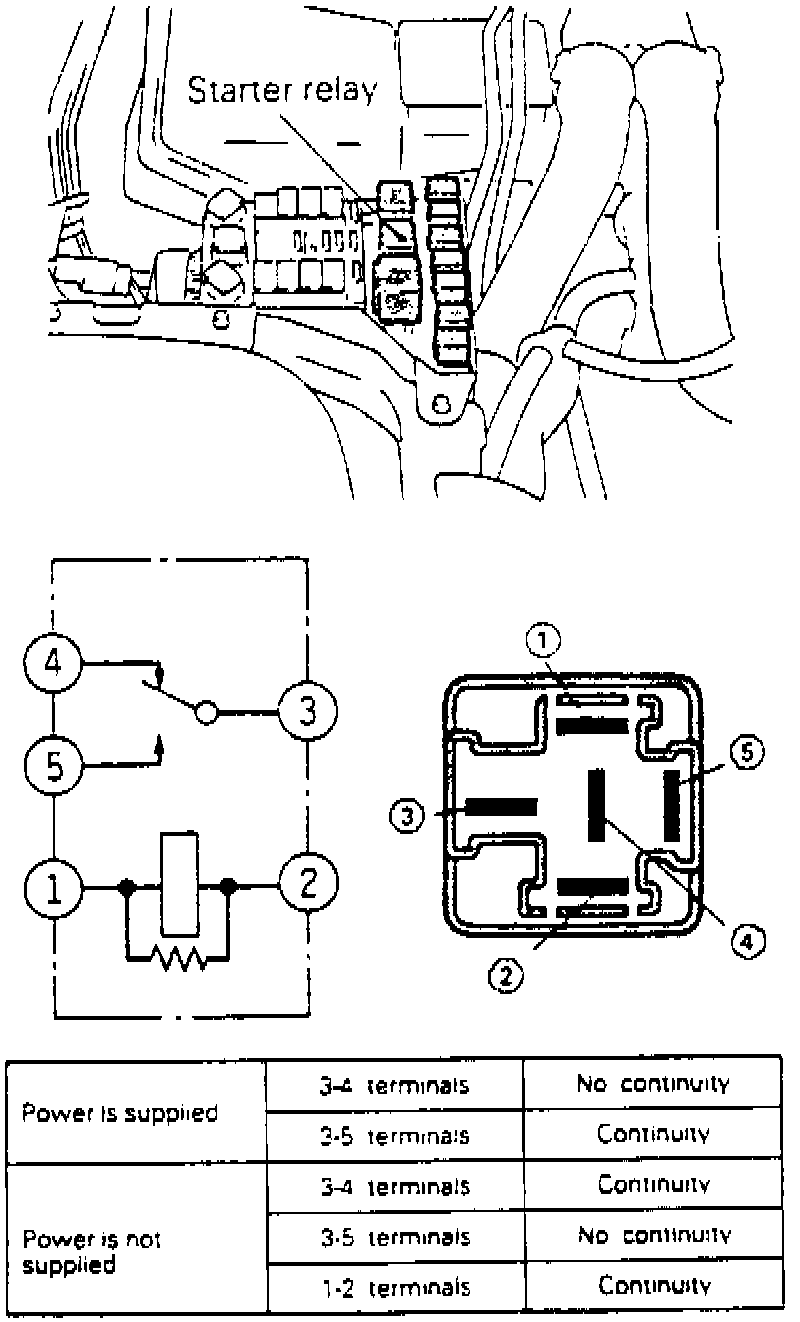

Fig. 10 Starter Relay Test:




For relay testing, refer to Fig. 10.
