Postive Rectifier Test
Positive Rectifier Test:

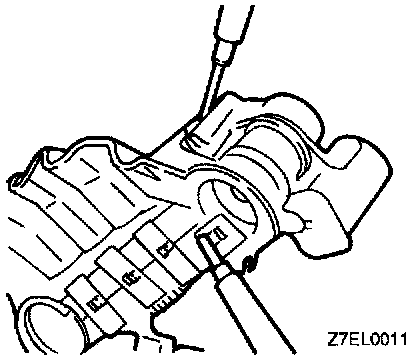

Ensure continuity exists in only one direction between positive rectifier and stator coil lead, Fig. 5. If continuity exists in both directions, diode is shorted and rectifier must be replaced.
