Negative Rectifier Test
Negative Rectifier Test:

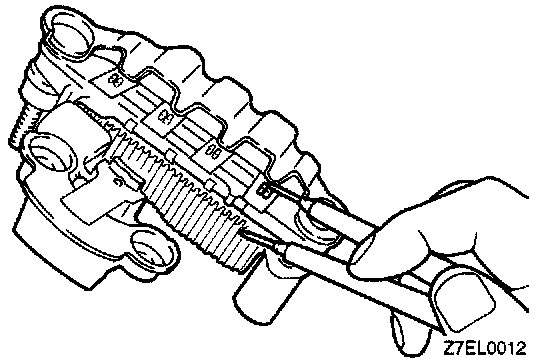

Ensure continuity exists in only one direction between negative rectifier and stator coil lead, Fig. 6. If continuity exists in both directions, diode is shorted and rectifier must be replaced.
Ensure continuity exists in only one direction between negative rectifier and stator coil lead, Fig. 6. If continuity exists in both directions, diode is shorted and rectifier must be replaced.
