Belt Tension Data

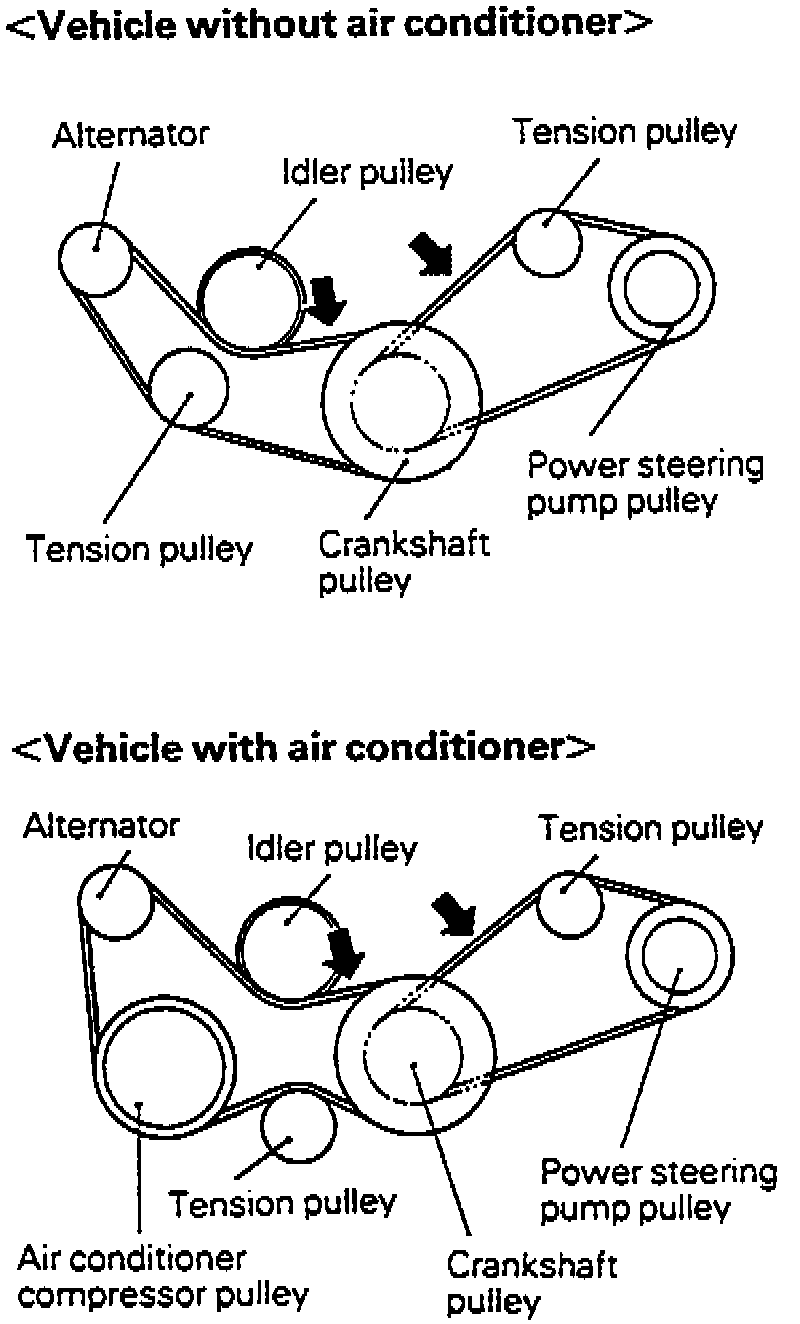

Fig. 43 Drive Belt Adjustment:

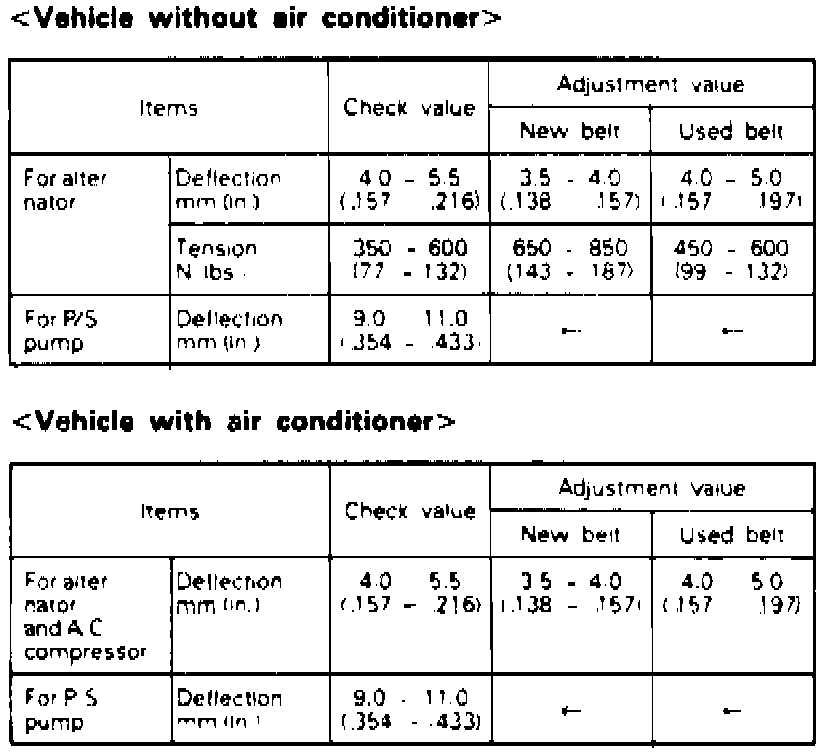

Fig. 44 Drive Belt Tension Data:
Adjust belts by applying 22 lbs. of force to belt midway between pulleys as shown, Fig. 43, ensuring deflection is as specified in Fig. 44.
Adjust belts by applying 22 lbs. of force to belt midway between pulleys as shown, Fig. 43, ensuring deflection is as specified in Fig. 44.
