Impact Sensor: Service and Repair

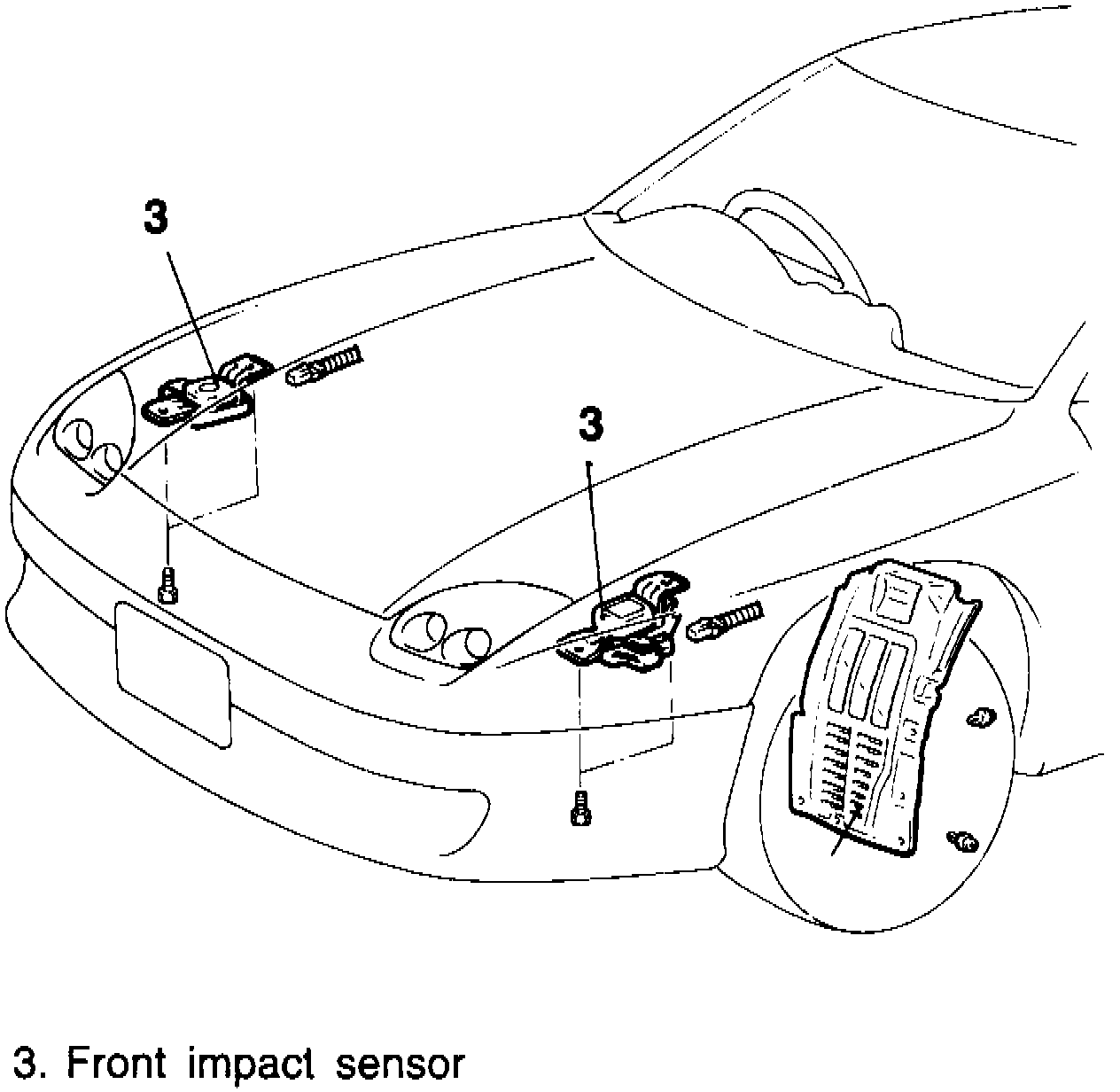

Fig. 43 Front Sensor Replacement:

1. Remove shield, Fig. 43.
2. Remove front impact sensor.
3. Reverse procedure to install, noting following:
a. Install sensor with arrow facing front of vehicle.
b. Bend wiring harness slightly to remove slack, and clip securely.
