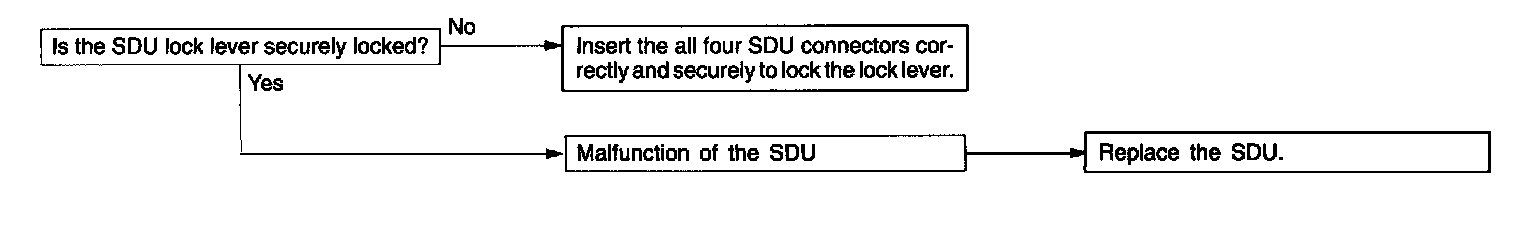

Test 9 - When DTC No. 34 Is Displayed

TEST 9 - WHEN DIAGNOSTIC TROUBLE CODE No. 34 IS DISPLAYED

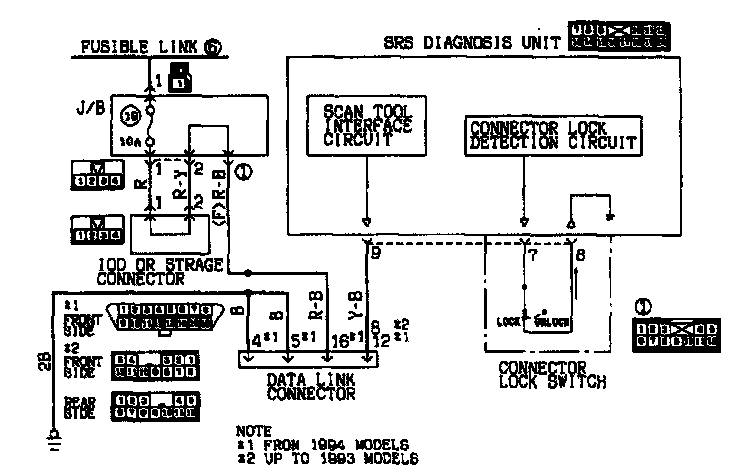

WIRING DIAGRAM





SDU CONNECTOR

PROCEDURES





(1) Turn the ignition key to the "LOCK' position, disconnect the negative battery cable and tape the terminal.

Caution: Wait at least 60 seconds after disconnecting the battery cable before doing any further work. The SRS system is designed to retain enough voltage to deploy the air bag even after the battery has been disconnected. Serious injury may result from unintended air bag deployment if work is done on the SRS system immediately after the battery cable is disconnected.

(2) Remove the floor console.





NOTE - IMPORTANT:
(2) After repairing the SRS, reconnect the battery cable, erase the diagnostic trouble code memory from the scan tool (1992 model) and check the SRS warning light operation to verify the system functions properly. Refer to Test 1. Test 1 - SRS Warning Light Does Not Extinguish
(2) SDU SRS Diagnosis Unit
