SRS Diagnostic Procedures - Initial Steps
SRS DIAGNOSTIC PROCEDURES - INITIAL STEPSFollow These Steps When Beginning Any SRS Service:

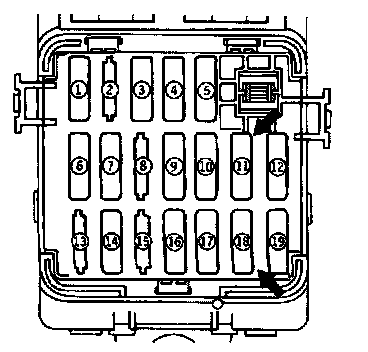

1. Check the SRS fuses (multipurpose fuses No. 11 and No. 18). If either is loose, tighten it; if damaged or blown, replace it.

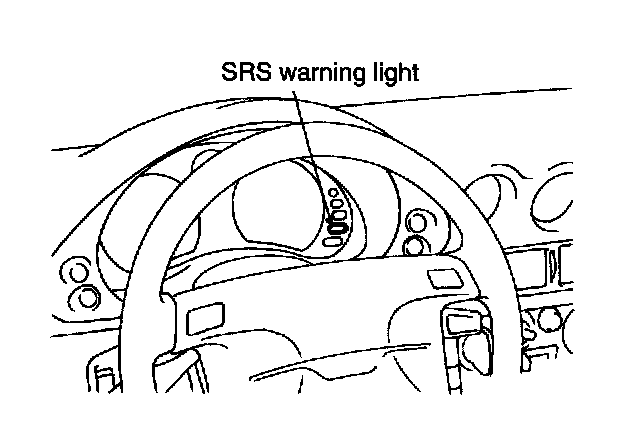

2. After performing step 1, turn the ignition key to the "ON" position. Does "SRS" warning light illuminate for about 7 seconds and then turn OFF? If yes, SRS system is functioning properly.
NOTE:
1. From 1993 model, the SRS warning light illuminates also when the battery voltage drops. In that case, the SRS warning light goes out if the battery voltage returns to the normal level.
2. On 1992 model, if the vehicle has a discharged battery or battery power supply (multipurpose fuses No. 11 or No. 18) is disconnected with the ignition key in the "ON" position, the SRS warning light will continue to illuminate even after the battery is recharged or the fuses are replaced in their original positions. In this case, the SRS warning light can be extinguished by turning the ignition switch ON and OFF 10 times.
