Air Bag - Passenger

Refer to Technician Safety Information for air bag arming and disarming before preceding with following procedures.

1. Remove glove compartment.
2. Remove cross pipe cover.

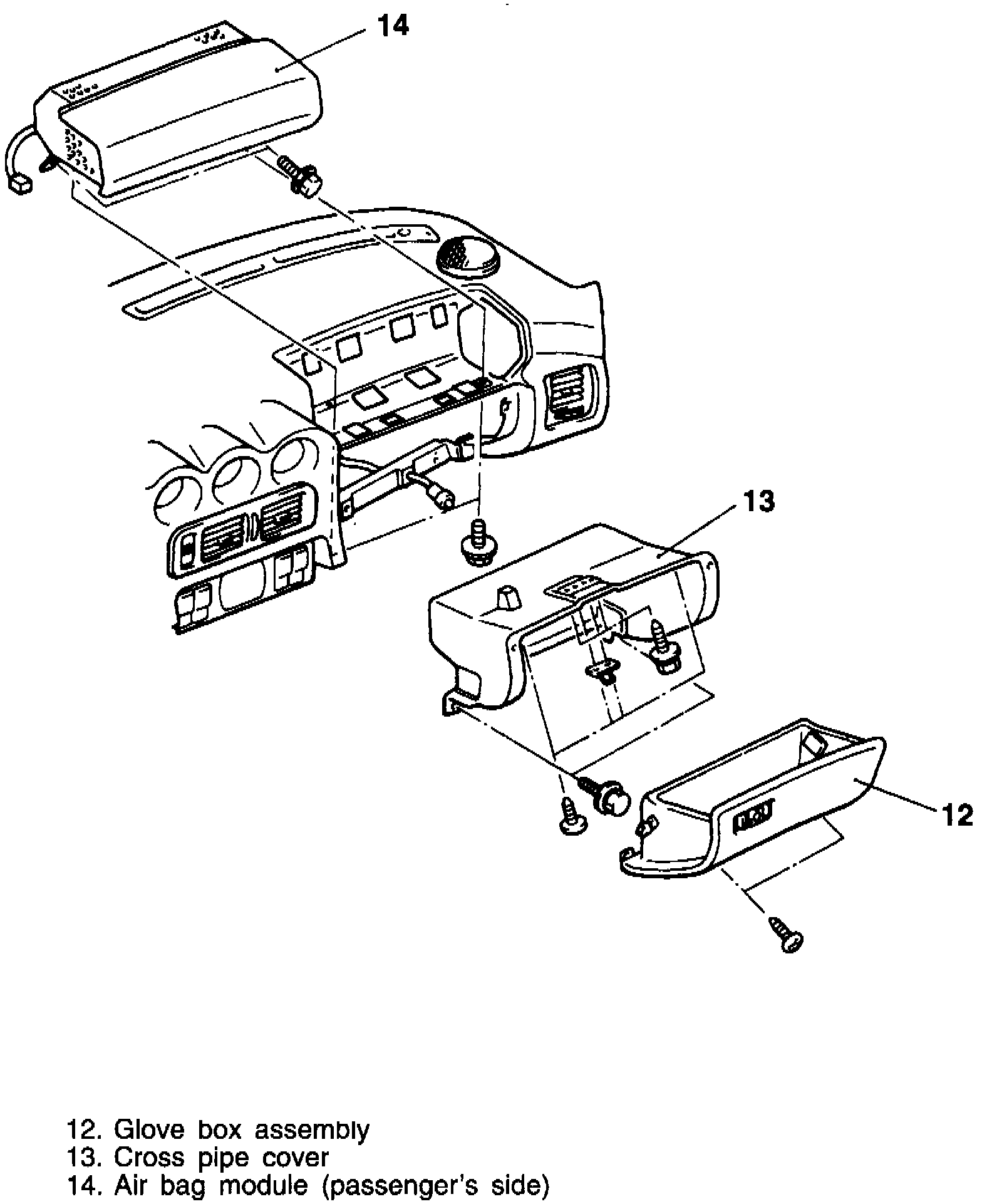

Fig. 30 Passenger Air Bag Replacement:

3. Remove air bag module, Fig. 30.
4. Reverse procedure to install.
