SRS - Diagnostic Trouble Code (DTC) Erasure
No.: TSB-95-52B-002DATE: November, 1995
MODEL: All models with SRS
DIAGNOSTIC TROUBLE CODE (DTC) ERASURE
VEHICLES AFFECTED
All models equipped with Supplemental Restraint System (SRS)
BACKGROUND INFORMATION

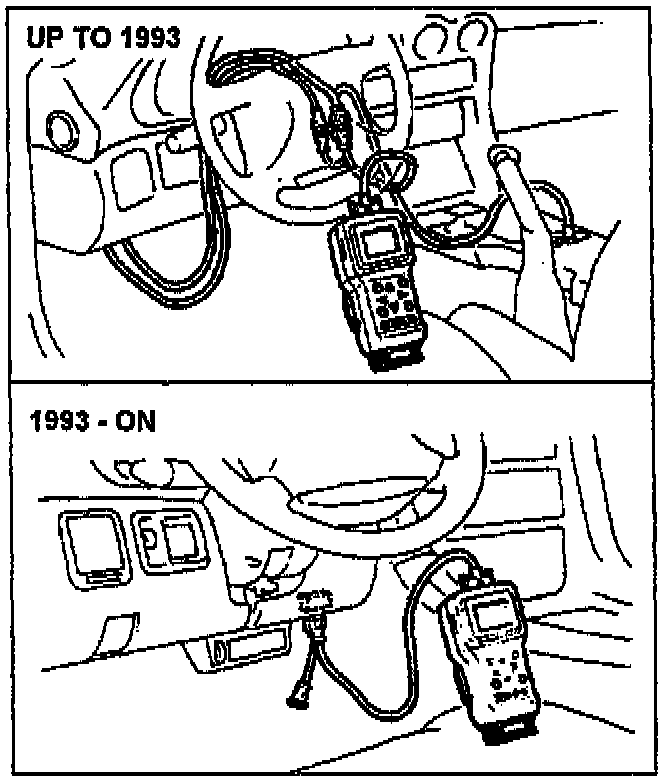

DTCs set in the SRS diagnosis unit remain in memory until they are erased with the MUT-II scan tool. It is important for all SRS DTCs to be erased after troubleshooting and repairs. In the event of an accident involving air bag deployment, only the DTCs pertaining to the accident should be in the SRS diagnosis unit memory.
Disconnecting the battery cables will not erase SRS DTCs.
After completing SRS troubleshooting and repairs as described in section 52B of the appropriate service manual, erase all SRS DTCs with the MUT-II scan tool.
WARRANTY INFORMATION
Use standard warranty procedures. Diagnosis time is included in component replacement time in the MMSA Labor Operation Time Schedule.
