Without Cruise Control

Accelerator Cable Adjustment Bolt Locations:

1. Turn the ignition on (without starting the engine) for approx. 15 seconds minimum.
2. Loosen the adjusting bolts.
3. Adjust the accelerator cable free play.

Clearance:
Manual Transmission: 1 - 2 mm (0.04 - 0.08 in.)
Automatic Transmission: 3 - 5 mm (0.12 - 0.20 in.)

4. Tighten the adjusting bolts.
5. Confirm that the throttle valve fully opens and closes by operating the accelerator pedal.

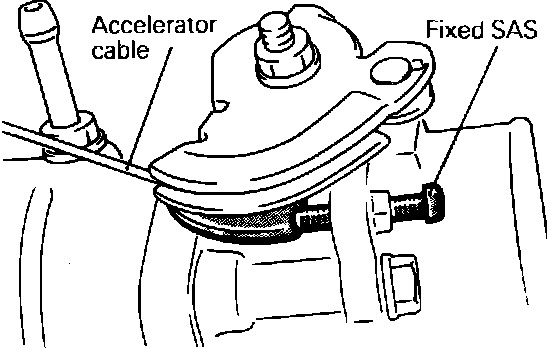

Accelerator Cable Attachment Point, Throttle End:

6. Confirm that the throttle lever stopper touches the idle position switch.
