With Cruise Control

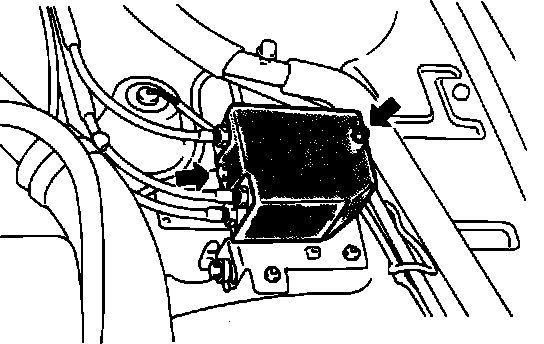

Cruise Control Actuator Cover:

1. Remove the cruise control actuator cover.

Accelerator Cable And Pedal Assembly (W/ Cruise Control):

2. Loosen the adjusting nuts A, B, and C.

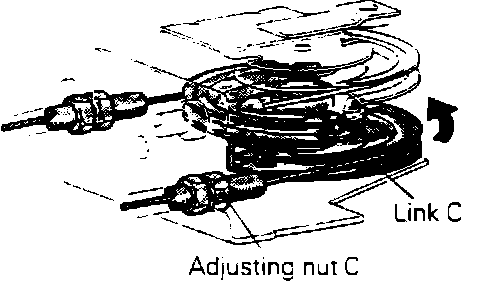

Cable "C" (Accelerator) Adjustment Point:

3. Adjust accelerator cable A. With the intermediate link C of the actuator held against the stopper (in the direction indicated), turn the adjusting nut to remove slack. At the point that the cable becomes tight, back off the nut 2 turns and secure with the lock nut.

Inner Cable Free play: 2 - 3 mm (0.08 - 0.12 in)

4. Tighten the lock nut.

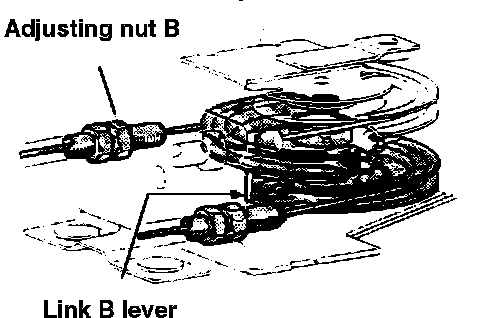

Cable "B" (Throttle) Adjustment Point:

5. Next, adjust throttle cable B. Turn adjusting nut B to remove slack. At the point that the cable becomes tight, back off the nut approx. one turn and secure with the lock nut.

Inner Cable Free Play: 1 - 2 mm (0.04 - 0.08 in)

6. Tighten the lock nut.

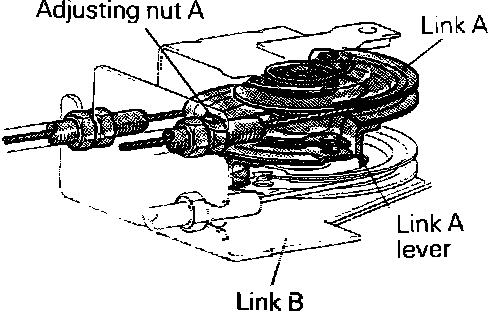

Cable "A" (Cruise Control) Adjustment Point:

7. To complete the adjustment, adjust the cruise control cable A. Turn adjusting nut A to remove slack. At the point that the cable becomes tight, back off the nut approx. one turn and secure with the lock nut.

Inner Cable Free Play: 1 - 2 mm (0.04 - 0.08 in)

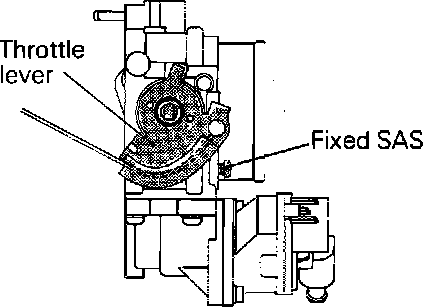

Accelerator Cable, Throttle Body End:

8. Confirm that the throttle lever stopper touches the idle position switch.
9. After adjustment confirm that the throttle valve fully opens and closes by operating the accelerator pedal.
