Intake Air Plenum: Service and Repair

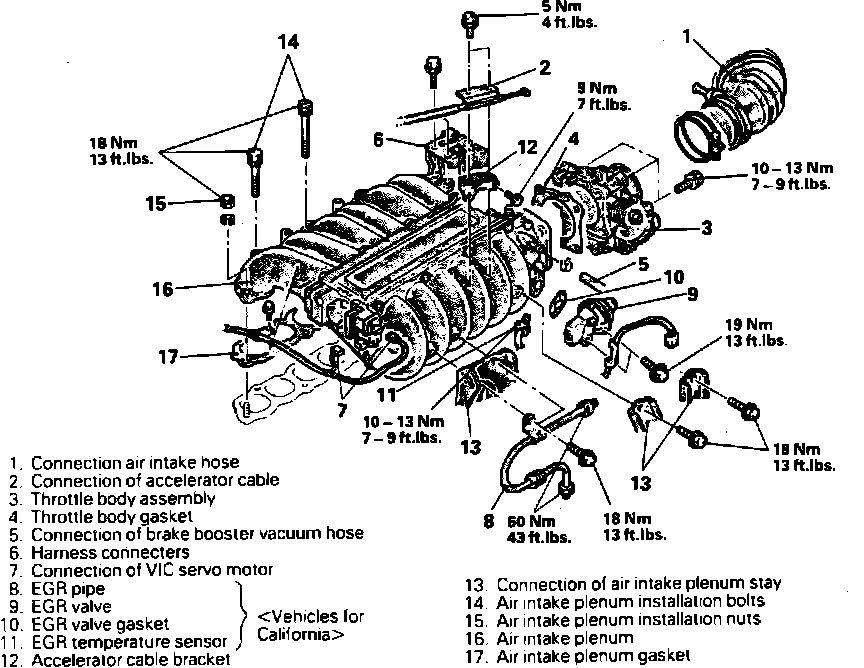

Fig. 12 Intake Air Plenum Replacement. DOHC Turbocharged:

1. Remove Intake Air Plenum in sequence shown in Fig. 12.

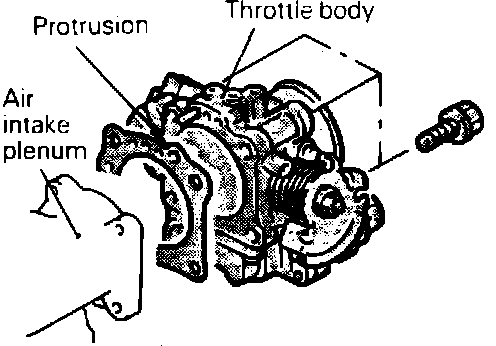

Fig. 13 Installing Throttle Body Gasket:

2. Install Intake Air Plenum in reverse sequence shown in Fig. 12, noting the following:
a. Install Throttle Body gasket with protrusion positioned as shown, Fig. 13.
