EGR & EVAP Purge Solenoid - Locator Revisions

NO: TSB-97-13-009
DATE: May, 1997
MODEL: 1991-97 3000GT

SUBJECT:
EGR AND PURGE SOLENOID LOCATIONS - SERVICE MANUAL REVISION

[TSB Revision TSB-97-13-009]

PURPOSE
The locations of the EGR control solenoid valve and purge control solenoid valve are incorrectly shown on the affected service manual pages. This bulletin contains the correct locations of these items.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES
1991-97 3000GT

AFFECTED SERVICE MANUALS
^ 1997 3000GT, Volume 1, pages 13A-138, 13A-187, 13A-188, 17-44, 17-52, 17-55

^ 1992-1996 3000GT, Volume 1, pages 13A-63, 13A-64, 13A-162, 13A-164, 13A-191, 13A-268, 13A-269

^ 1991 3000GT Volume 1, pages 13-39, 13-119, 13-121, 17-6, 17-10, 17-11, 17-13

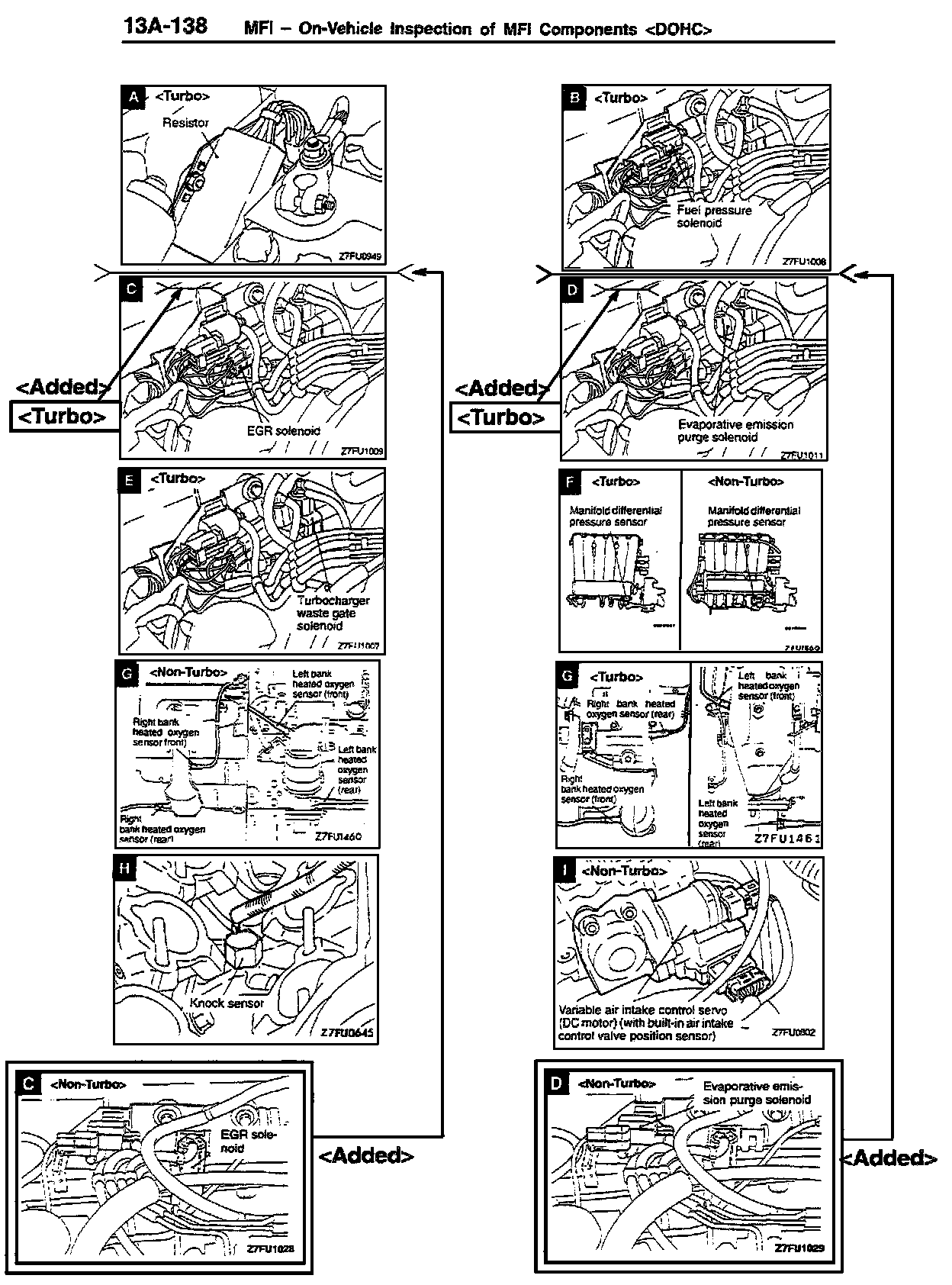

1997 3000GT, Volume 1 page 13A-138

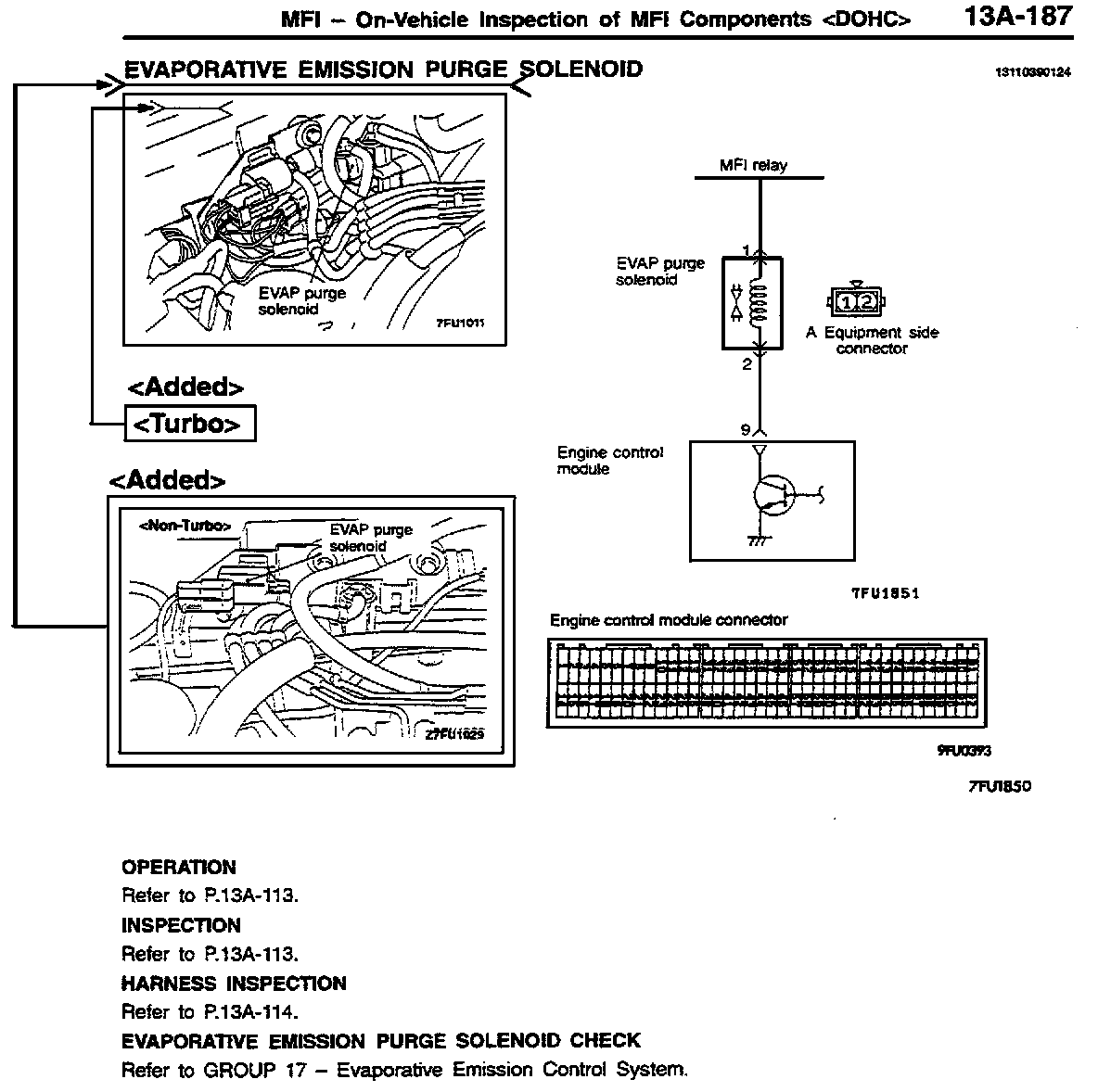

1997 3000GT, Volume 1, page 13A-187

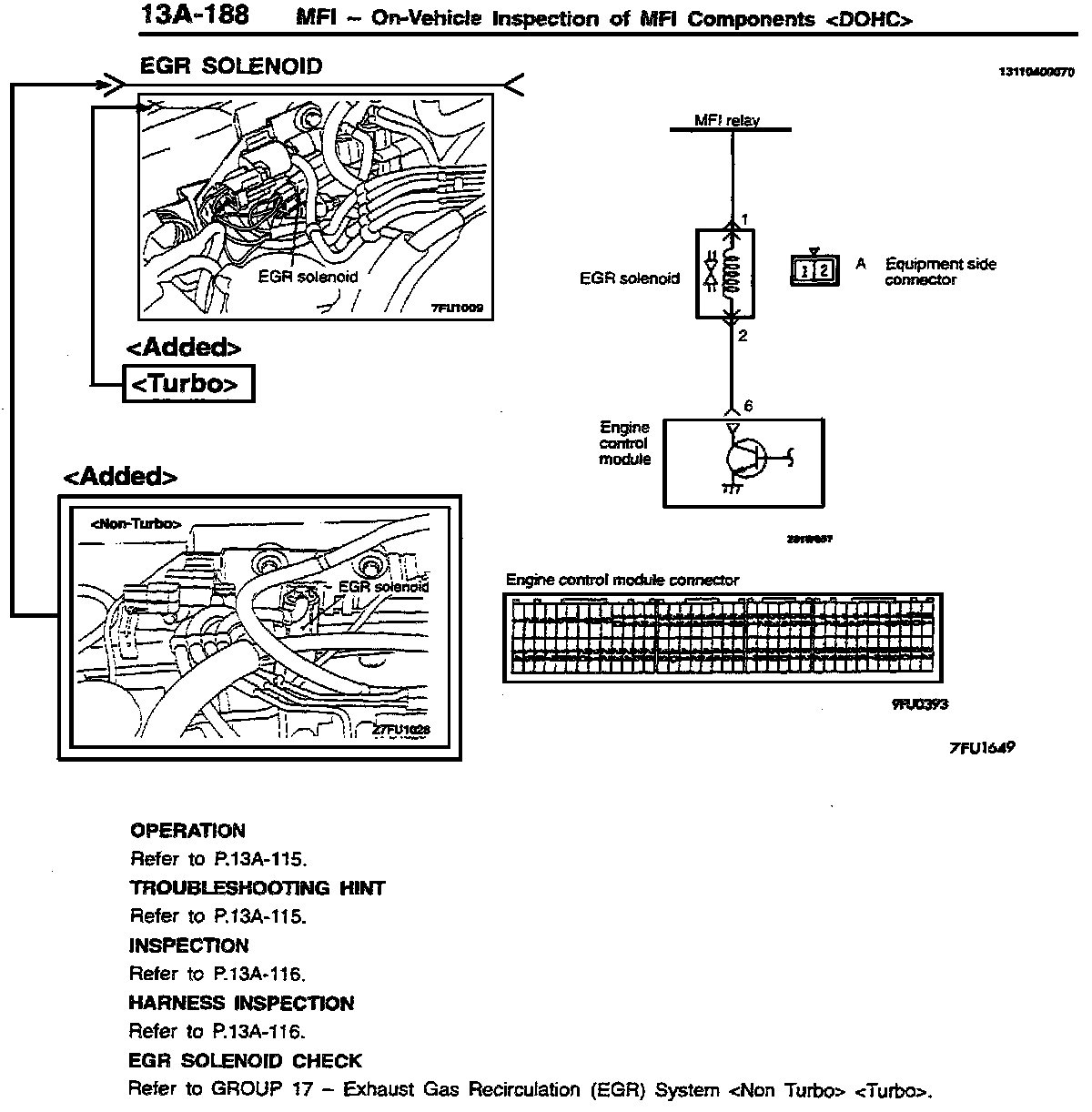

1997 3000GT, Volume 1, page 13A-188





1997 3000GT, Volume 1, page 17-44

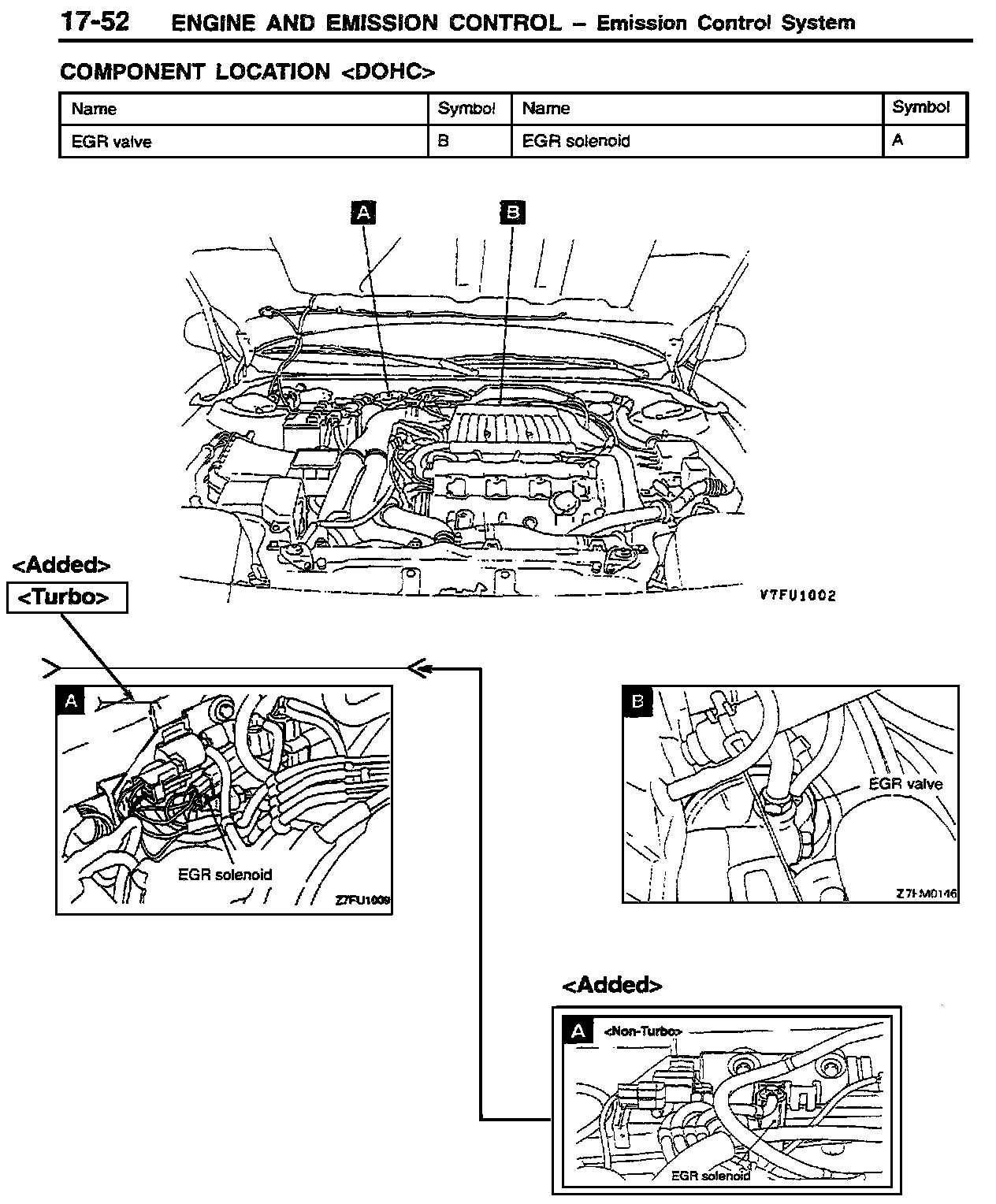

1997 3000GT, Volume 1, page 17-52





1997 3000GT, Volume 1, page 17-52

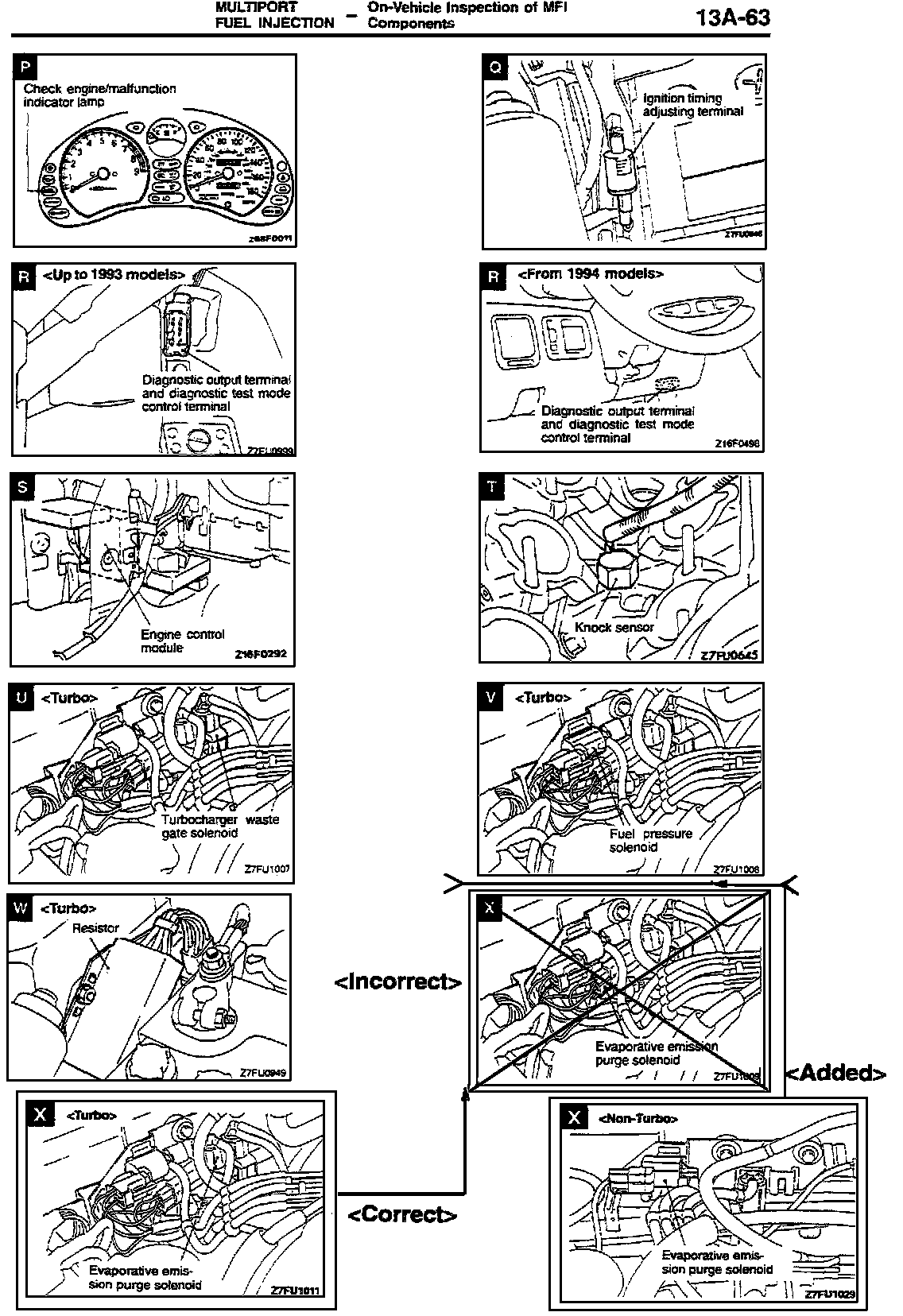

1992-96 3000GT, Volume 1, page 13A-63

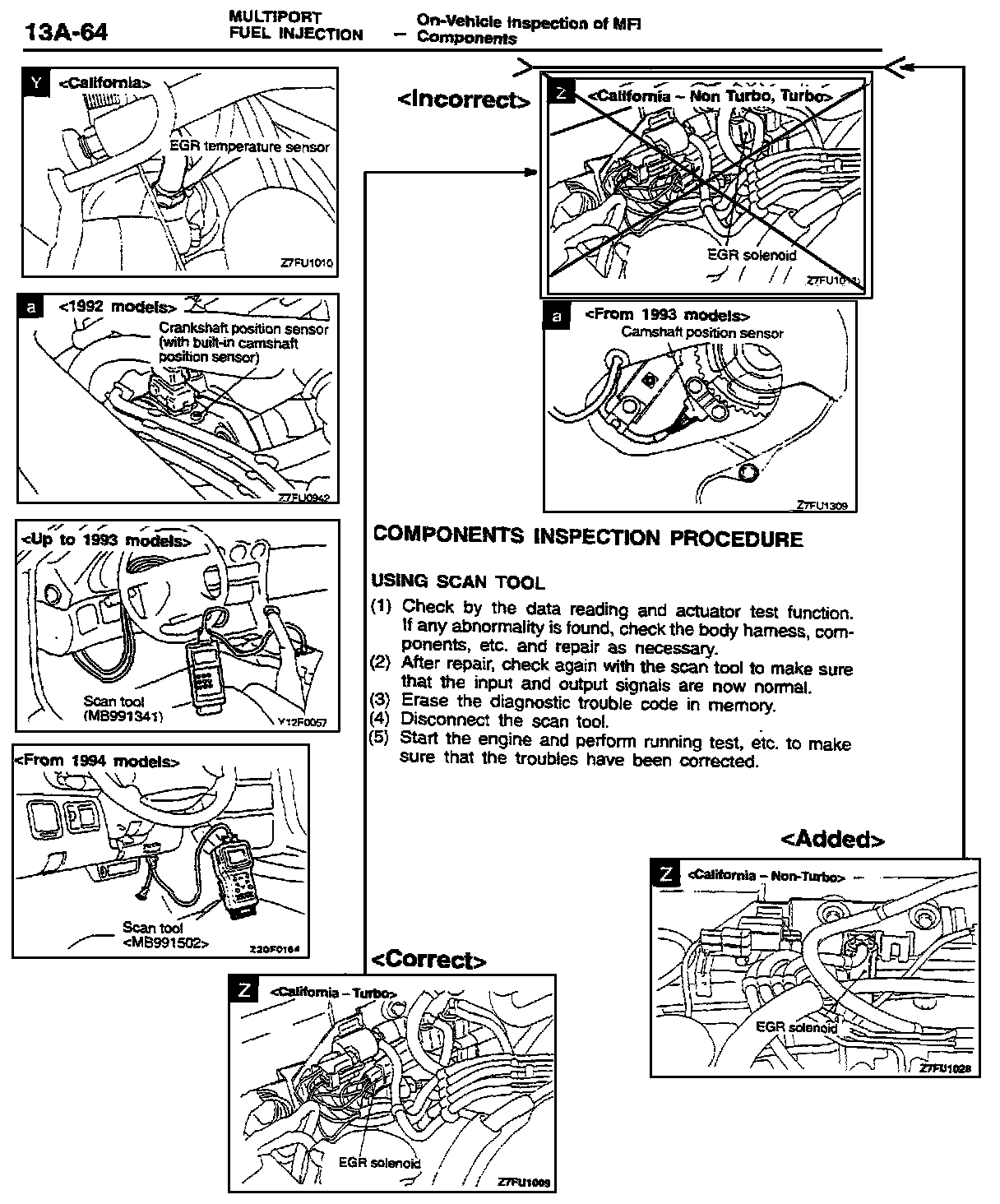

1992-96 3000GT, Volume 1, page 13A-64

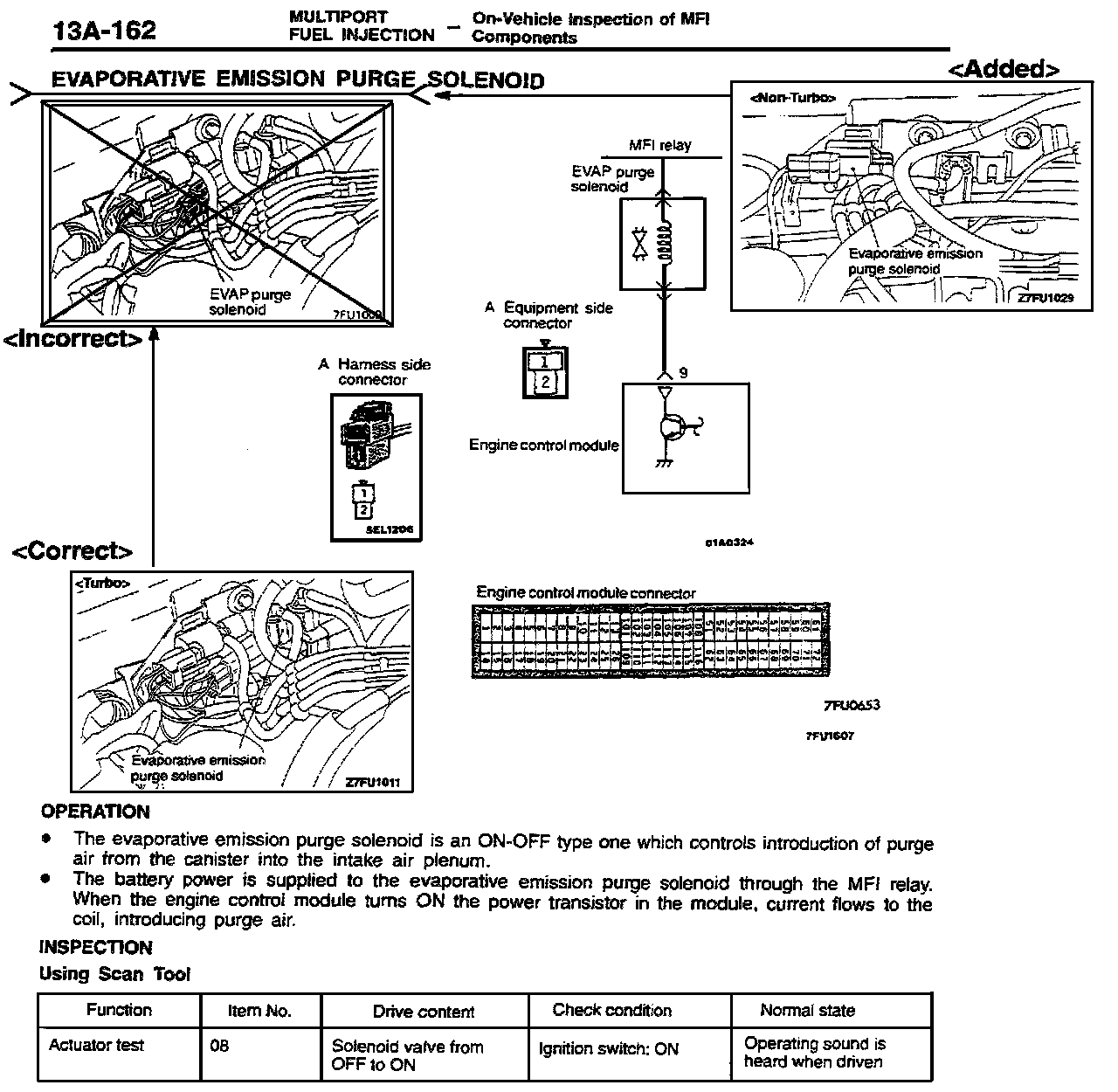

1992-96 3000GT, Volume 1, page 13A-162





1992-96 3000GT, Volume 1, page 13A-164

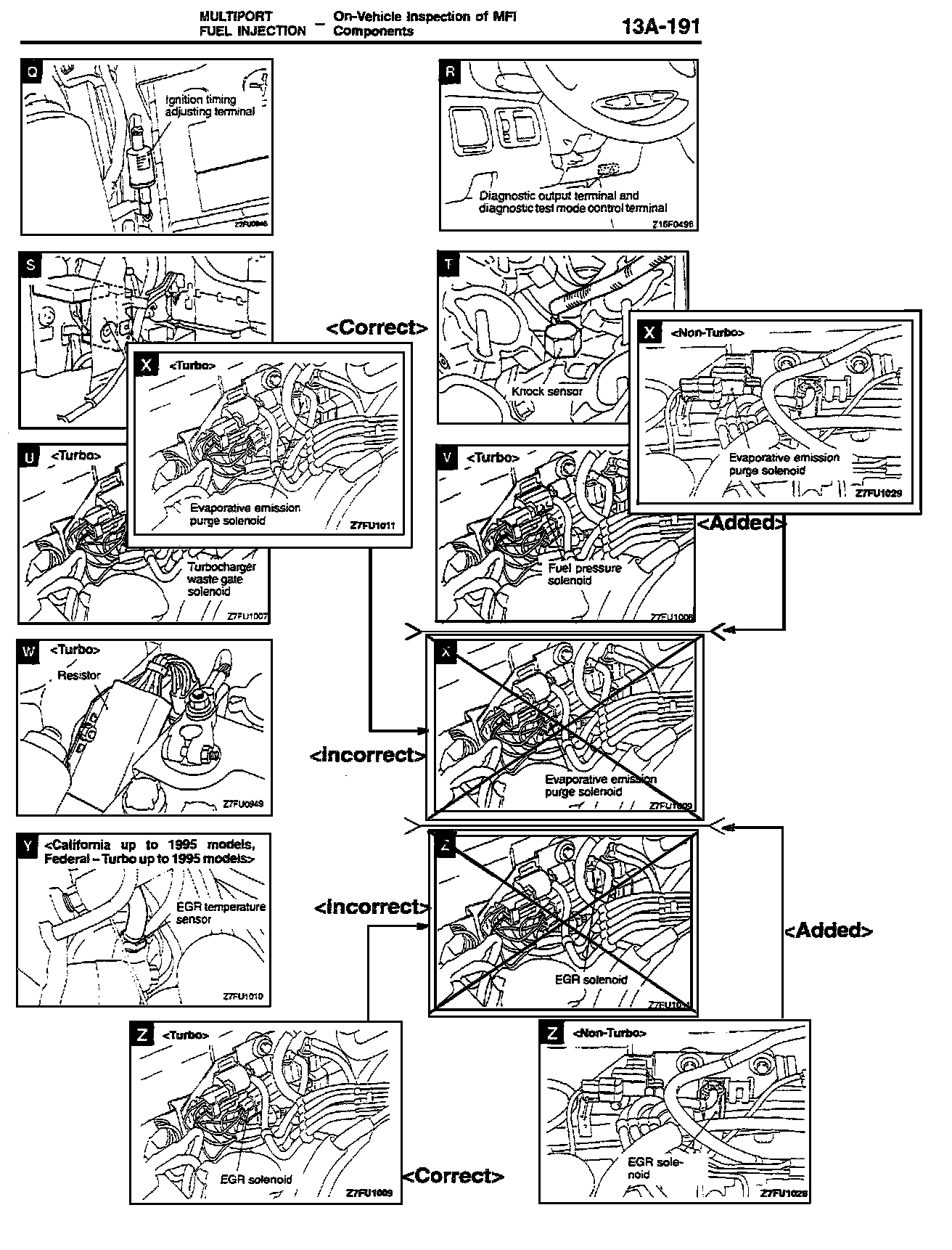

1992-96 3000GT, Volume 1, page 13A-191

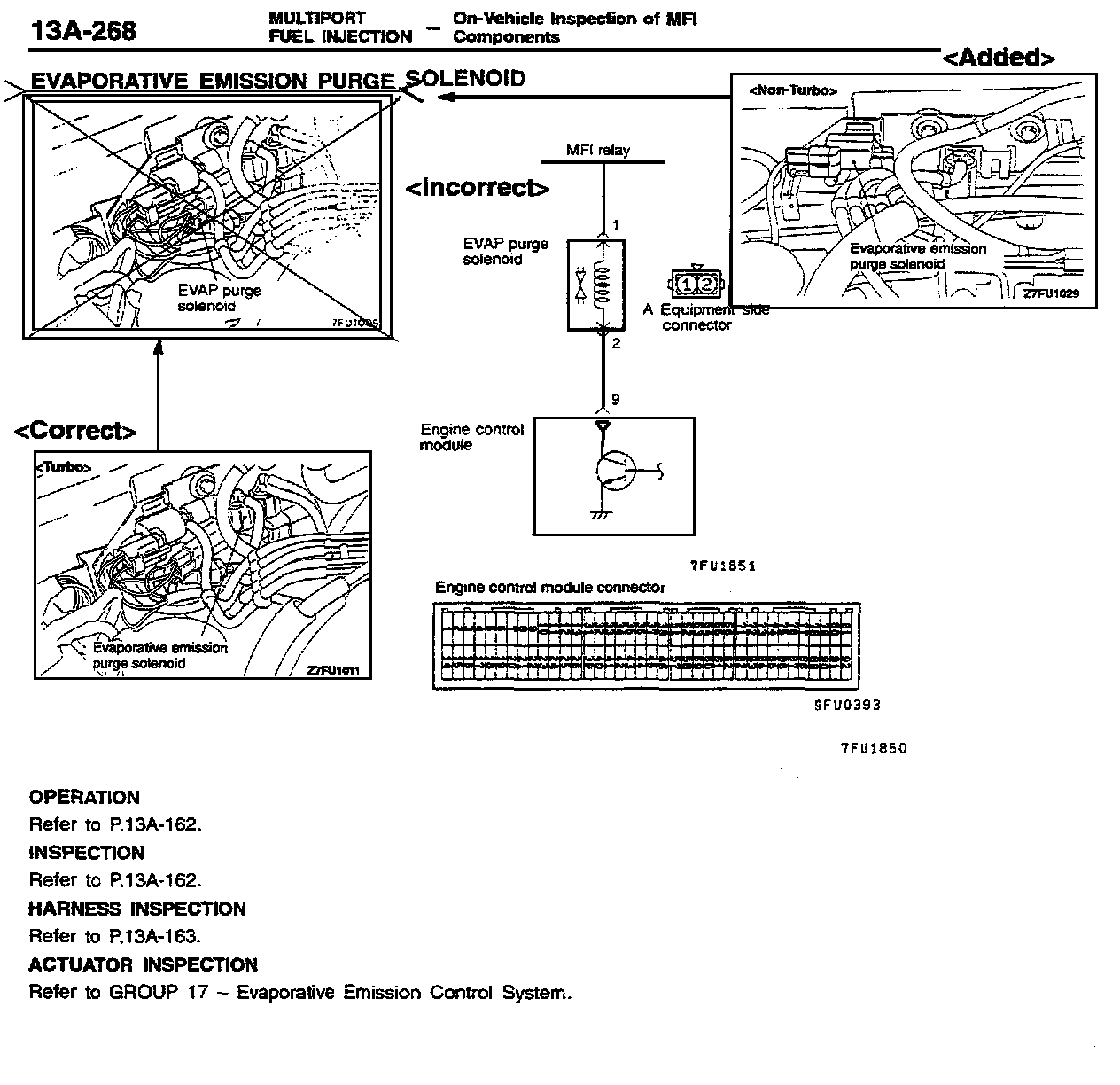

1992-96 3000GT, Volume 1, page 13A-268

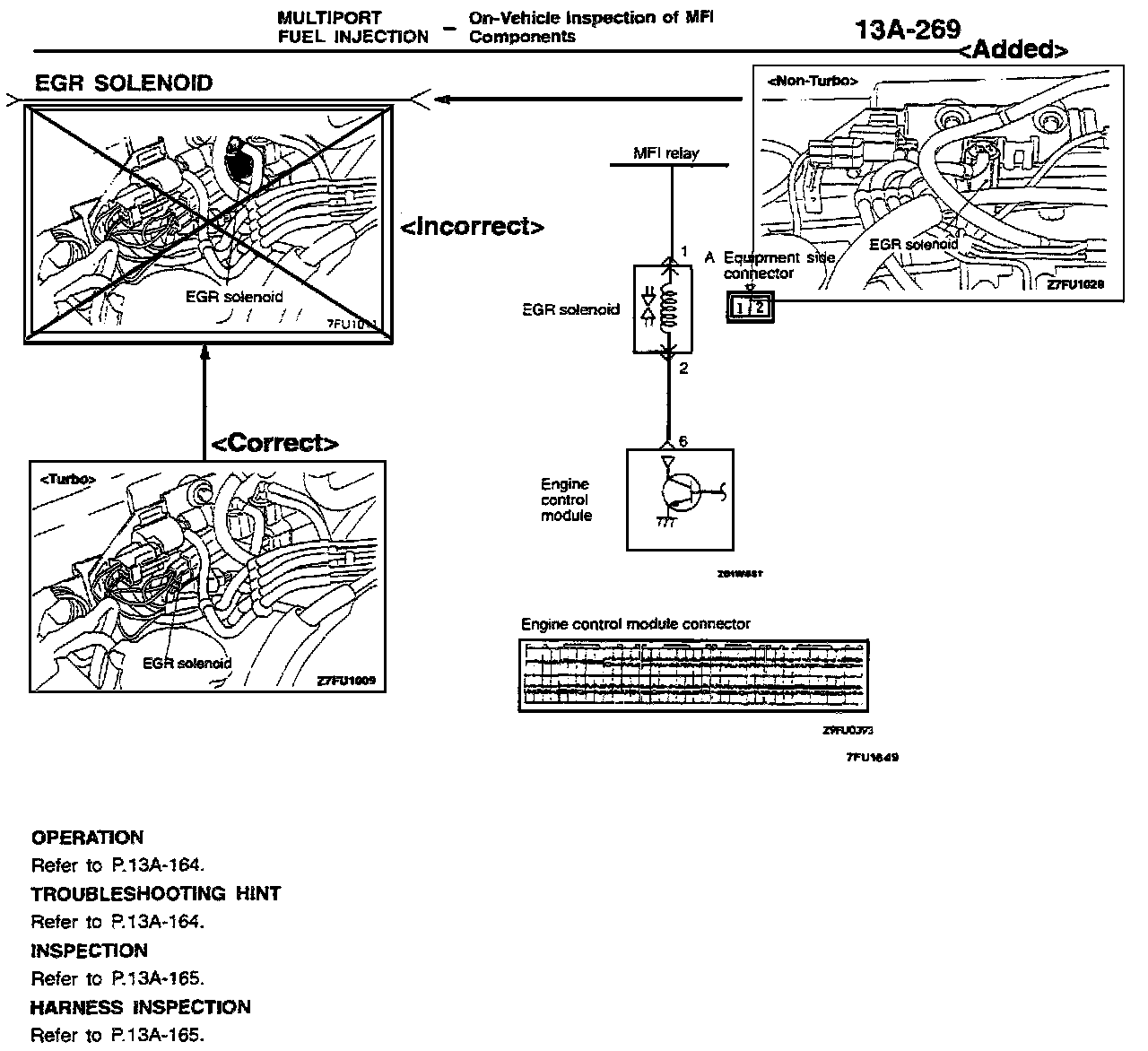

1992-96 3000G1 Volume 1, page 13A-269

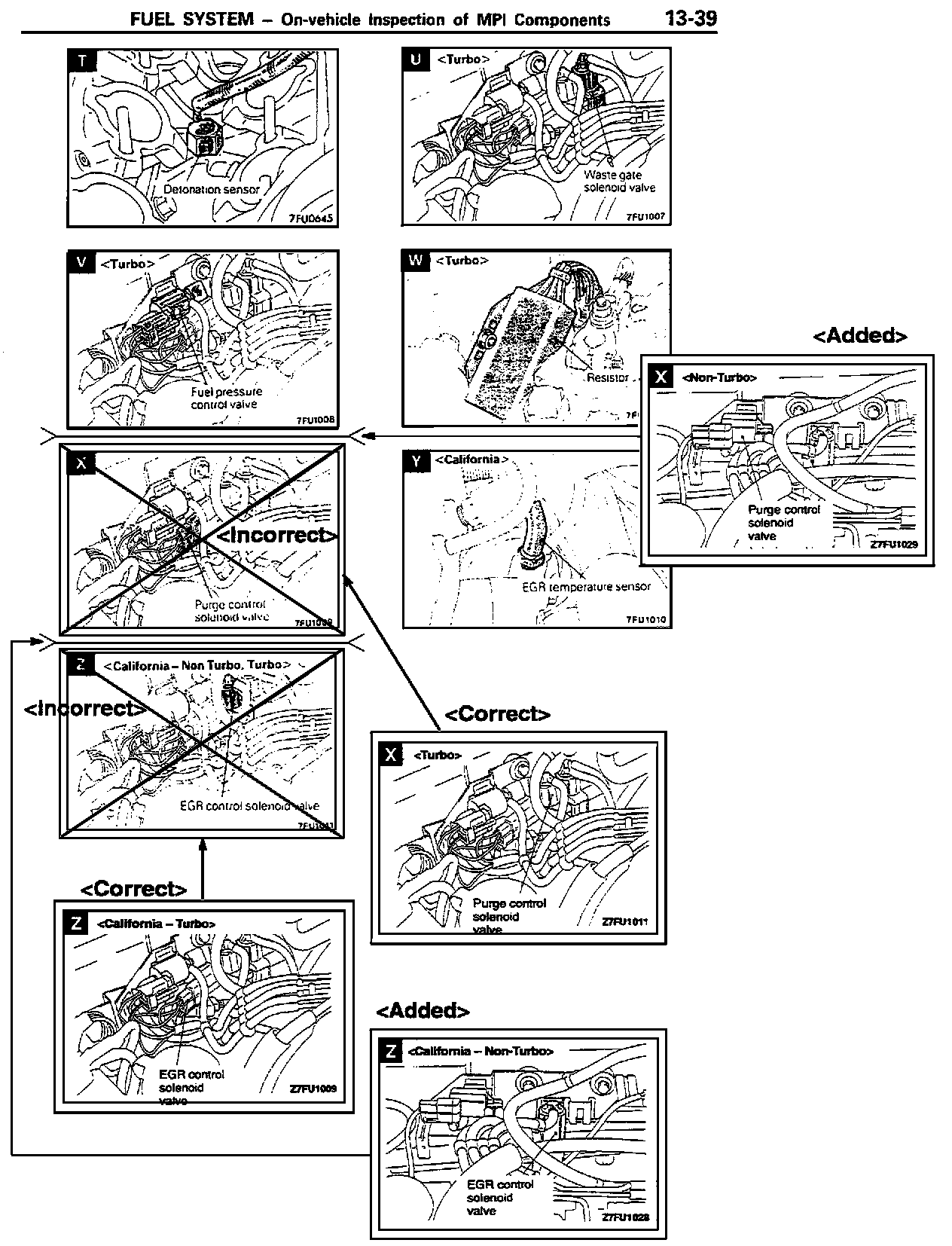

1991 3000GT, Volume 1, page 13-39

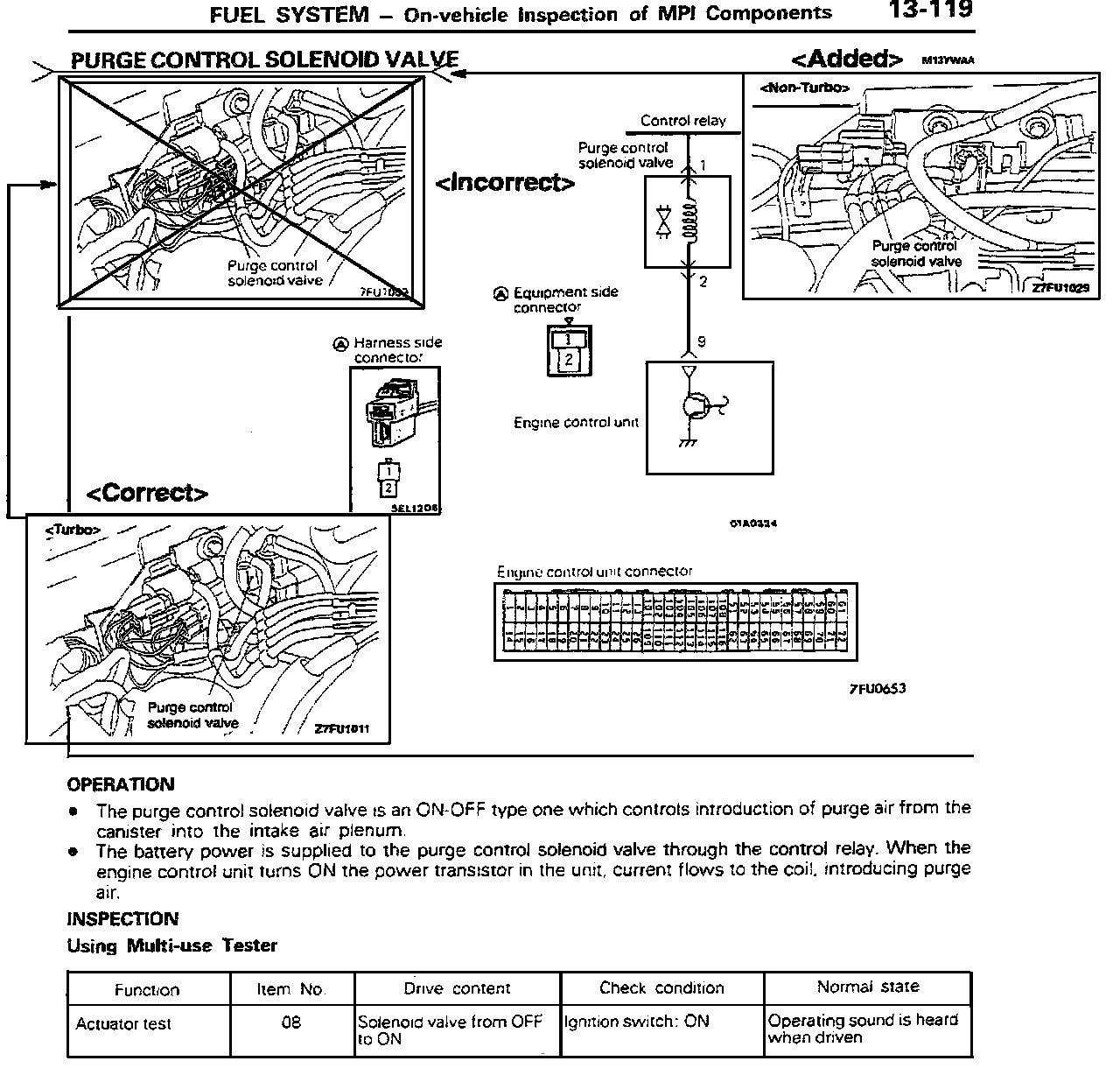

1991 3000GT, Volume 1, page 13-119

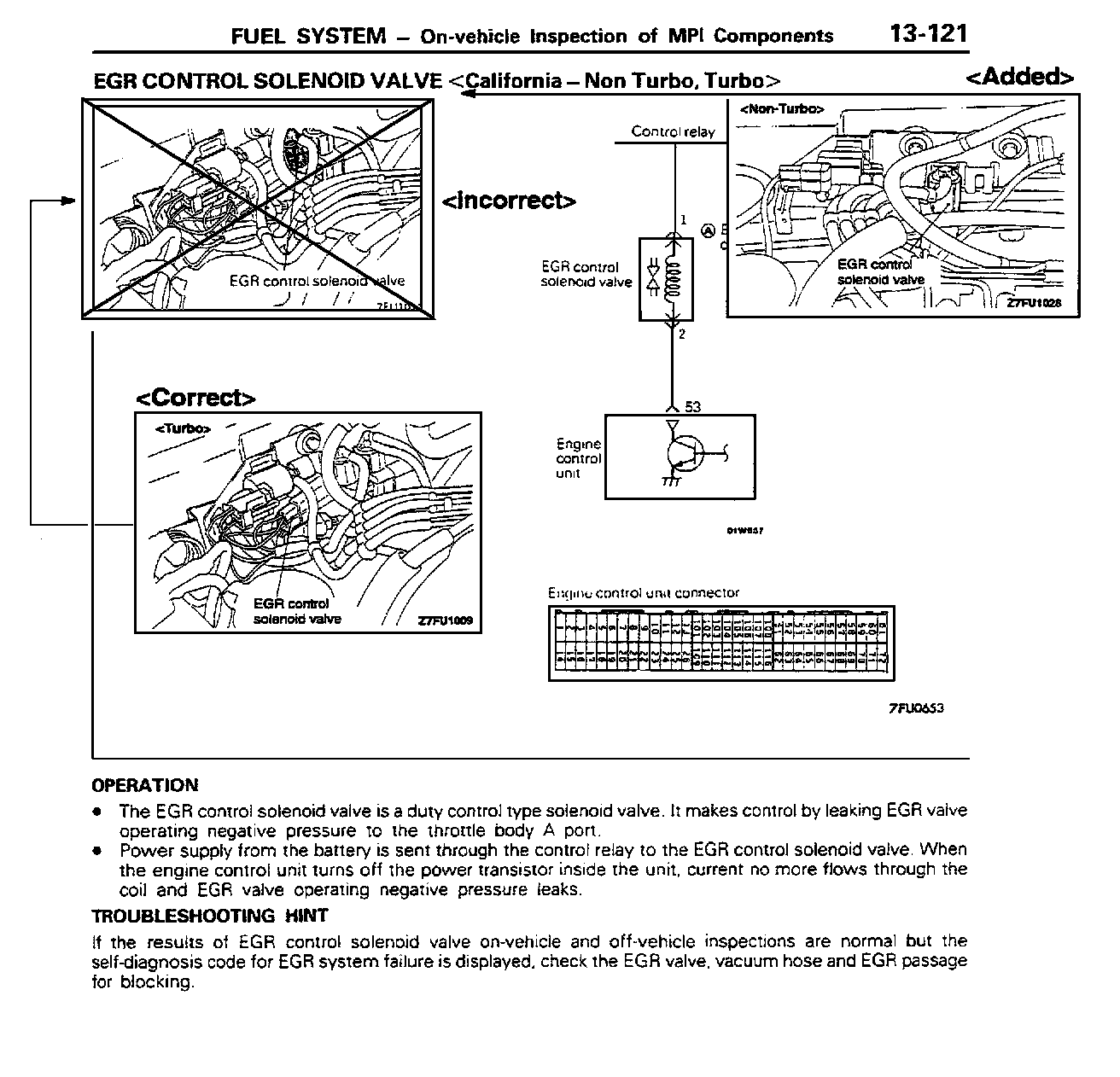

1991 3000GT, Volume 1, page 13-121

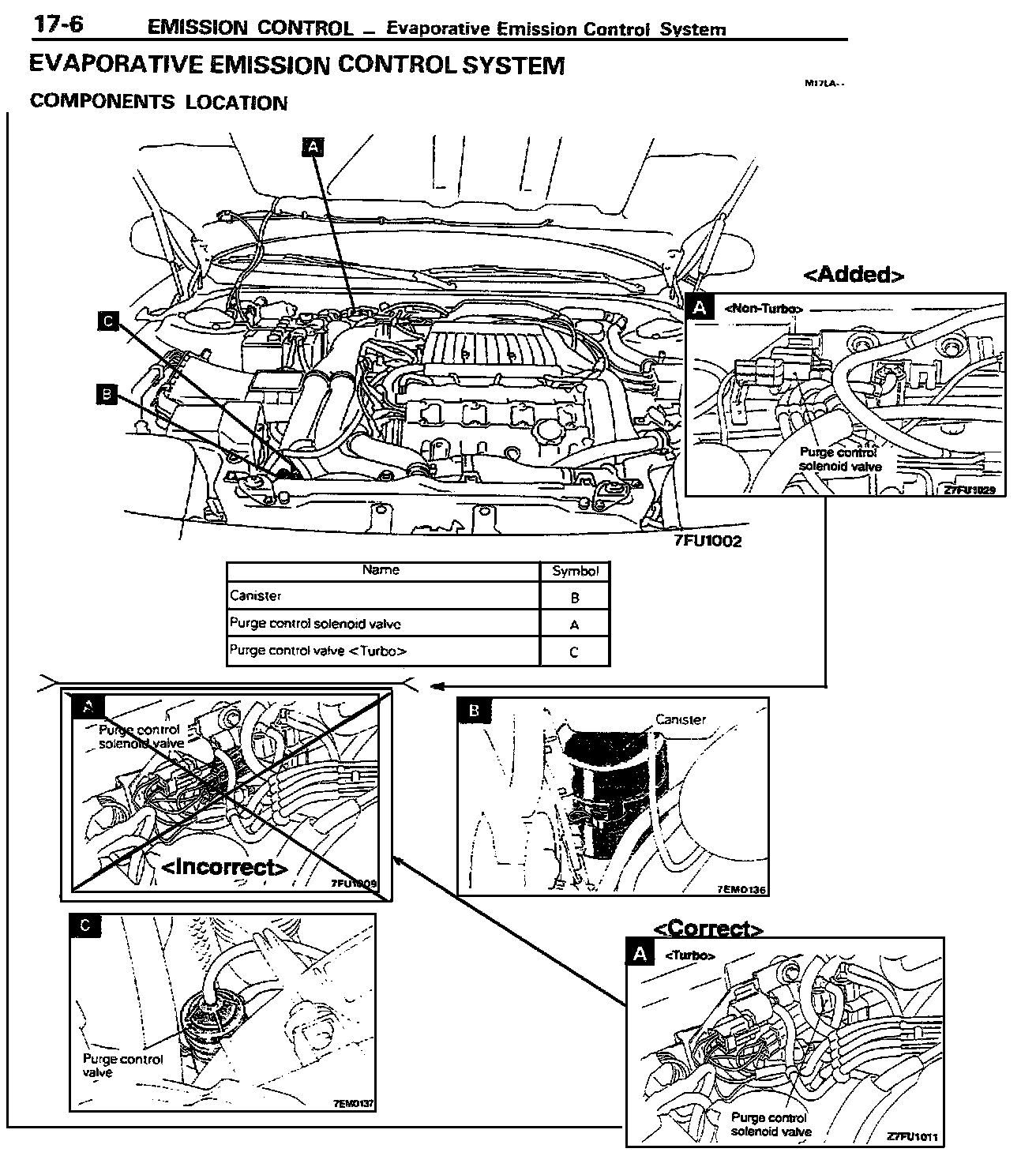

1991 3000GT, Volume 1, page 17-6

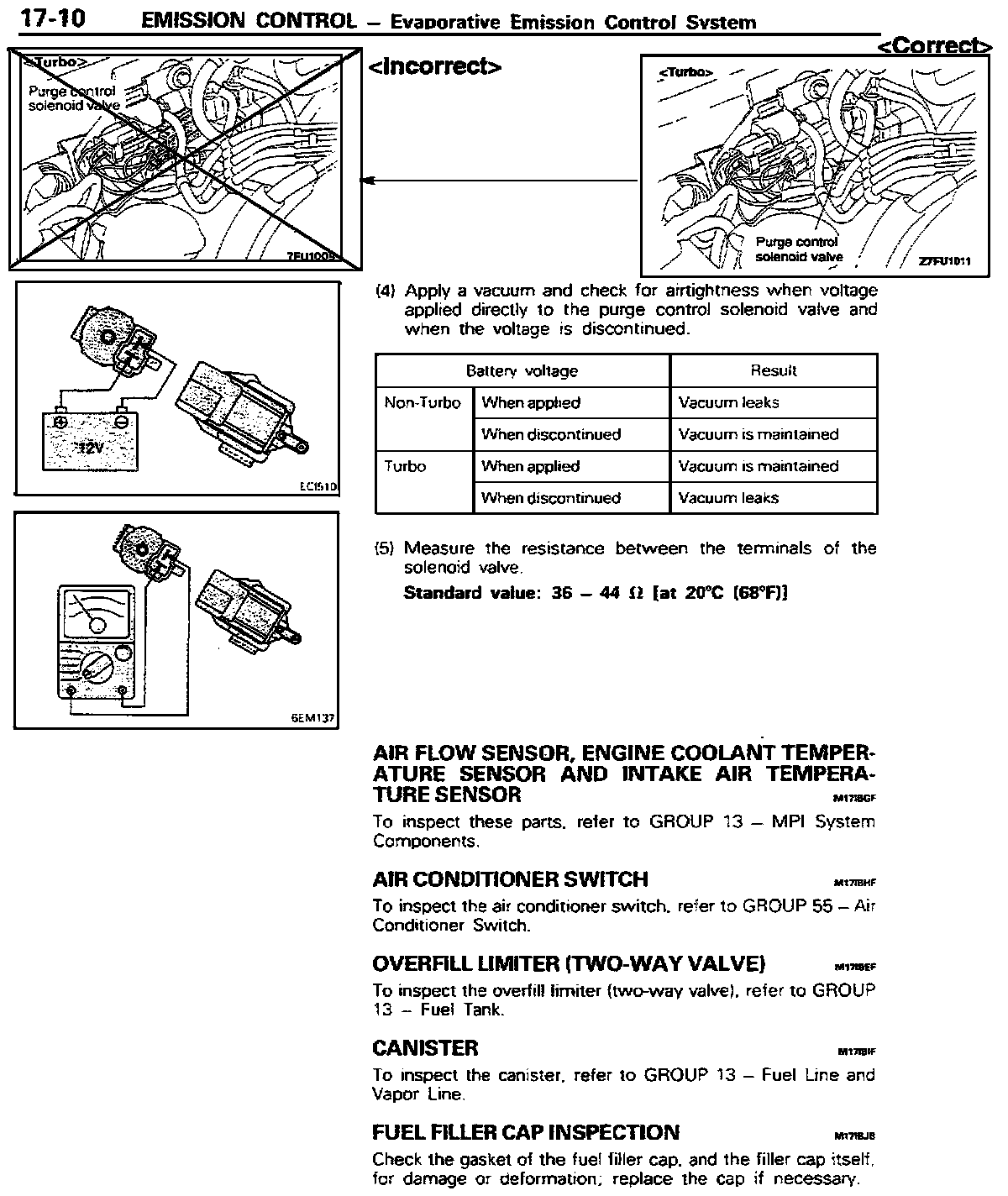

1991 3000GT, Volume 1, page 17-10

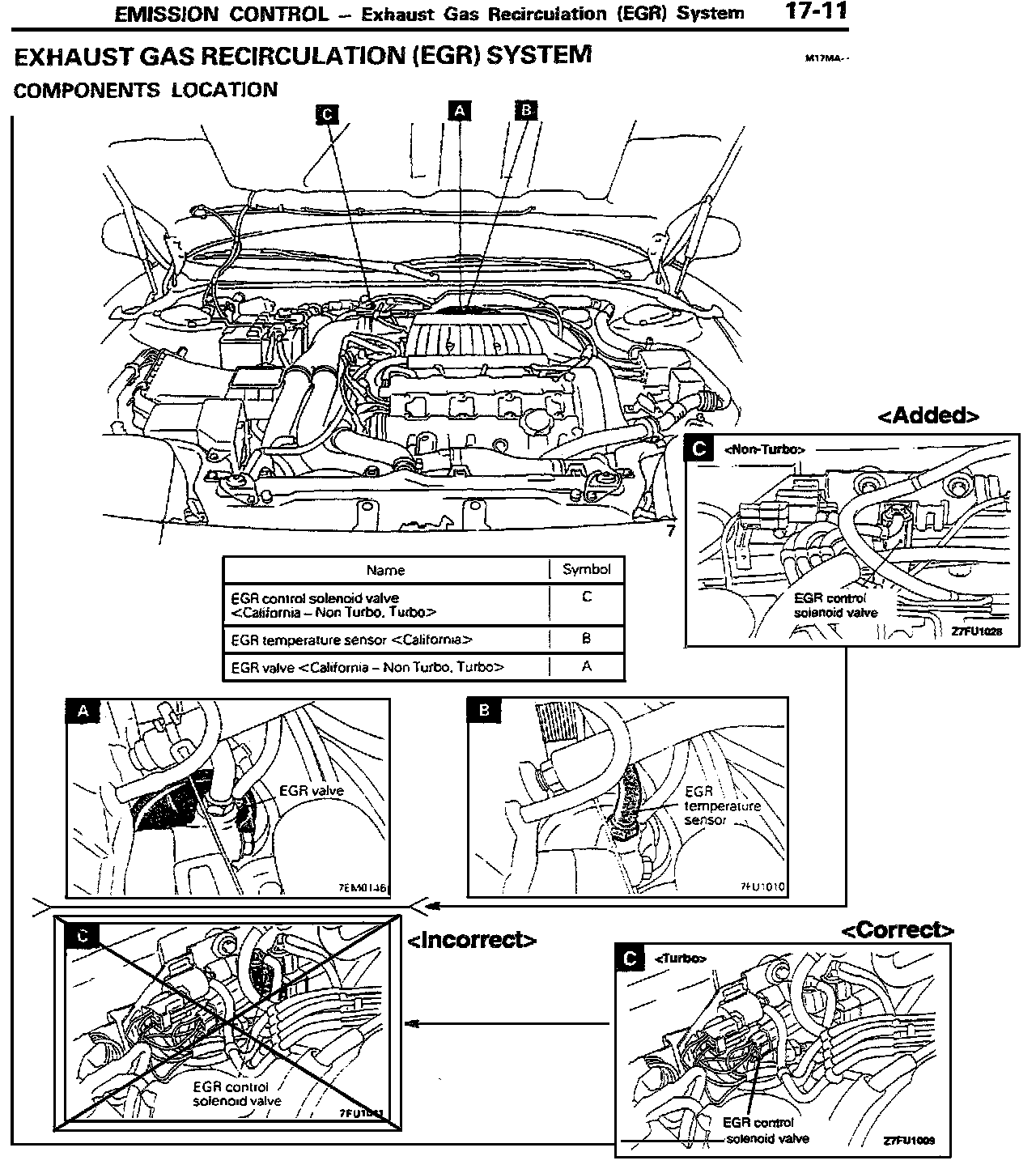

1991 3000GT, Volume 1, page 17-11





1991 3000GT, Volume 1, page 17-13
