Evaporative Check Valve: Service and Repair

Accessing The Overfill Limiter (Two-way Valve) From Luggage Compartment:

REMOVAL

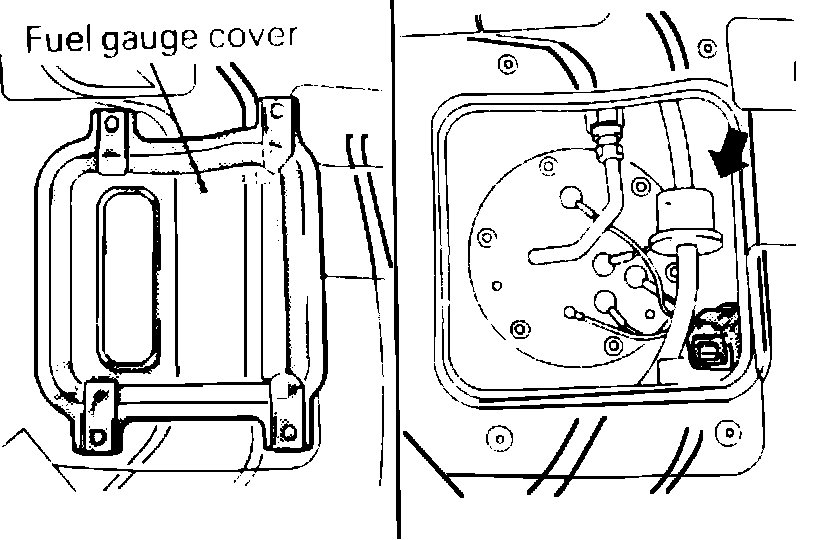

1. Remove the fuel gauge cover, located in the luggage compartment area.
2. Disconnect the fuel pump harness connector.
3. Remove the overfill limiter (Two-way valve).

INSTALLATION
1. Install the new overfill limiter. Be sure that it is installed in the correct direction.
2. Reconnect the fuel pump electrical harness.
3. Be sure to remove any excess sealant before applying new sealant to the floor pan.
4. Install the fuel gauge cover.
