Ignition Switch-ST and Park/Neutral (Inhibitor) Switch (A/T)

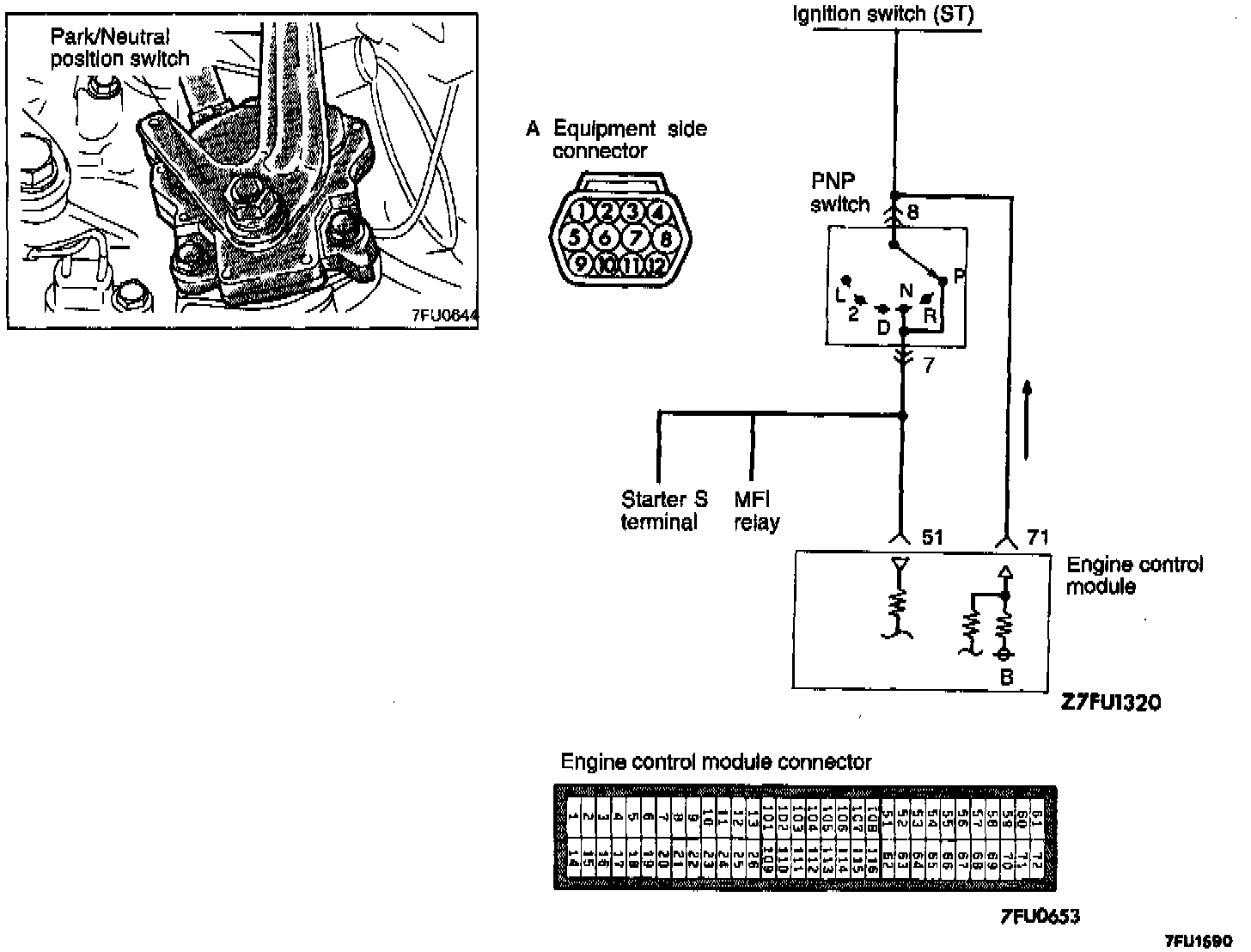

CIRCUIT DIAGRAM





INSPECTION USING SCAN TOOL

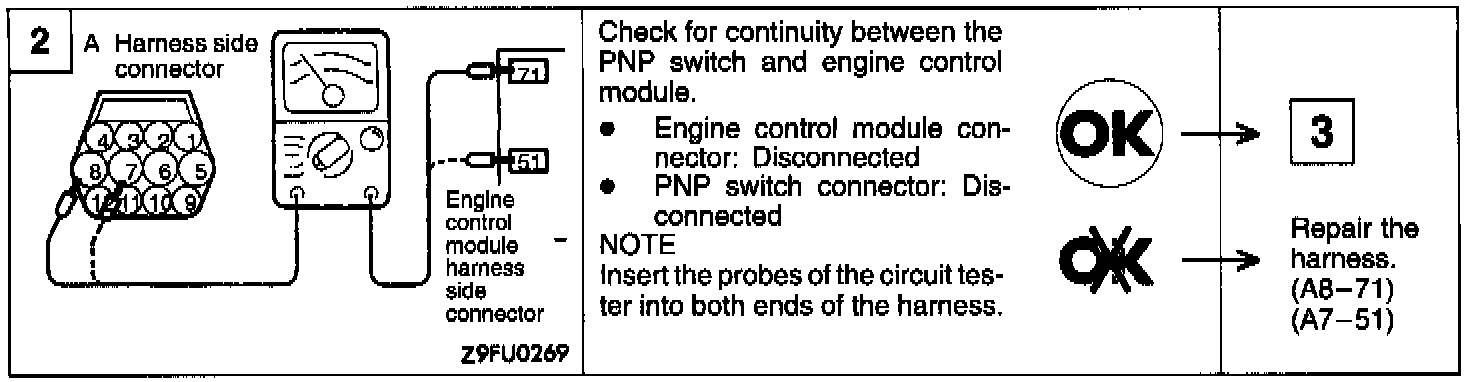

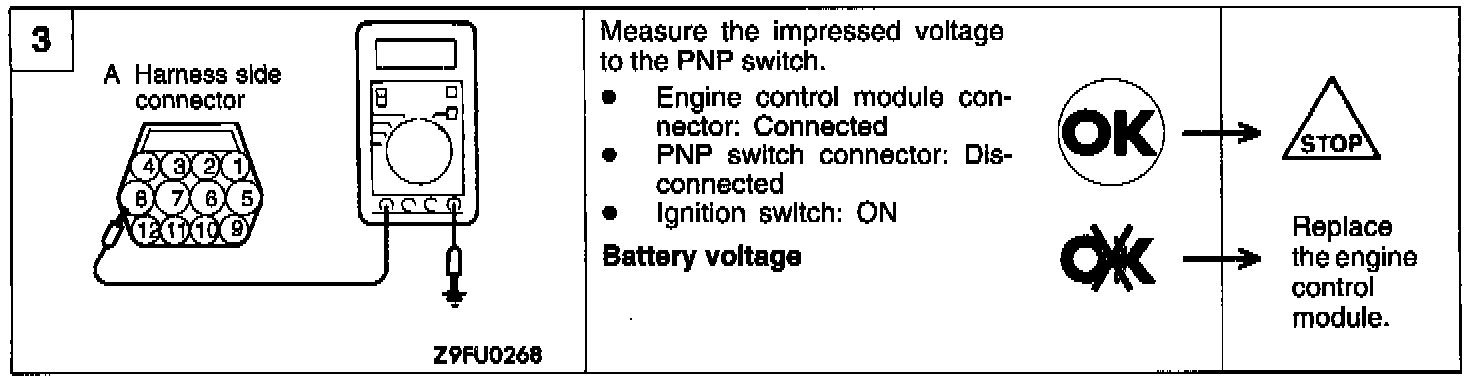

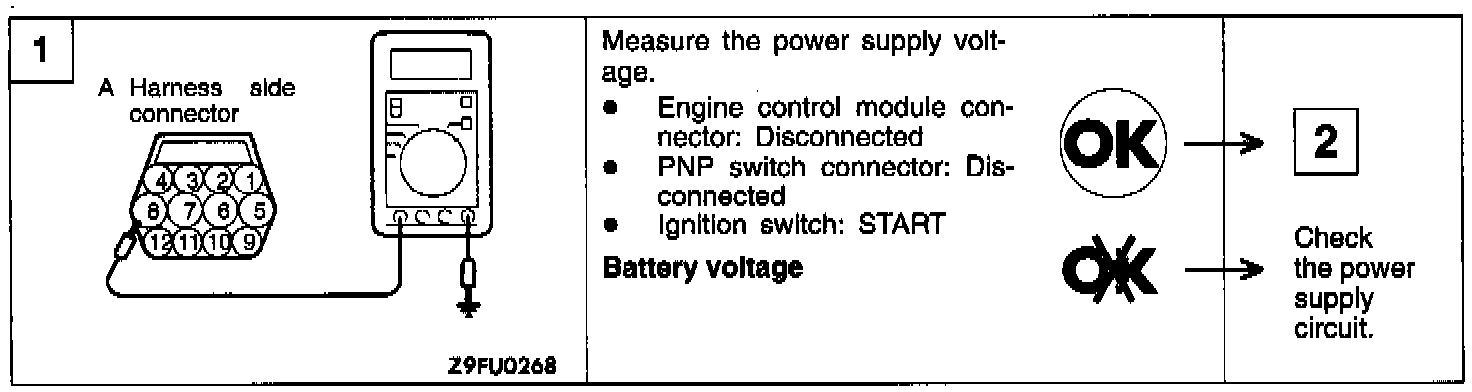

HARNESS INSPECTION PROCEDURE

TROUBLESHOOTING HINTS
Hint: If the park/neutral position switch harness and individual part checked good but the park/neutral position switch output is abnormal, poorly adjusted control cable is suspected.
