Home >> Mitsubishi >> 1995 >> 3000GT Convertible AWD V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Anti-Lock Braking Signal

Anti-Lock Braking Signal

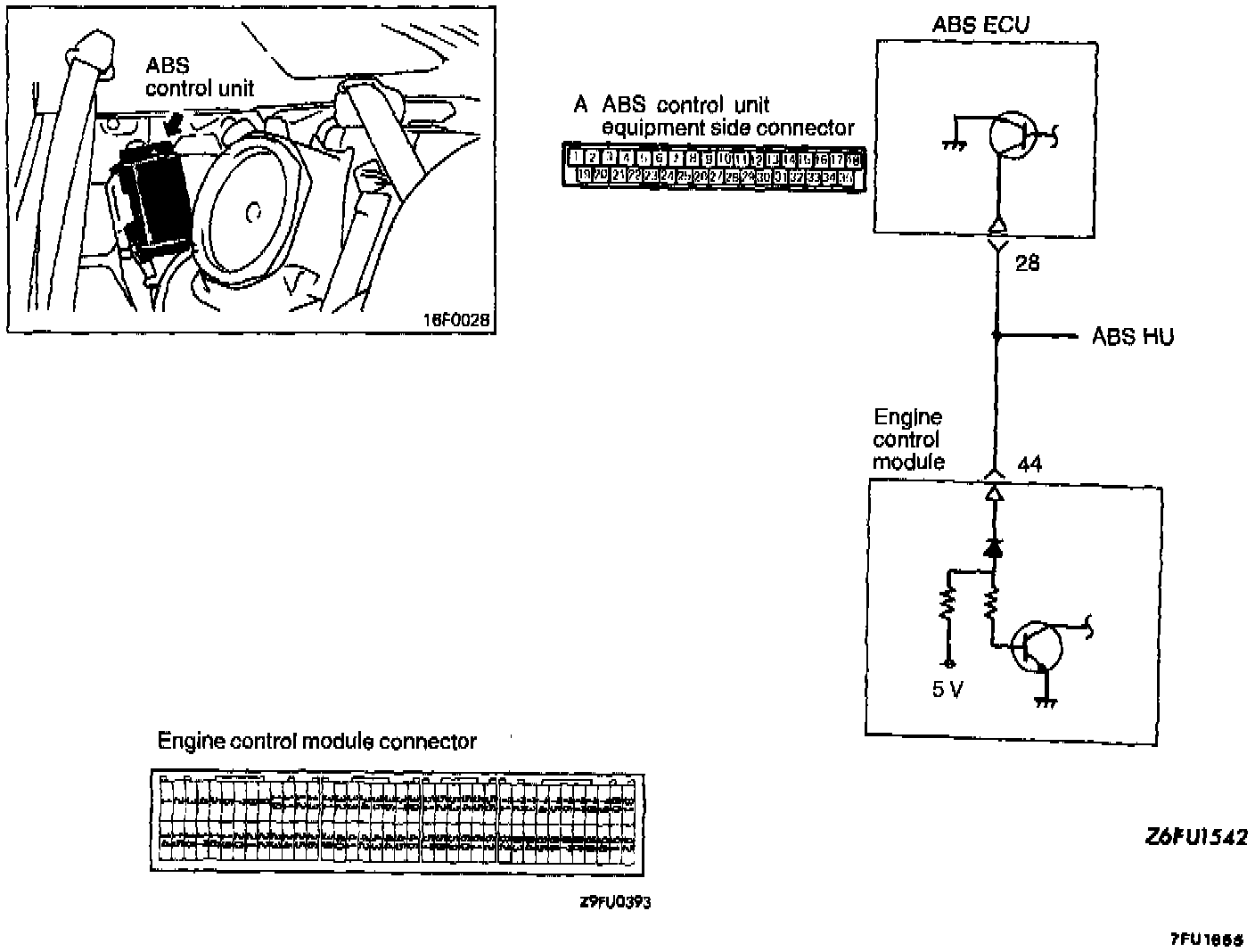

CIRCUIT DIAGRAM

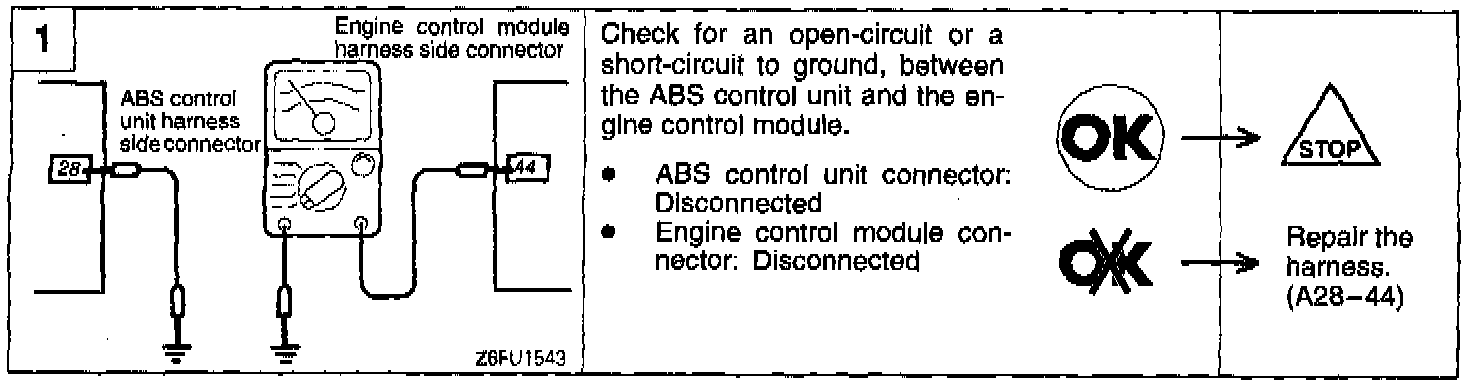

HARNESS INSPECTION PROCEDURE
