Junction Block Relays - Location Corrections
NO.: TSB-96-54-004DATE: April, 1996
MODEL: 1991-1996 3000GT
SUBJECT:
JUNCTION BLOCK RELAY CORRECTIONS - SERVICE MANUAL REVISION
TSB Revision TSB-96-54-004
PURPOSE
This bulletin is issued to correct errors in the junction block relay locations shown in the 1991 3000GT Service Manual, Vol. 2 The information is shown correctly in the 1992-96 3000GT Service Manual, Vol. 2, Page 19.
AFFECTED SERVICE MANUALS
Service Manual Page
1991 3000GT, Vol.2 9
SERVICE MANUAL REVISION
Please write the TSB number in the box at the bottom of the page listed in the table to refer to the corrected page in this bulletin.

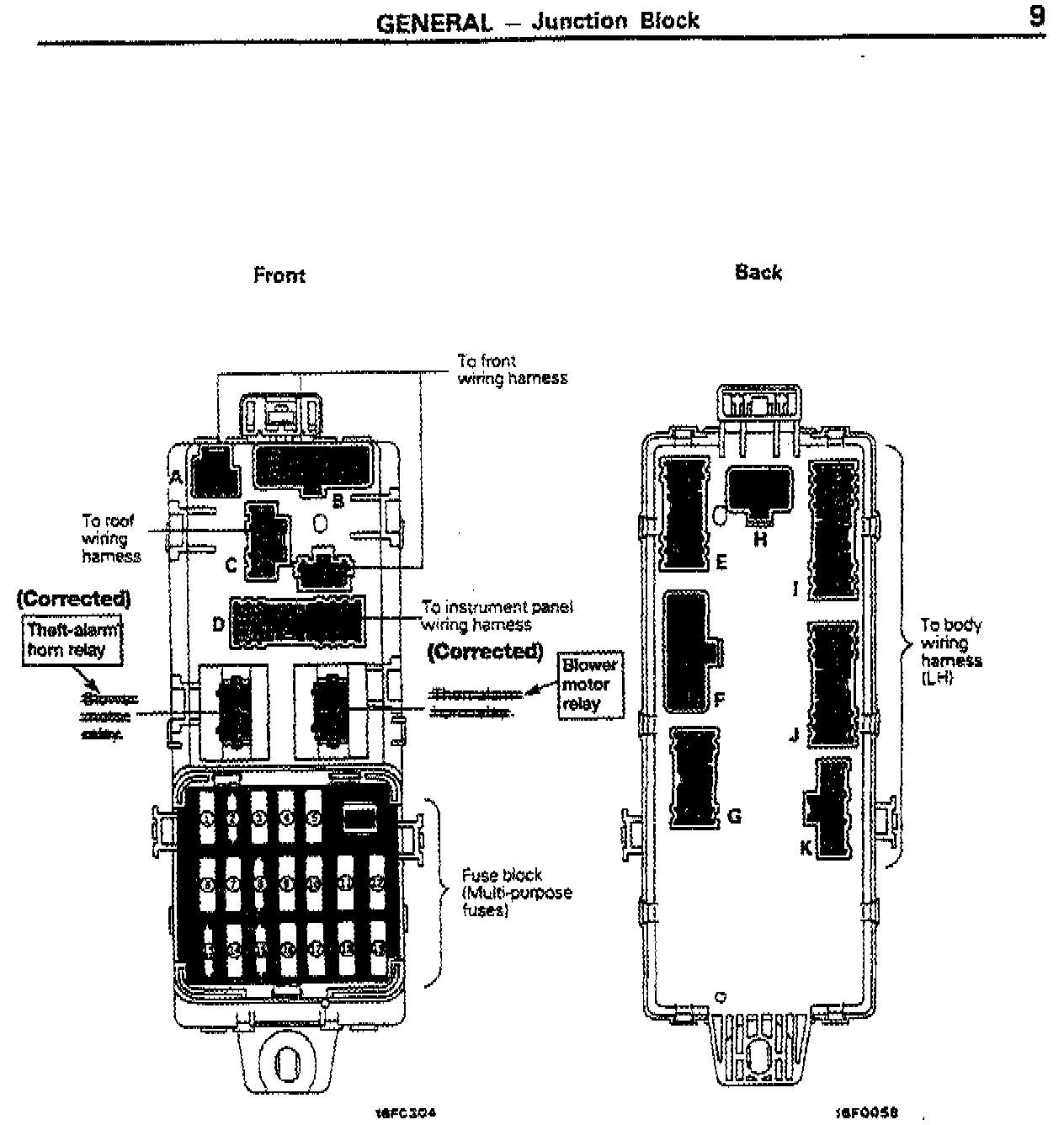

1991 3000GT Service Manual, Vol. 2, Page 9
Please correct the relay callouts as shown.
