Toe-In

1. Adjust rear toe-in by moving mounting bolts located on crossmember side of the trailing arm.

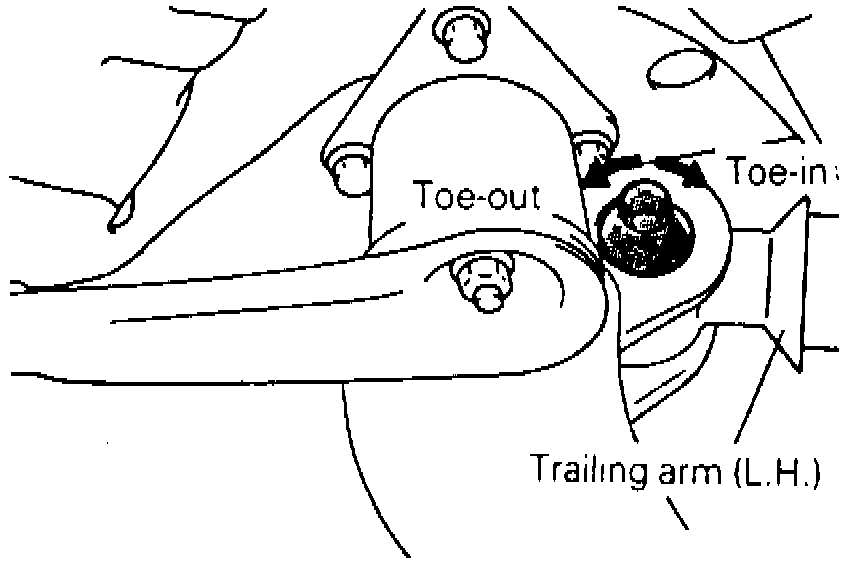

Fig. 5 Rear Toe-In Adjustment:

2. Make adjustment by moving left and right bolts equally. One graduation changes toe by approximately 0.08 inch, Fig. 5.
