Camber

1. Measure camber with a camber/caster/kingpin gauge.

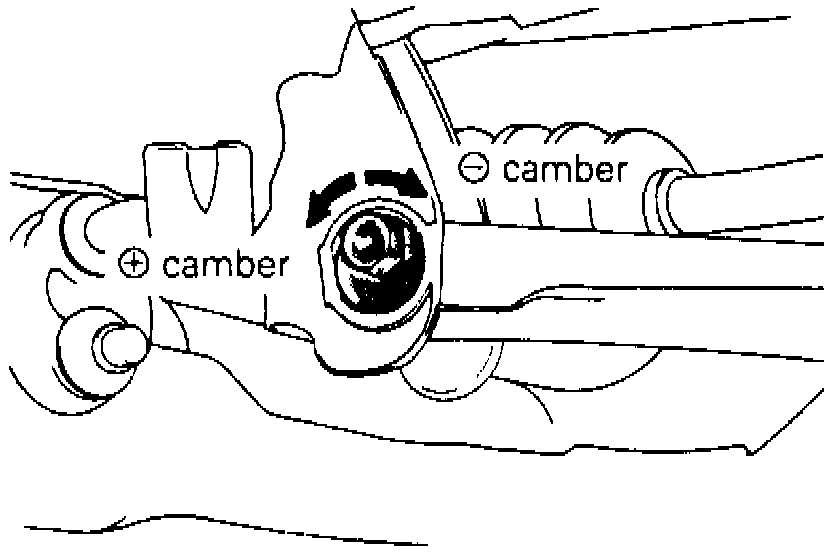

Fig. 3 Rear Camber Adjustment:

2. Adjust camber by moving mounting bolt located on crossmember side of lower arm. One graduation is equivalent to about 1/5° in camber, Fig. 3.
