Instrument Cluster / Carrier: Service and Repair

1. Remove knee protector as follows:
a. Remove hood lock handle.
b. Remove rheostat and switch garnish.
c. Remove knee protector screws and knee protector.

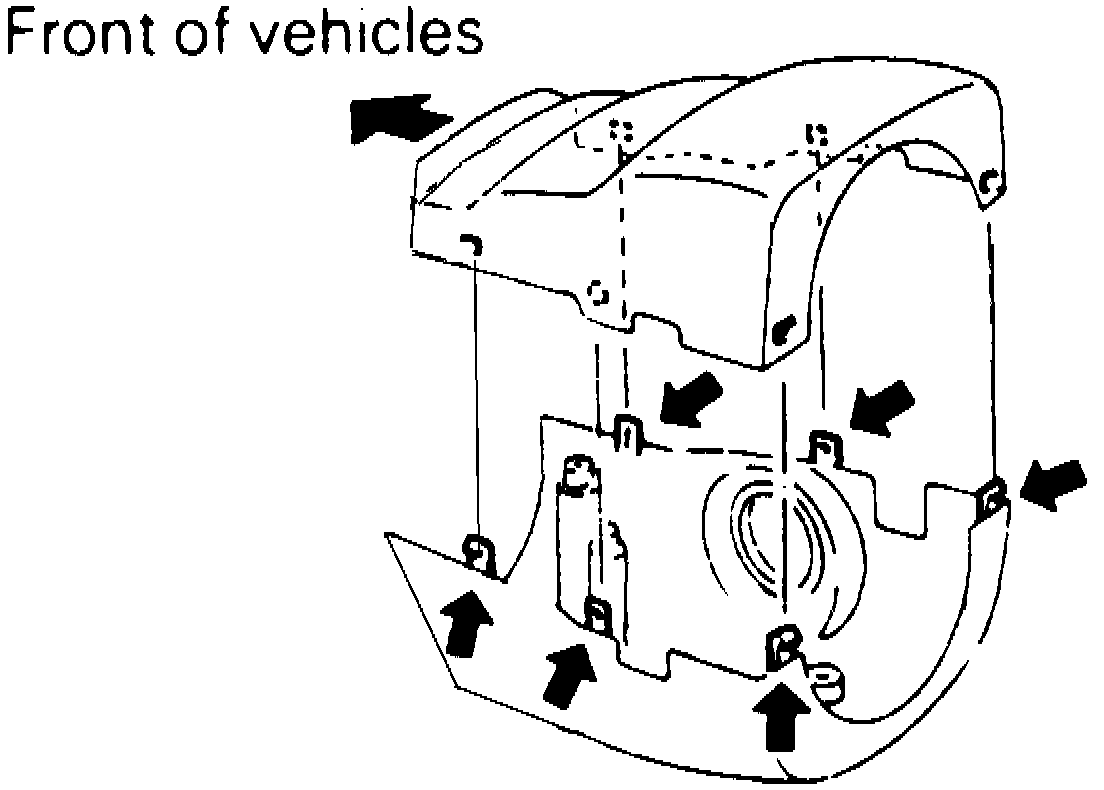

Fig. 12 Upper & Lower Column Cover Removal:

2. Remove upper and lower steering column cover screws then remove covers ensuring not to break cover grippers, Fig. 12.

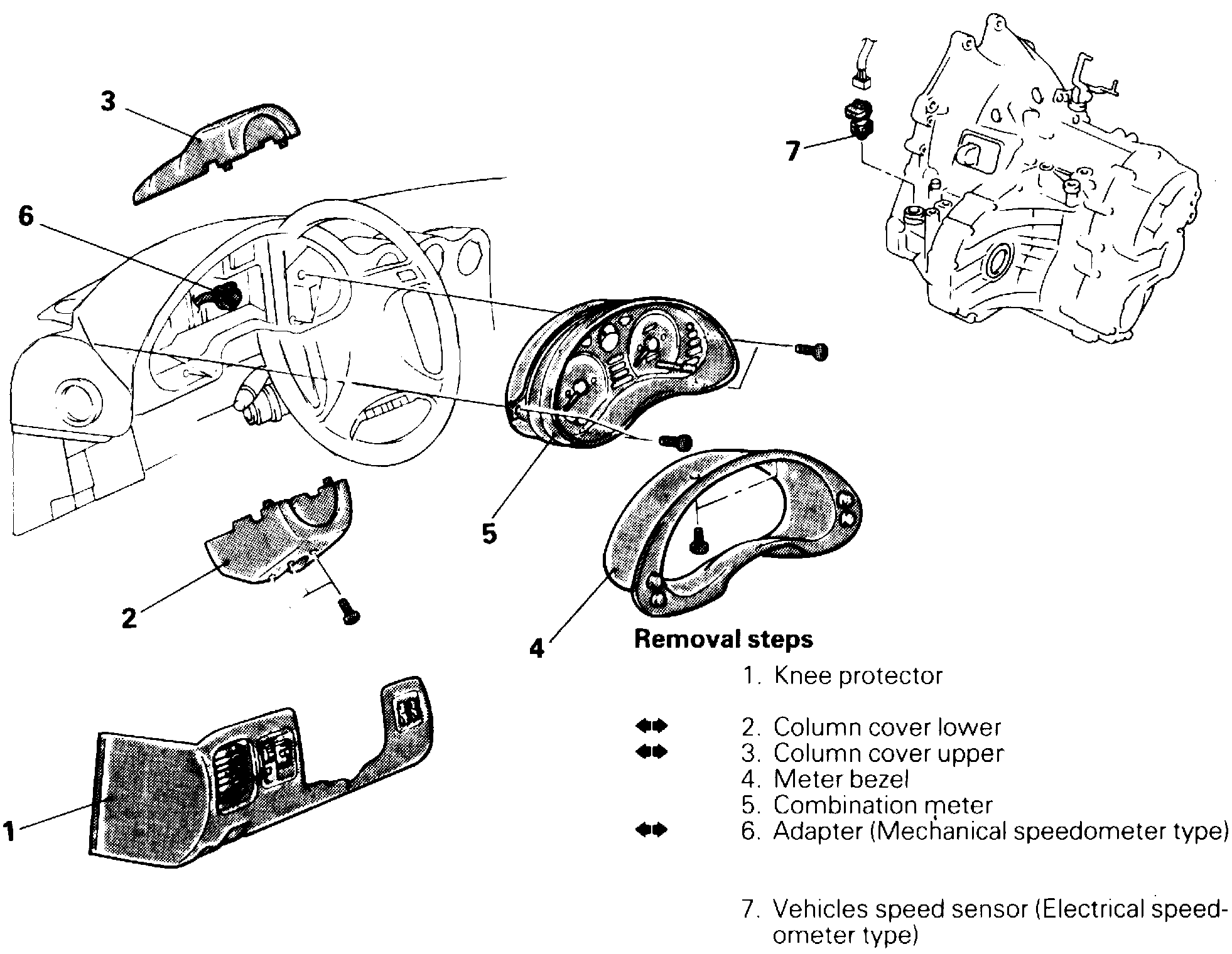

Fig. 19 Combination Meter Replacement:

3. Remove metal bezel, Fig. 19.
4. Remove combination meter attaching screws.
5. On models with mechanical speedometer, disconnect speedometer cable at transaxle end of cable.
6. Pull combination meter slightly toward vehicle interior, release wiring harness and speedometer adapter (if equipped) by turning to left or right.
7. Reverse procedure to install.
