Air Conditioning Switch: Service and Repair

AIR CONDITIONING SWITCH

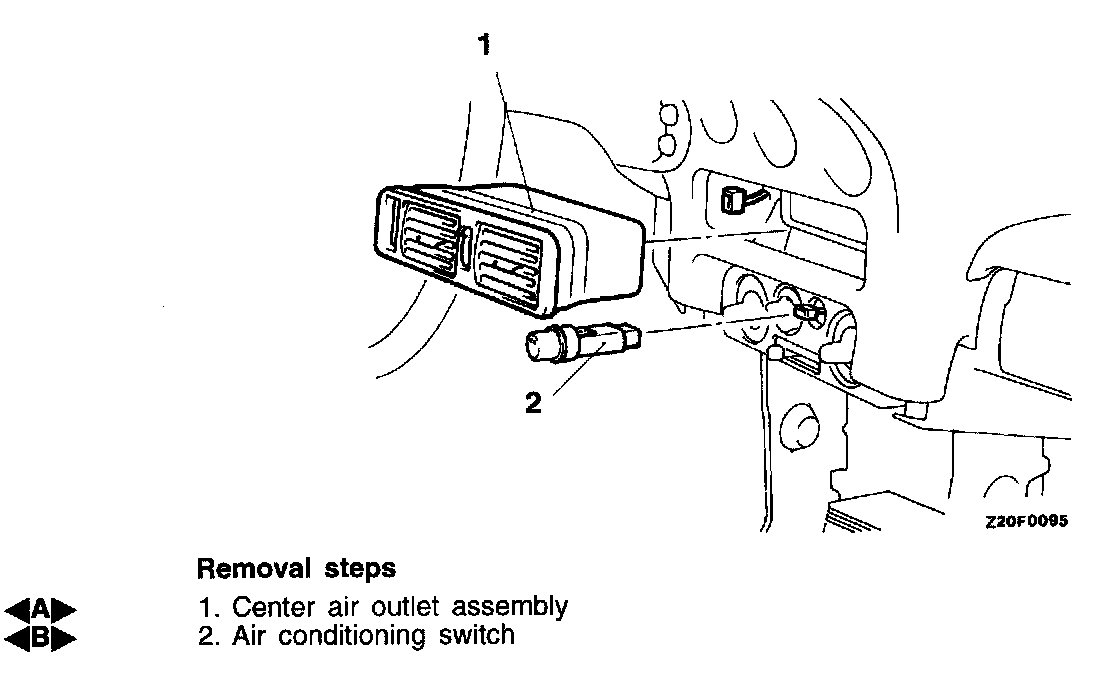

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS





CENTER AIR OUTLET ASSEMBLY REMOVAL

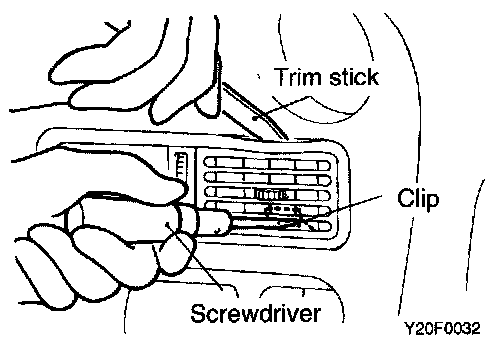

Disengaging the clips (2 positions) of the center air outlet assembly with a flat tip screwdriver, remove the center air outlet assembly with the trim stick.

AIR CONDITIONING SWITCH REMOVAL

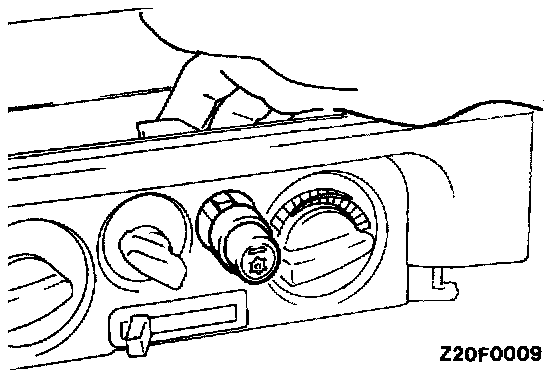

Remove the center air outlet assembly, and insert hand to the back of the cluster panel assembly through the produced opening. Push it toward you for removal.








INSPECTION

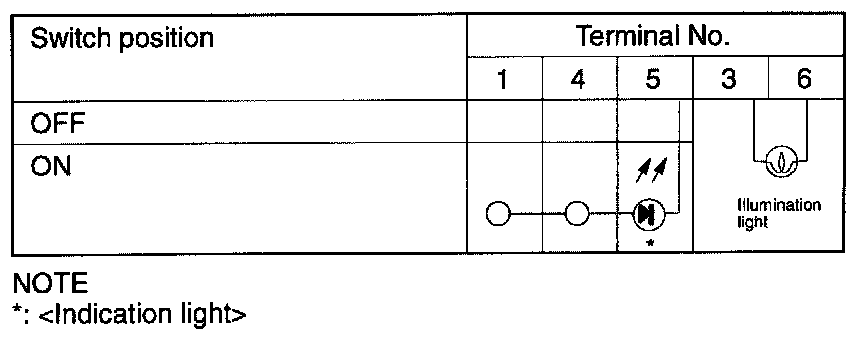

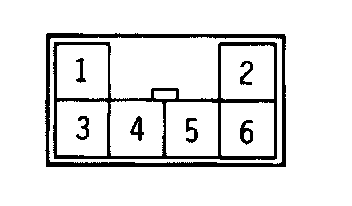

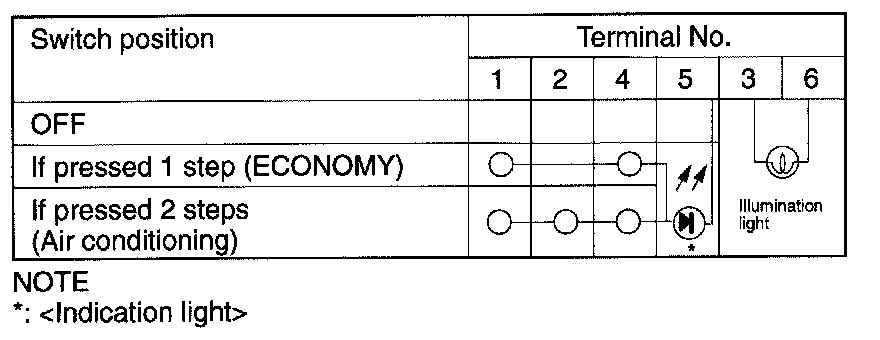

AIR CONDITIONING SWITCH CHECK
