Ignition Cable: Service and Repair

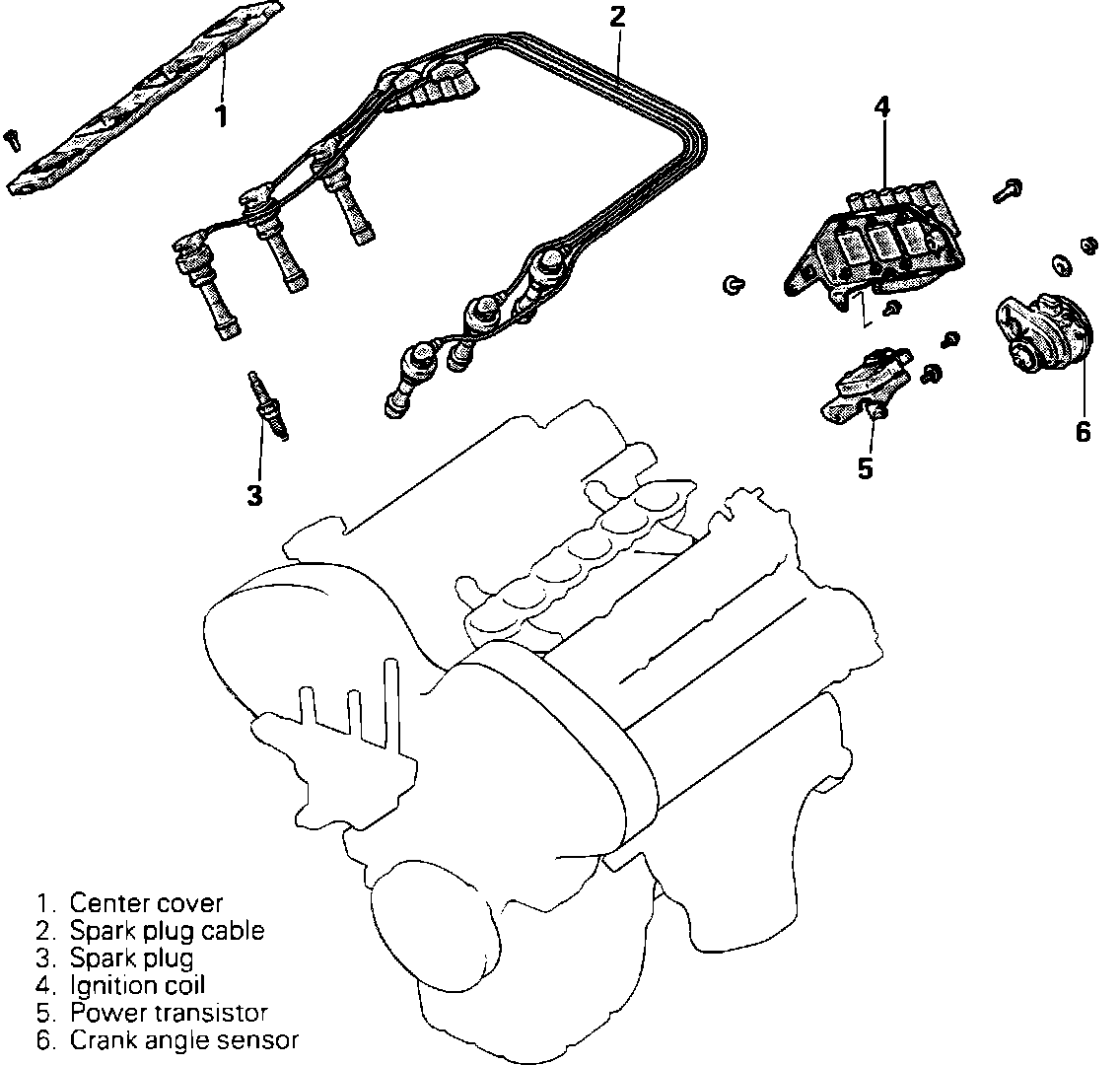

Component Overview:

REMOVAL CAUTIONS:
Remove cables by pulling on the spark plug boot. If the spark plug cable is removed by pulling on the cable, it may be damaged.

REMOVAL:
1. Remove shield on top of cam covers.
2. Grasp plug wires by the boot and pull.


ASSEMBLY:
Install cables according to the engine firing order.
Firing order, 1-2-3-4-5-6
