Oil Pressure Gauge: Testing and Inspection

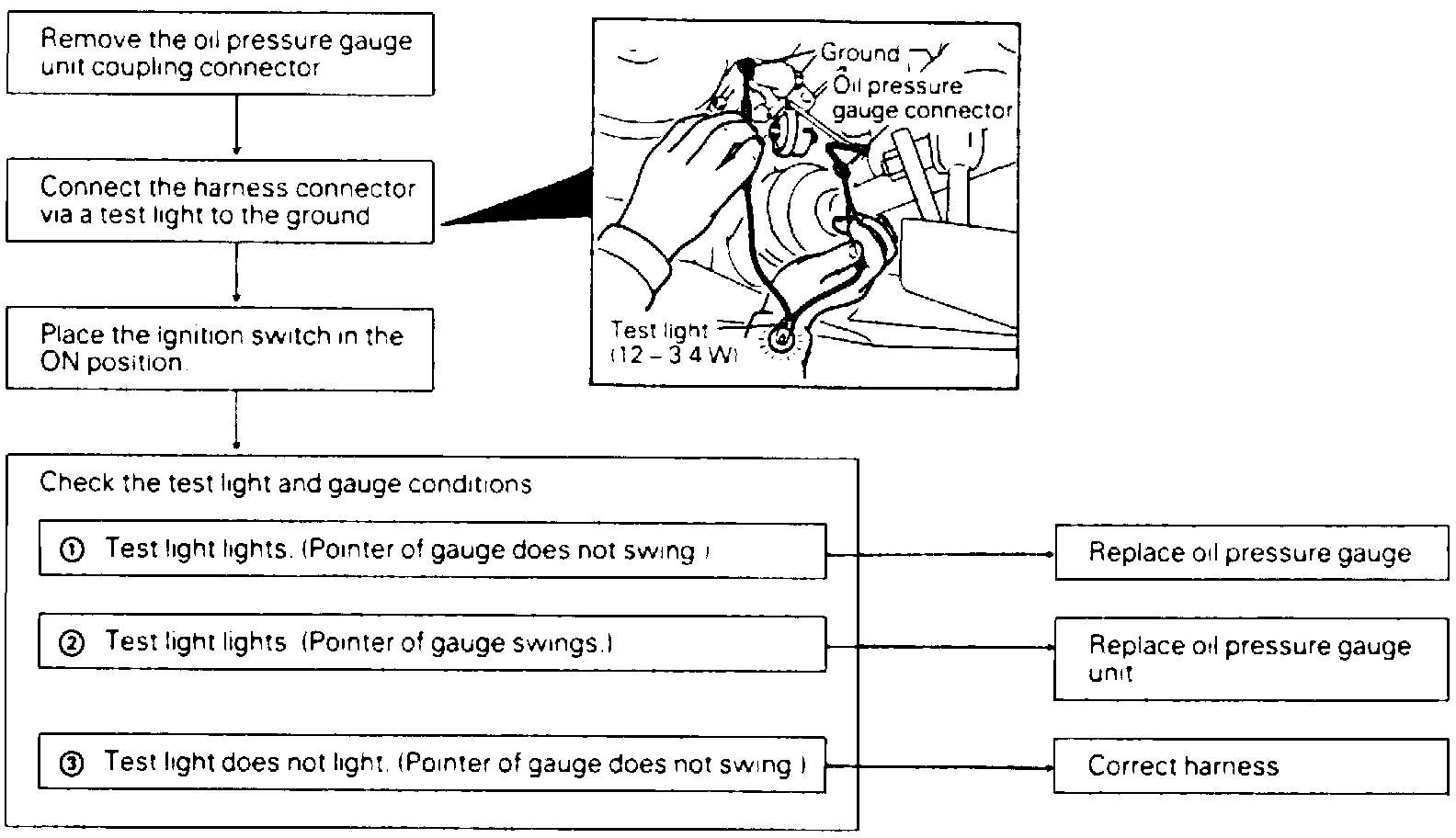

Fig. 10 Oil Pressure Gauge Diagnosis:
Refer to
Fig. 10
for
oil pressure gauge
diagnosis.
