Roll Stopper

1. Remove condenser, then condenser cooling fan assembly and left catalytic converter.

Fig. 6 Engine Roll Stopper Replacement:

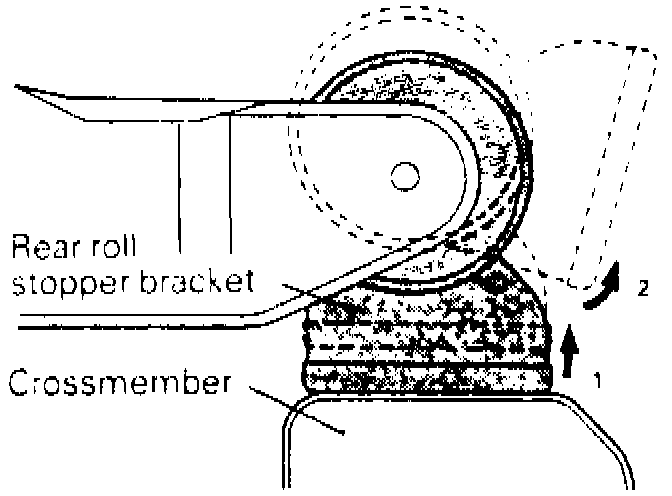

Fig. 7 Rear Roll Stopper Removal:

2. Replace engine front and rear roll stopper brackets in numbered sequence as shown, Fig. 6. Slightly raise rear roll stopper bracket, then twist rear roll stopper bracket up and lift upward to remove, Fig. 7.

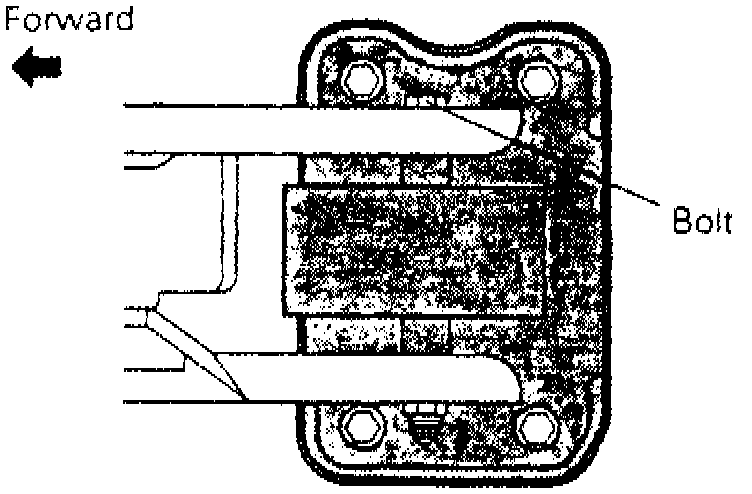

Fig. 8 Rear Roll Stopper Installation:

3. When installing rear roll stopper bracket, install bracket and bracket to engine bolt as shown, Fig. 8.
