Except Roll Stopper

1. Raise and support engine to remove weight off mounts using suitable engine jack.
2. Replace engine mounts, moving cruise control actuator out of the way.

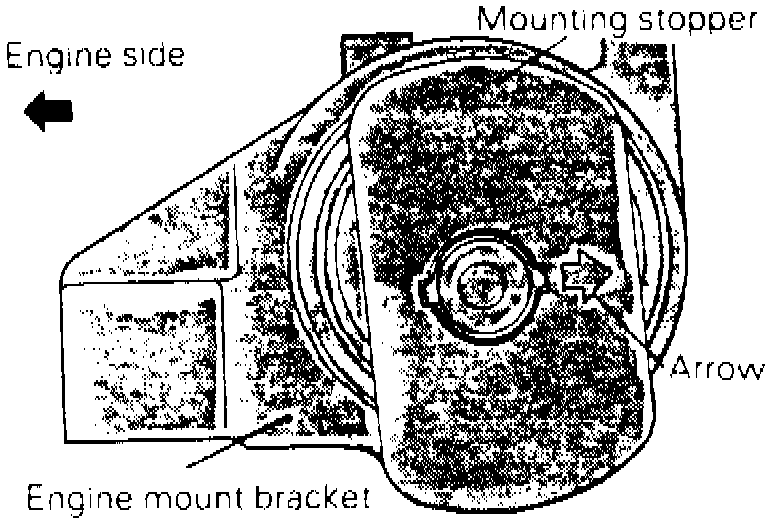

Fig. 3 Engine Mounting Stopper Installation:





3. Ensure arrow mark on mounting stopper is pointing away from engine when installing engine mounting bracket, Fig. 3.
