Crankshaft Main Bearing: Application and ID





INSTALLATION OF CRANKSHAFT BEARING

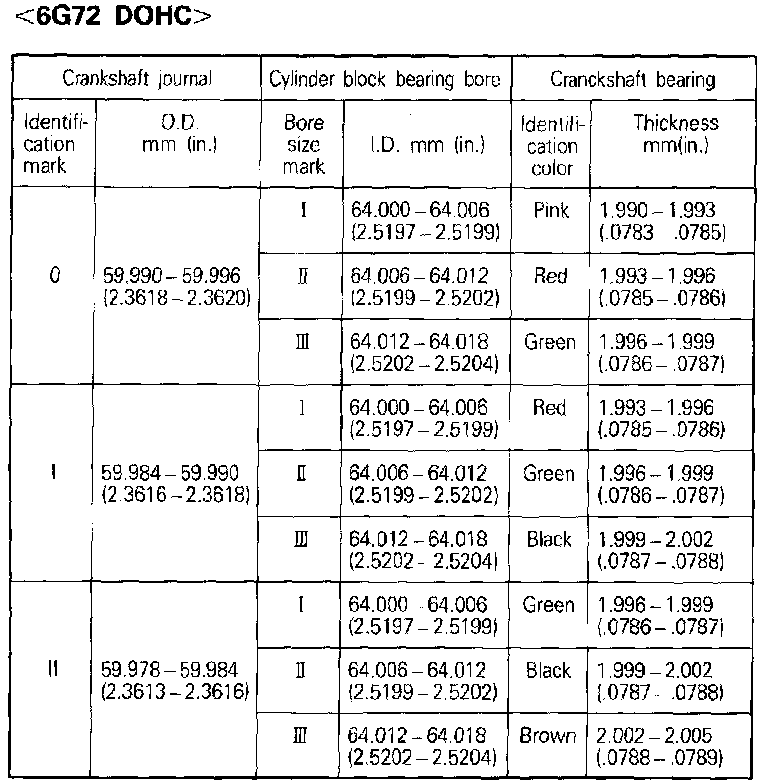

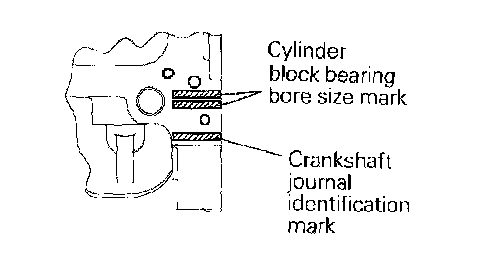

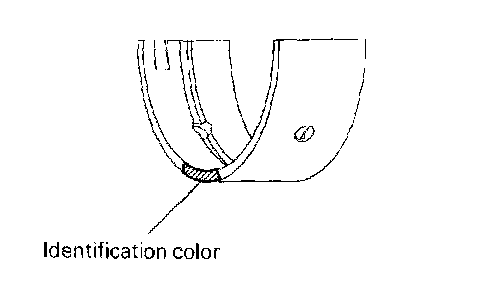

(1) When replacing the connecting rod hearing select proper one according to the identification mark inscribed on the crankshaft.
