Thermostat: Service and Repair

1. Drain coolant into an appropriate container.

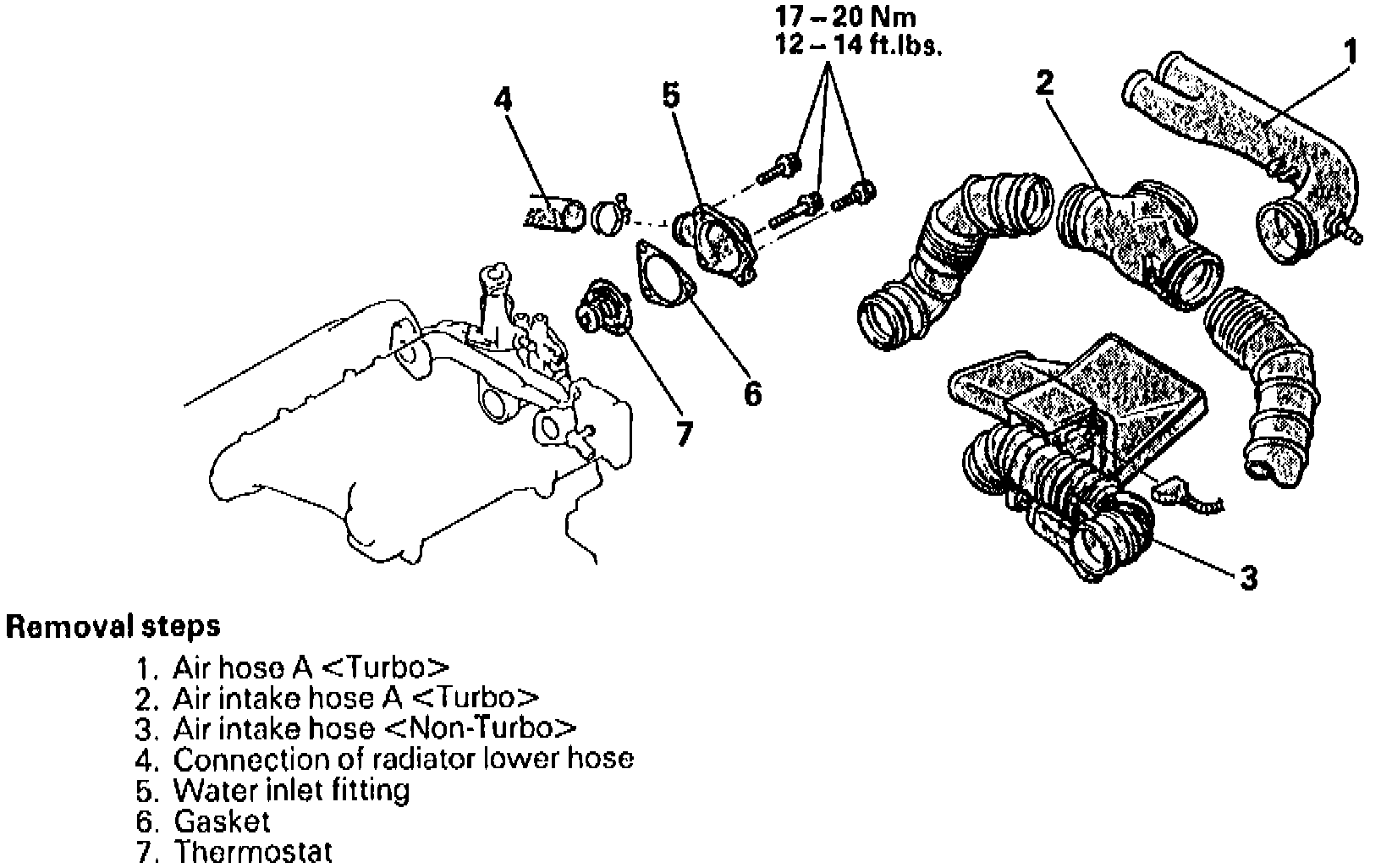

Fig. 45 Thermostat Replacement:

2. Remove thermostat in numbered sequence as shown, Fig. 45.
3. Reverse procedure to install, noting the following:

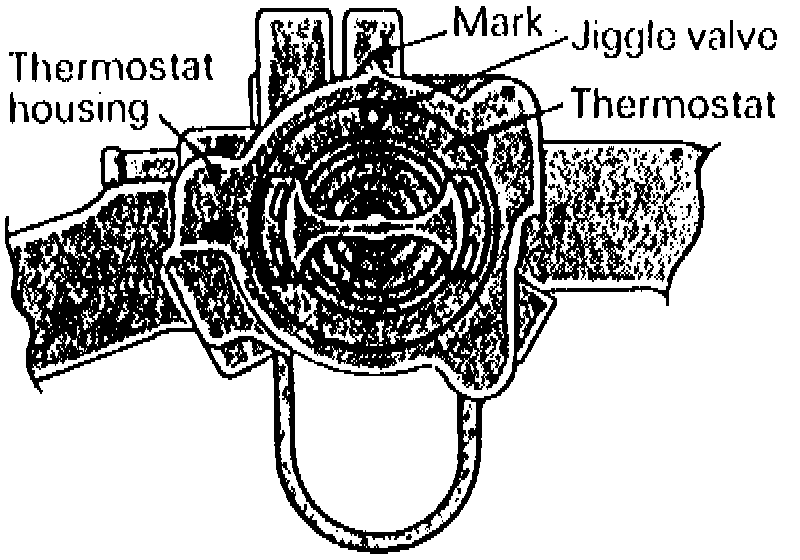

Fig. 46 Thermostat Installation:

a. Install thermostat with jiggle valve lined up with mark on thermostat housing, Fig. 46.

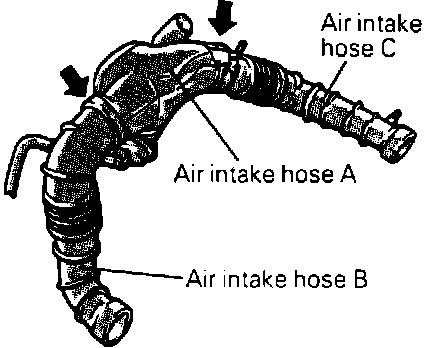

Fig. 57 Installing Air Intake Hose "A":

b. Align air intake hose "A" notches with marks on air intake hoses "B" and "C". Insert hoses into air intake hose "A" until bottomed out, Fig. 47.
