Home >> Mitsubishi >> 1995 >> 3000GT Convertible AWD V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Radiator >> Service and Repair

Radiator: Service and Repair

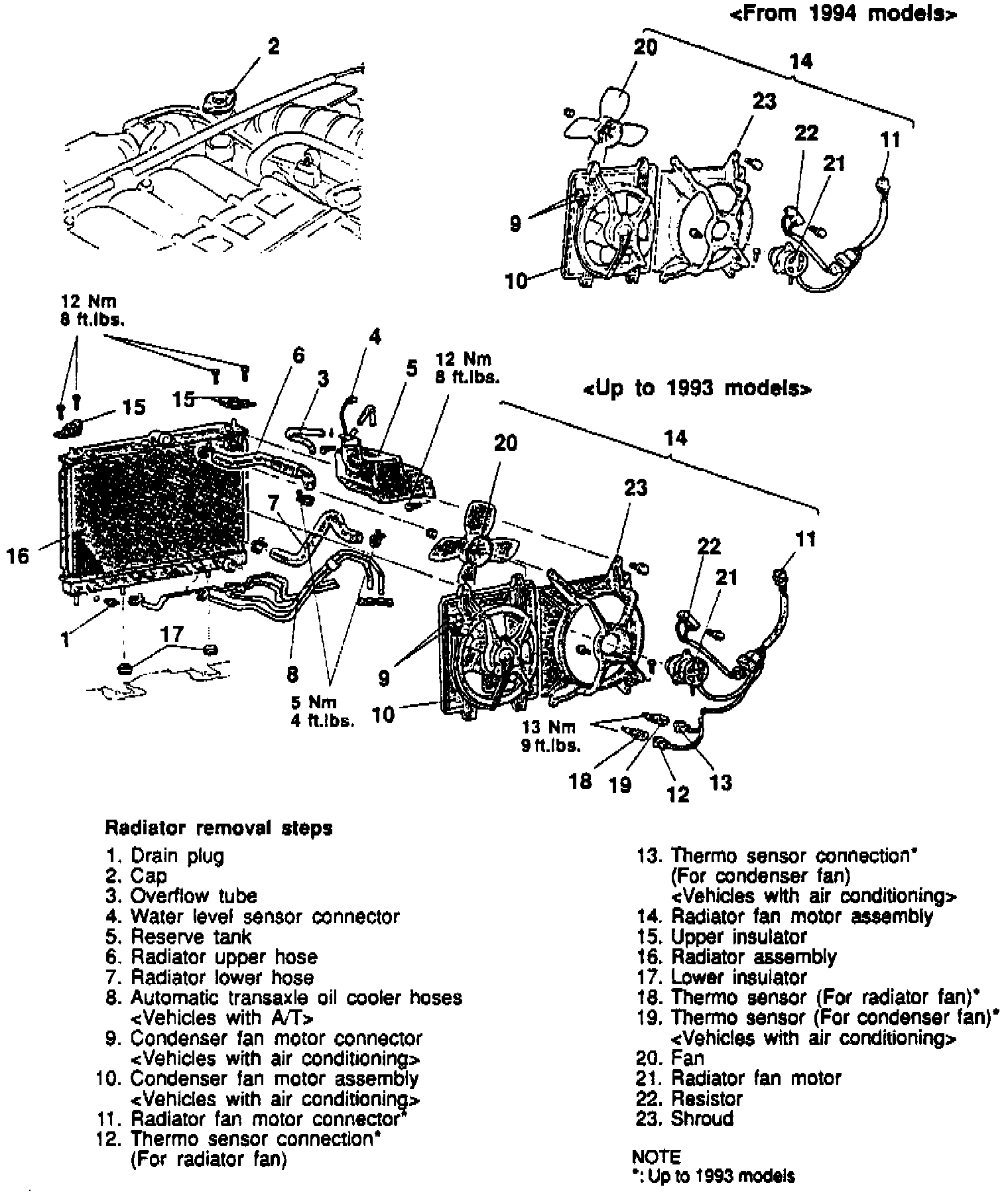

Fig. 50 Radiator Replacement:





Refer to Fig. 50, when replacing radiator.
