Radiator Cooling Fan Motor: Service and Repair

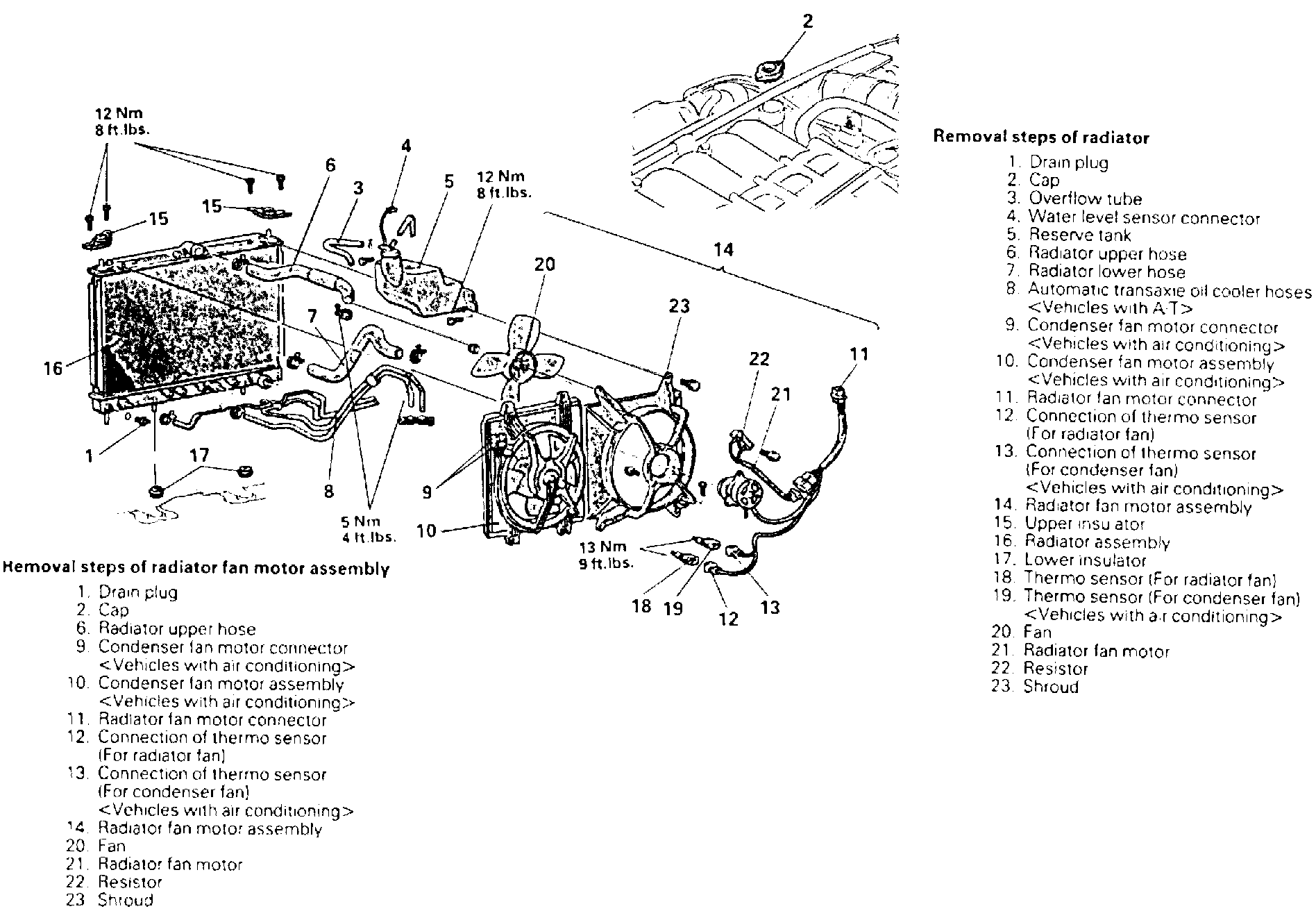

Fig. 51 Cooling Fan System Component Replacement:





Refer to Fig. 51 for component replacement.
