Temperature Gauge: Testing and Inspection

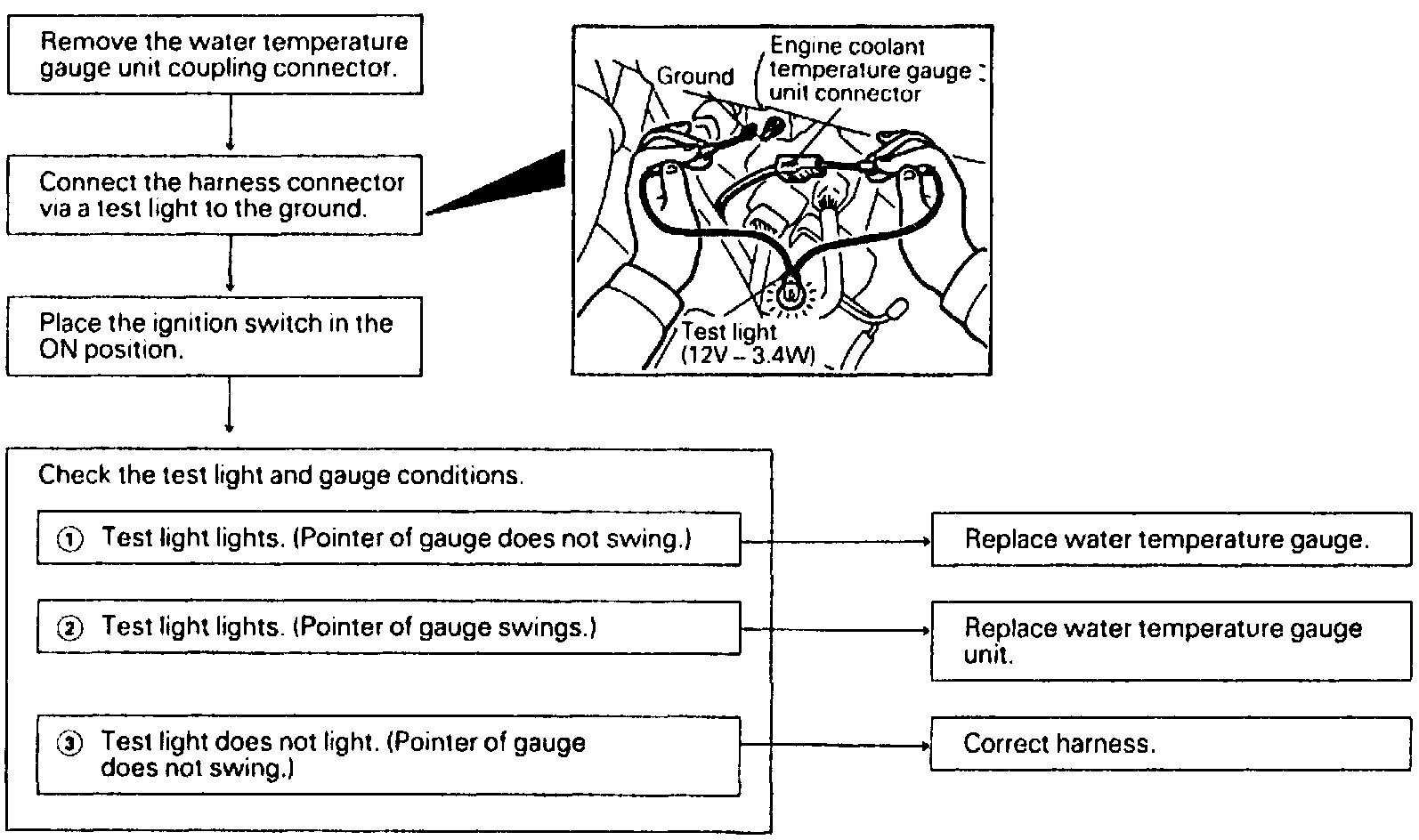

Fig. 9 Coolant Temperature Gauge Diagnosis:
Refer to
Fig. 9
for coolant temperature gauge diagnosis.
