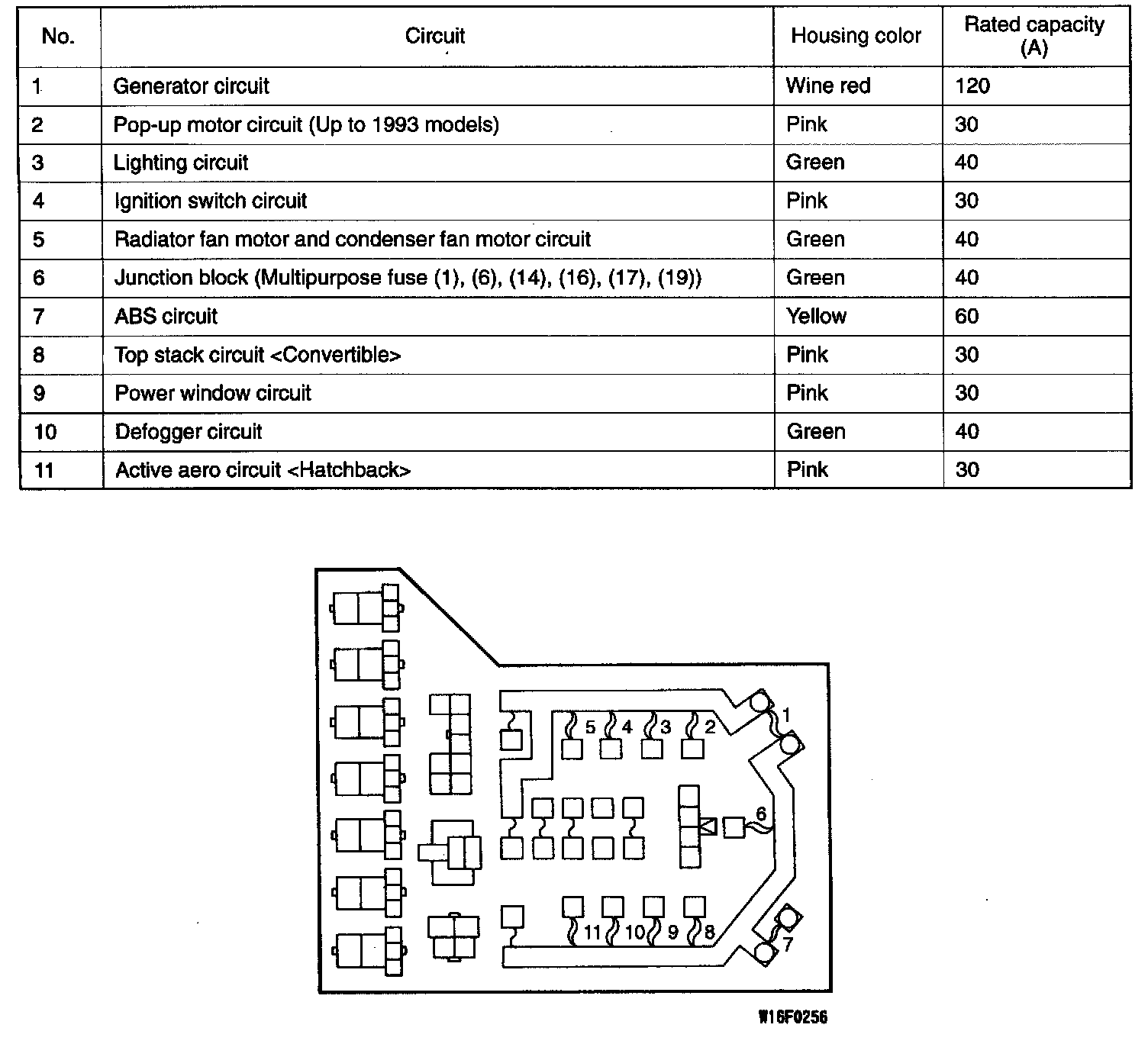

Centralized Junction Fusible Link
Centralized Junction Fusible Link
(Relay box in engine compartment):
