Home >> Mitsubishi >> 1995 >> 3000GT Convertible AWD V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Fog/Driving Lamp

Fog/Driving Lamp

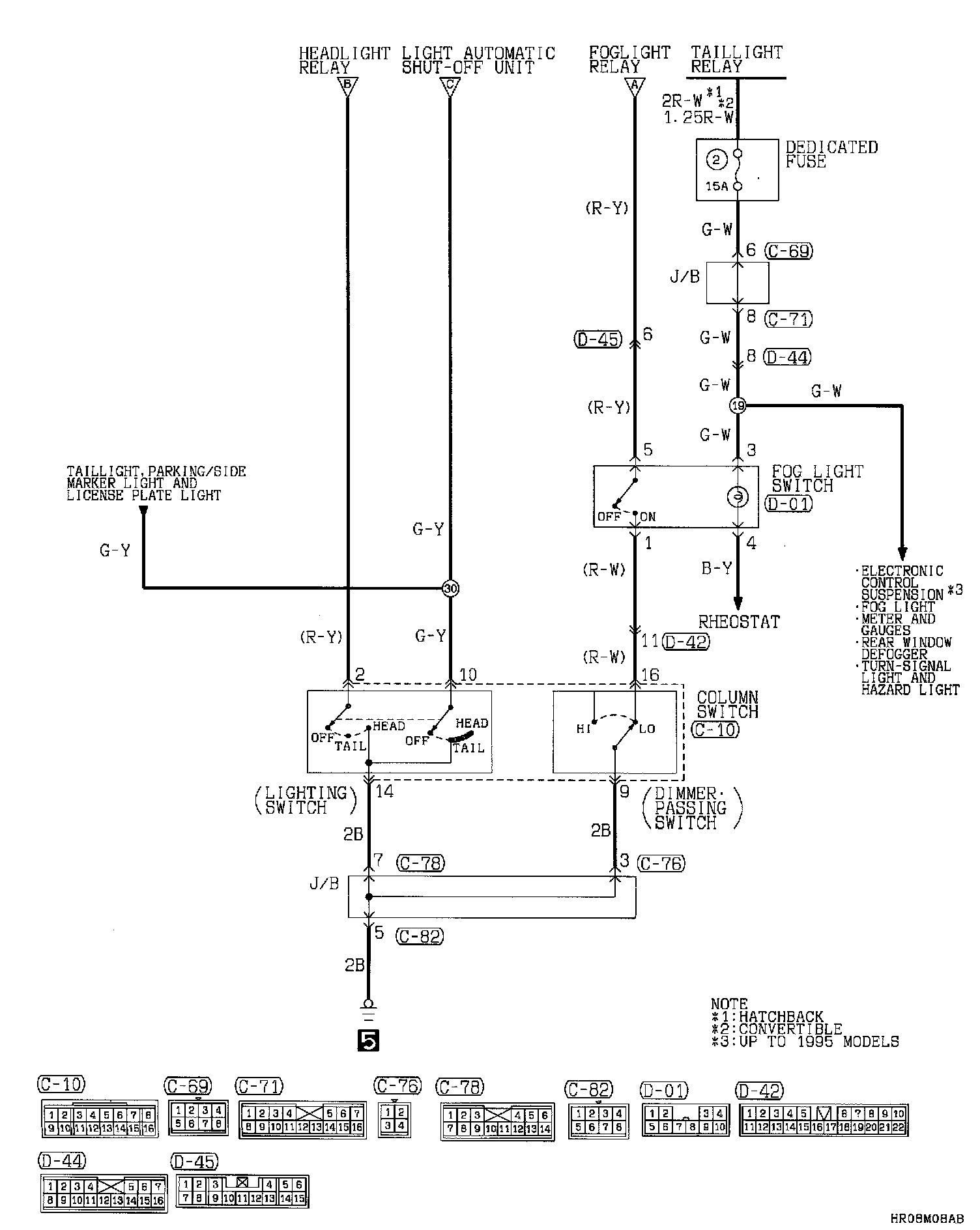

Part 1 Of 2:

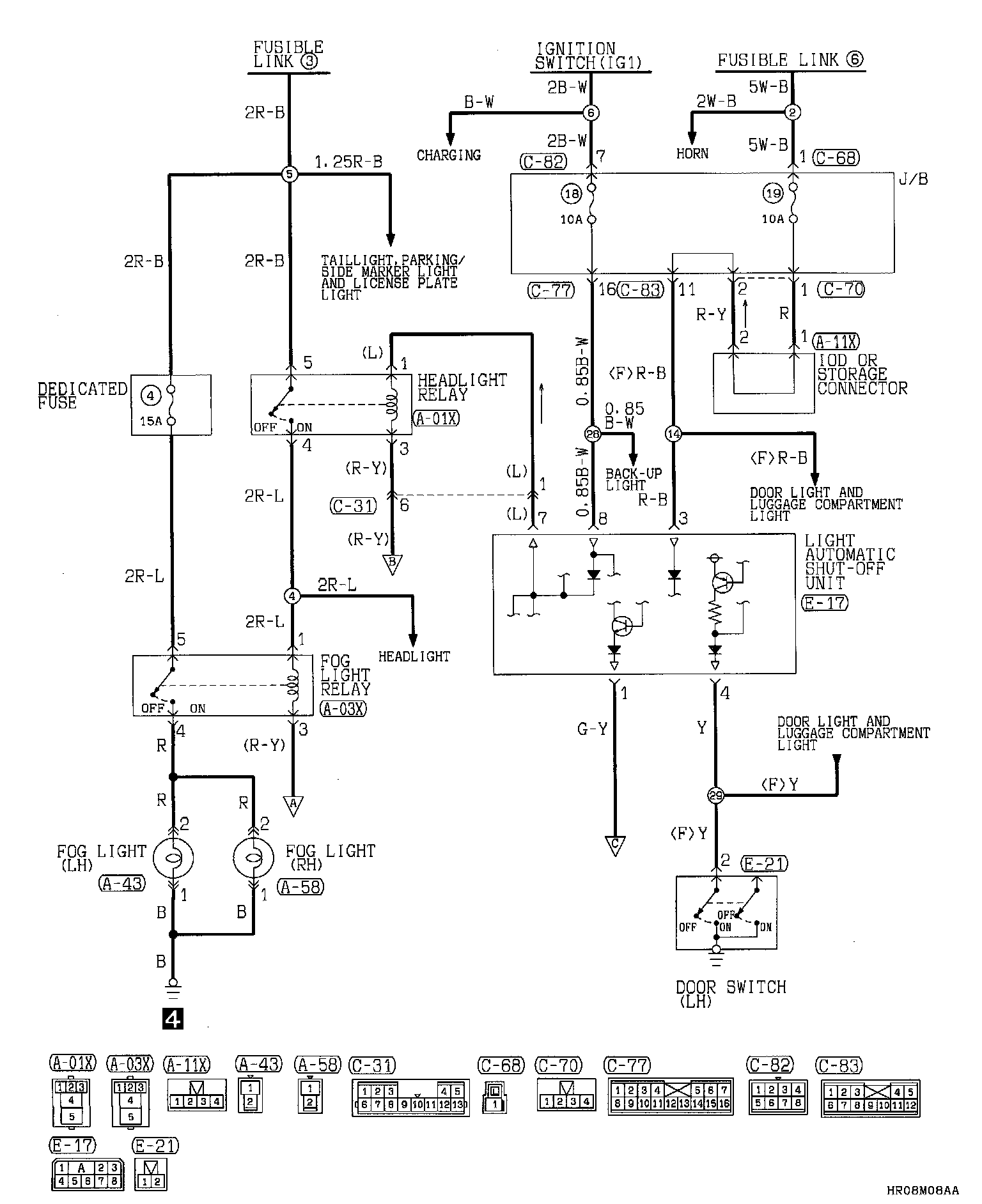

Part 2 Of 2:
