3000GT Convertible AWD V6-2972cc 3.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>

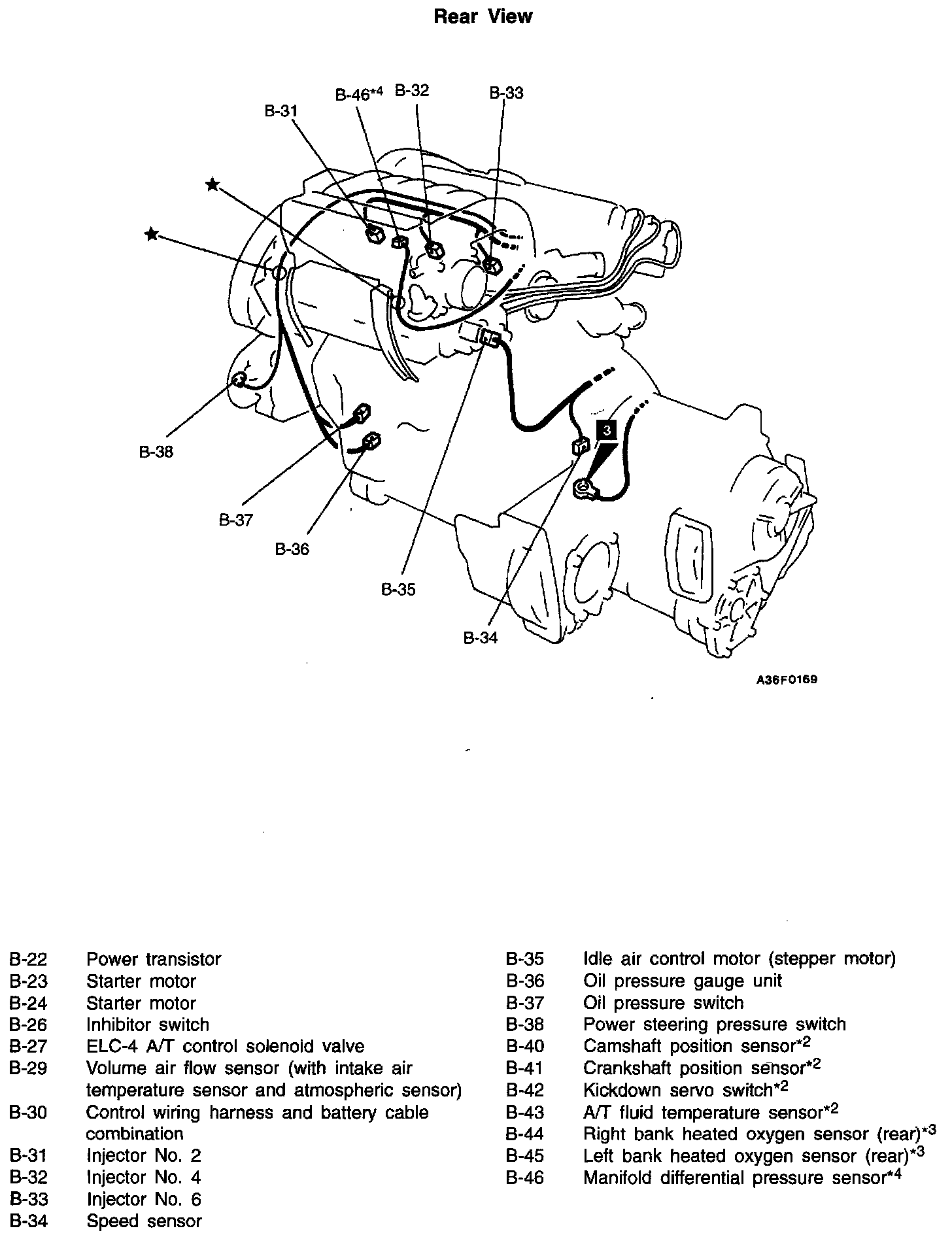

B Connectors - Engine Compartment
>>
A/T
>>
Rear View
Rear View
