7. Inspection of Clutch Pedal Position Switch Circuit, M/T





No. 7 Inspection of Clutch Pedal Position Switch Circuit

DESCRIPTION OF OPERATION
When the clutch pedal is depressed during vehicle speed control, the contact of the clutch pedal position switch is closed. As a result, a cancel signal is input to the control unit which internally interrupts the power supply to the vacuum pump assembly drive circuit for cancellation of vehicle speed control.

TROUBLESHOOTING HINTS

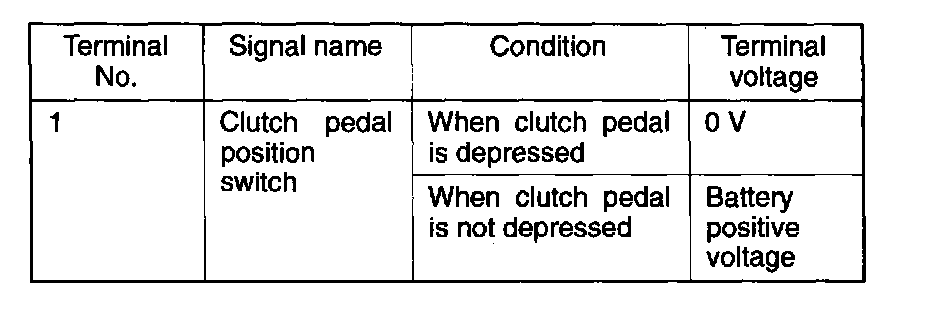

ECU Terminal Voltage:
