3. Inspection of Indicator Light Circuit

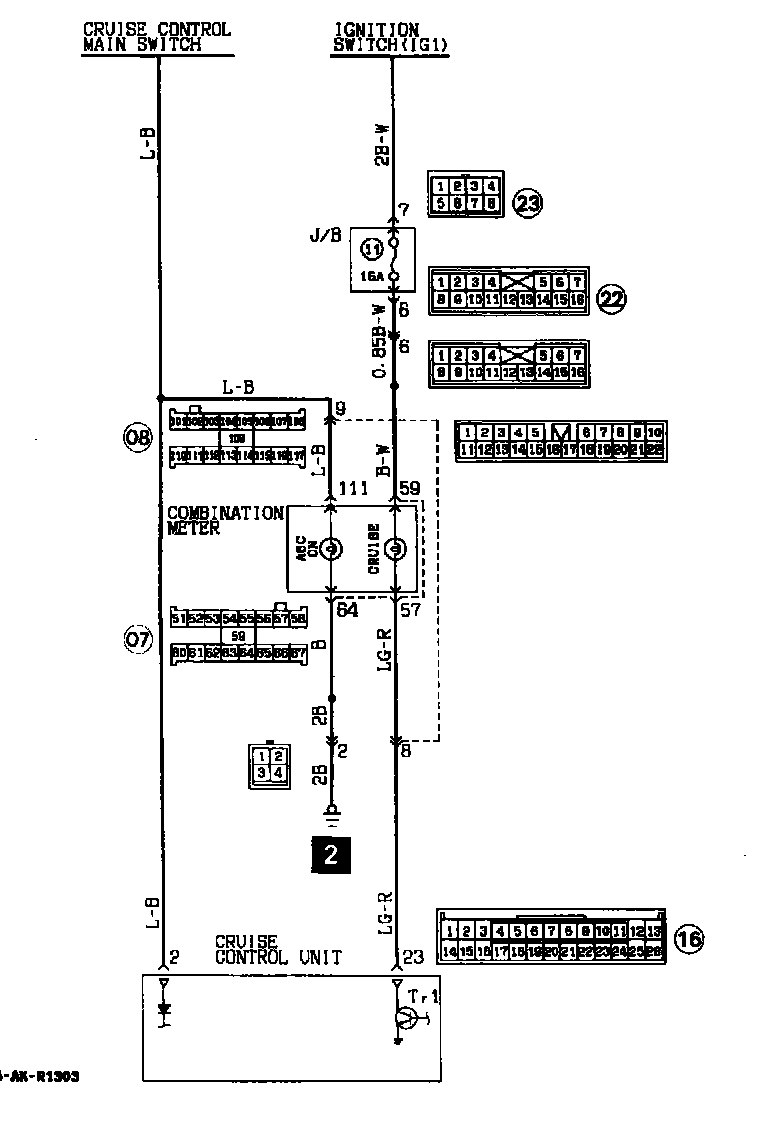

No. 3 Inspection of Indicator Light Circuit

DESCRIPTION OF OPERATION

1. Cruise control ON (ASC ON) indicator light
Located in the combination meter, it lights as soon as the main switch is set to ON.

2. Cruise control (CRUISE) indicator light
During cruise control operation, transistor Tr1 in the control unit is kept in the ON state to keep the indicator light on.

TROUBLESHOOTING HINTS

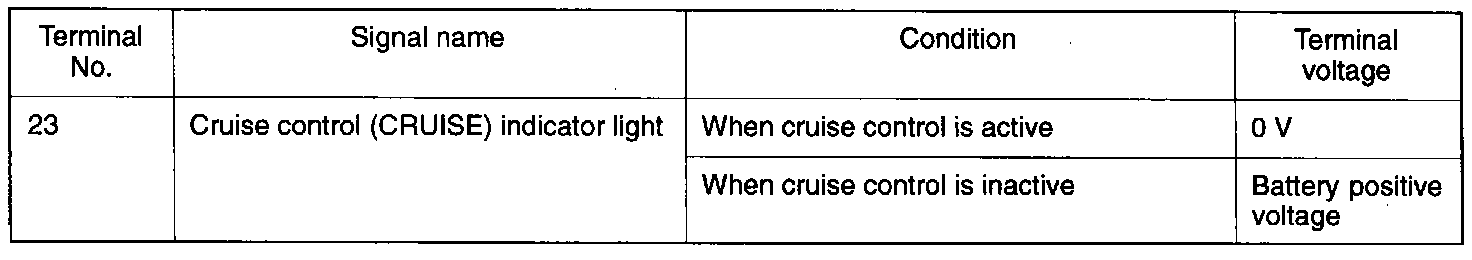

ECU Terminal Voltage:
