Antilock Brake System - Diagnosis: Overview
NO.: TSB-96-35-009DATE: September, 1996
MODEL: All with ABS
SUBJECT:
ANTI LOCK BRAKE SYSTEM DIAGNOSIS
PURPOSE
This bulletin provides a quick up to date diagnostic reference for all Anti Lock Brake Systems (ABS) used on Mitsubishi Motors vehicles except for those having rear wheel only systems.
Information on theory or description of operation can be obtained through the Anti Lock Brake Systems Technical Training course available to all MMSA dealer technicians.
Follow the general diagnostic instructions and then refer to the Specific Diagnostics for the vehicle you are interested in. These Specific Diagnostic sections, pages 6-17, tell which service manual pages to look at, describe any Technical Service Bulletins that may apply, and provide notes that may help in diagnosis.
AFFECTED MODELS
All with four wheel Anti Lock Braking Systems.

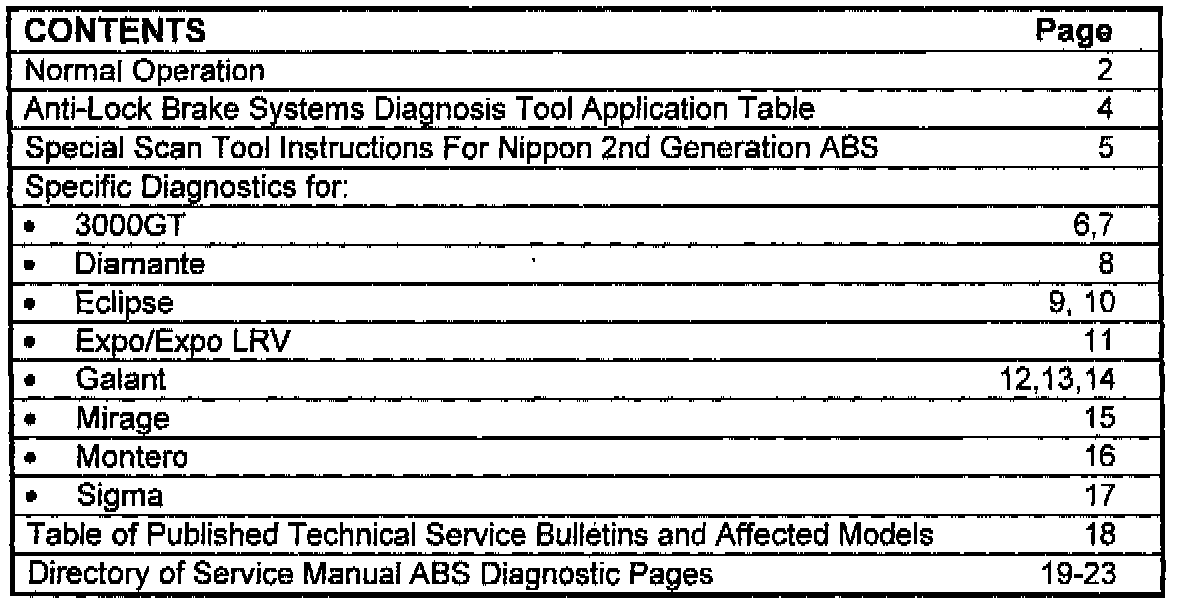

TABLE OF CONTENTS

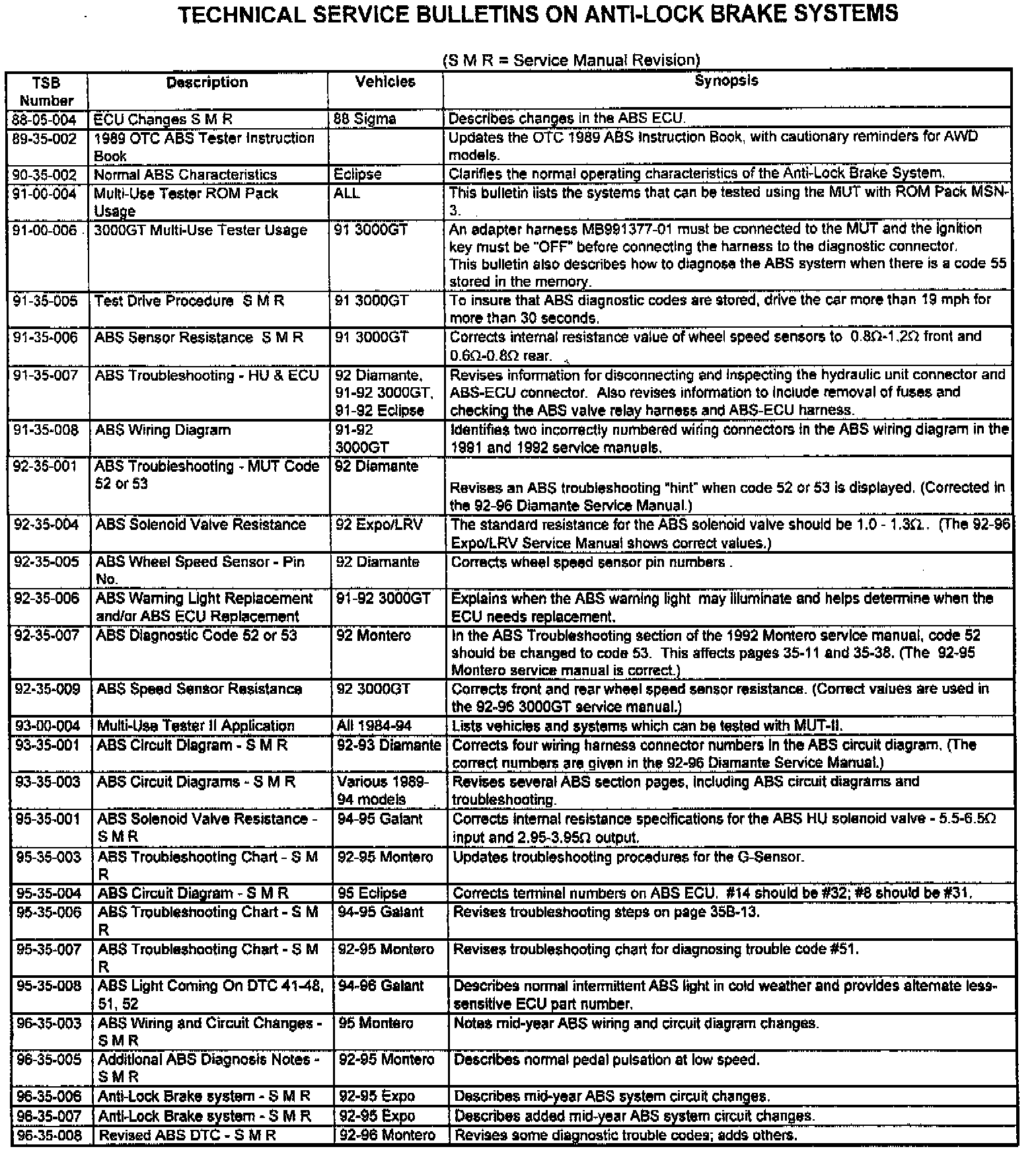

TECHNICAL SERVICE BULLETINS ON ANTI LOCK BRAKE SYSTEM

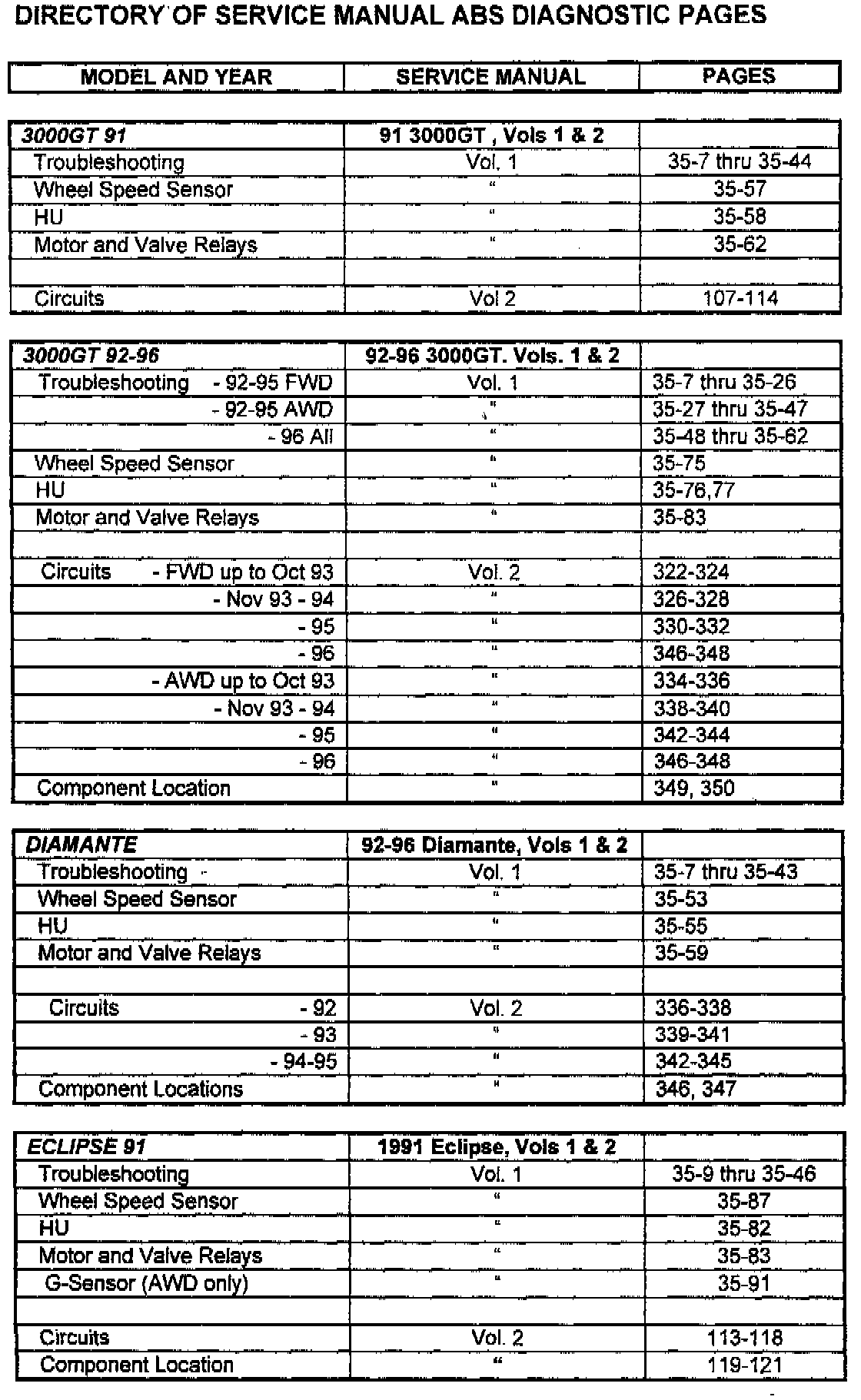

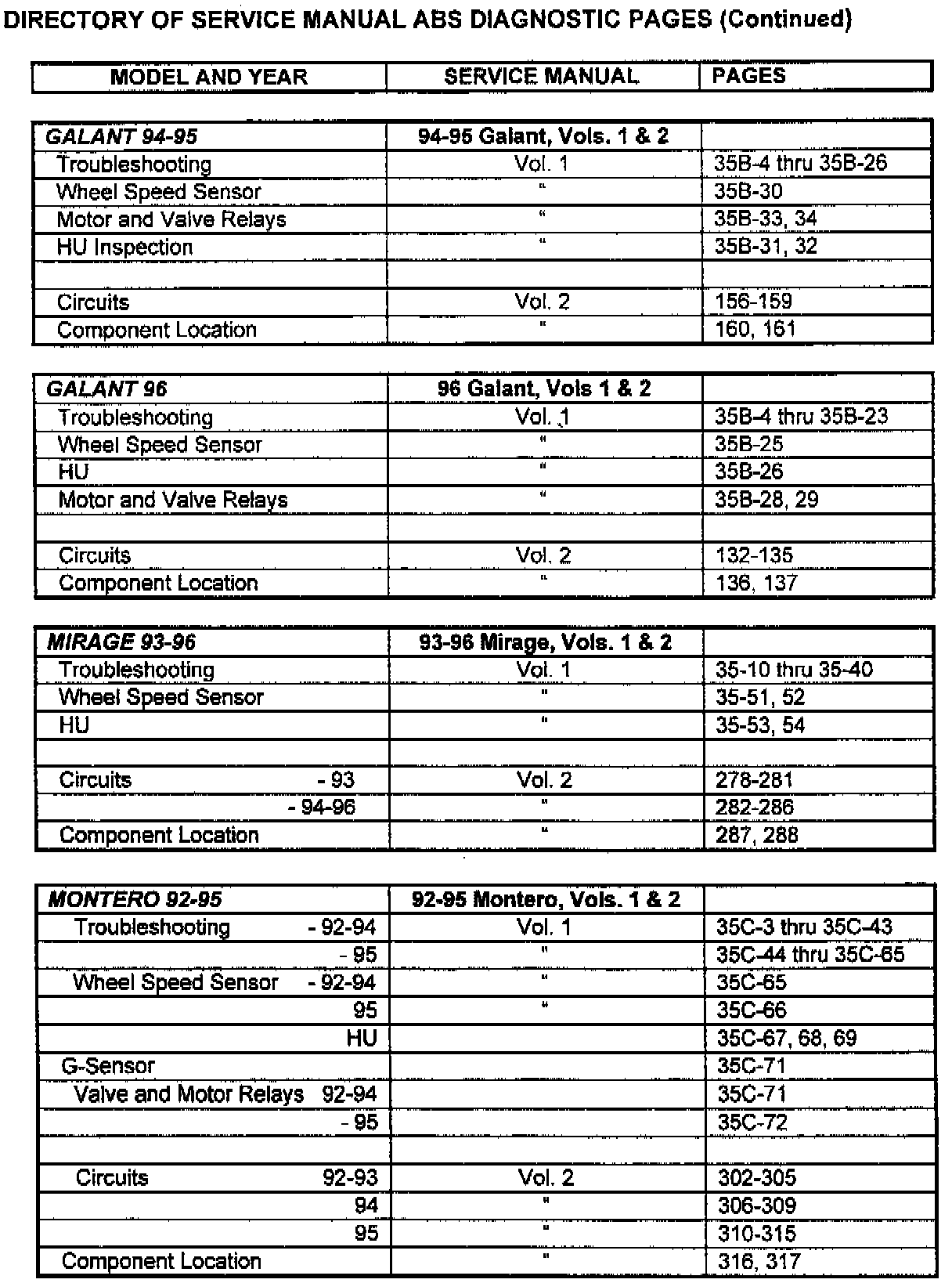

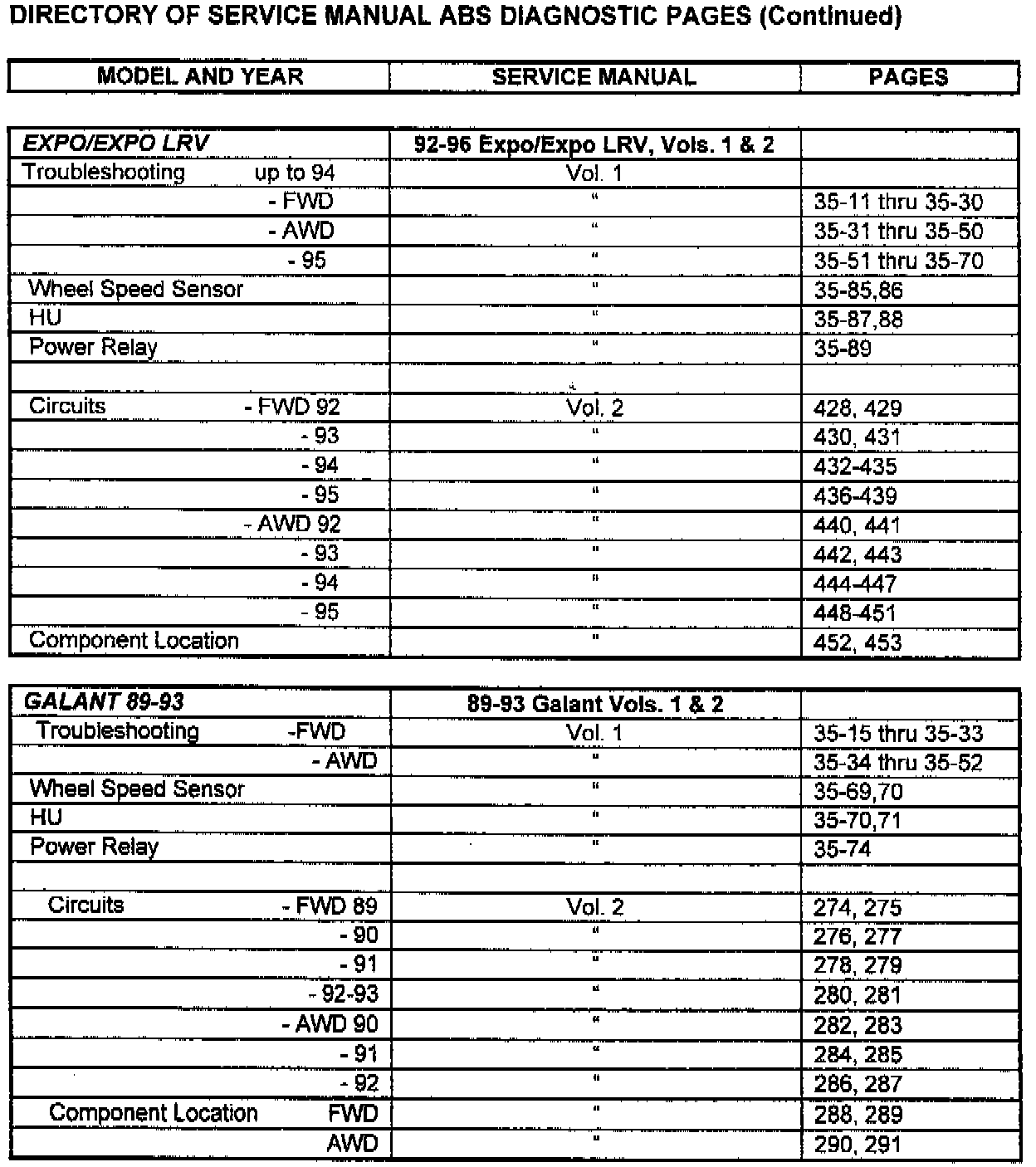

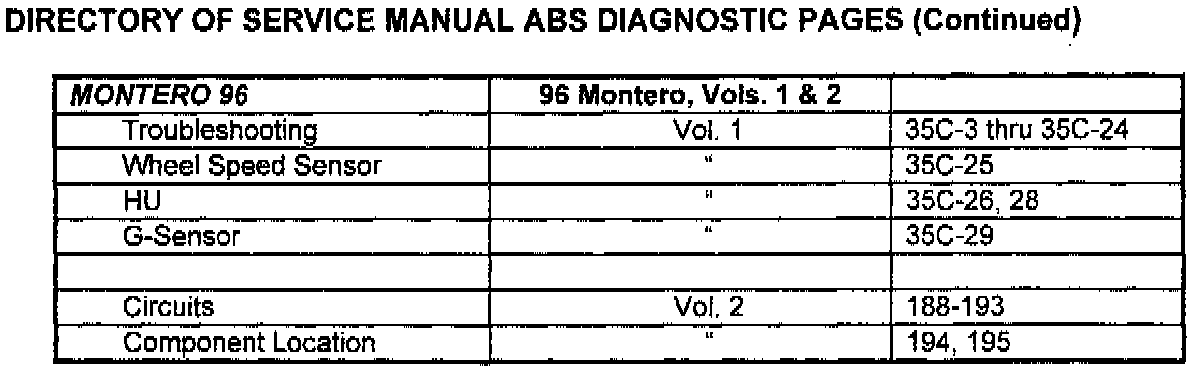

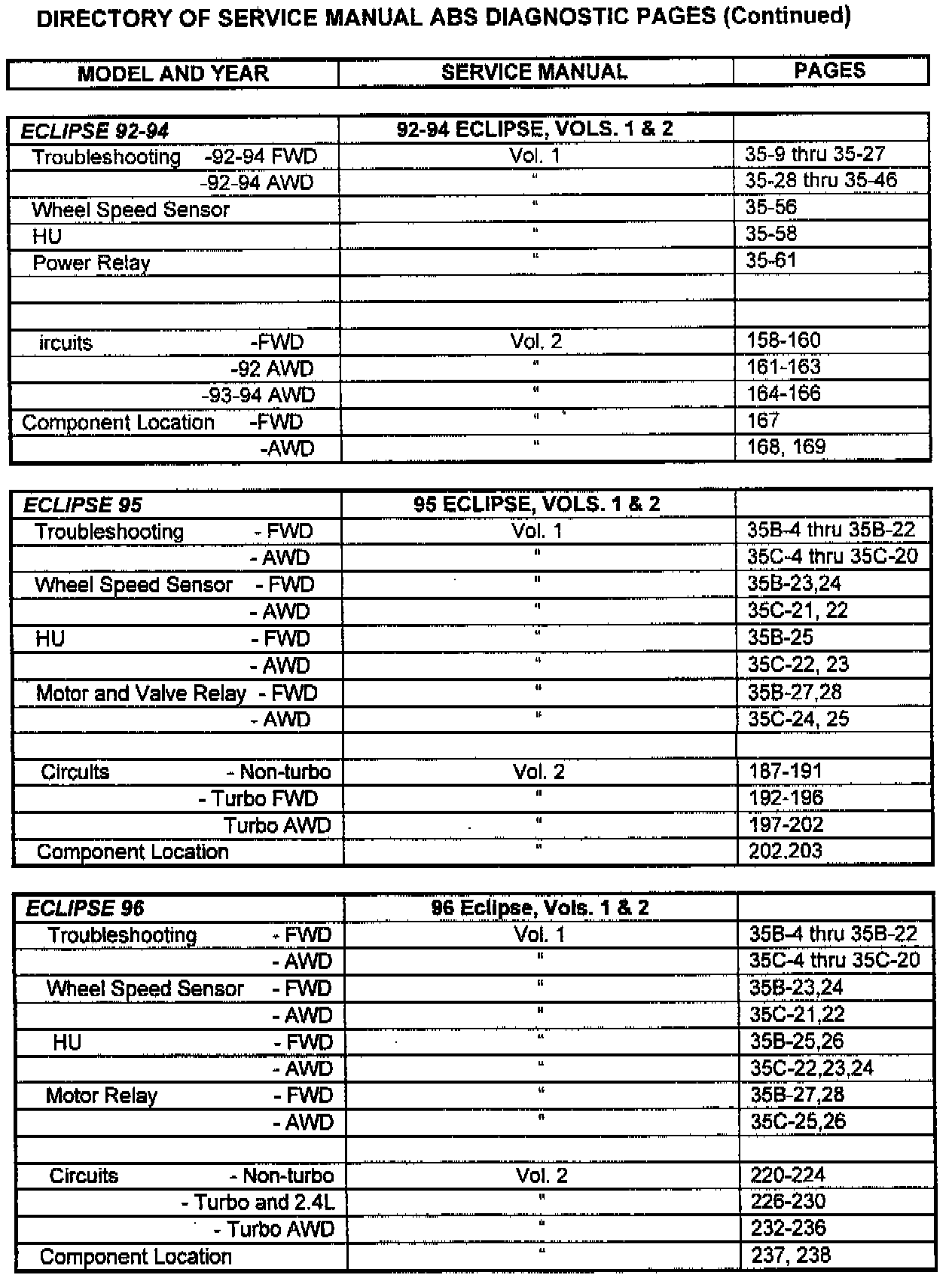

DIRECTORY OF SERVICE MANUAL ABS DIAGNOSTIC PAGES
