Rear

1. Raise and support vehicle and remove wheel.
2. Remove brake caliper.

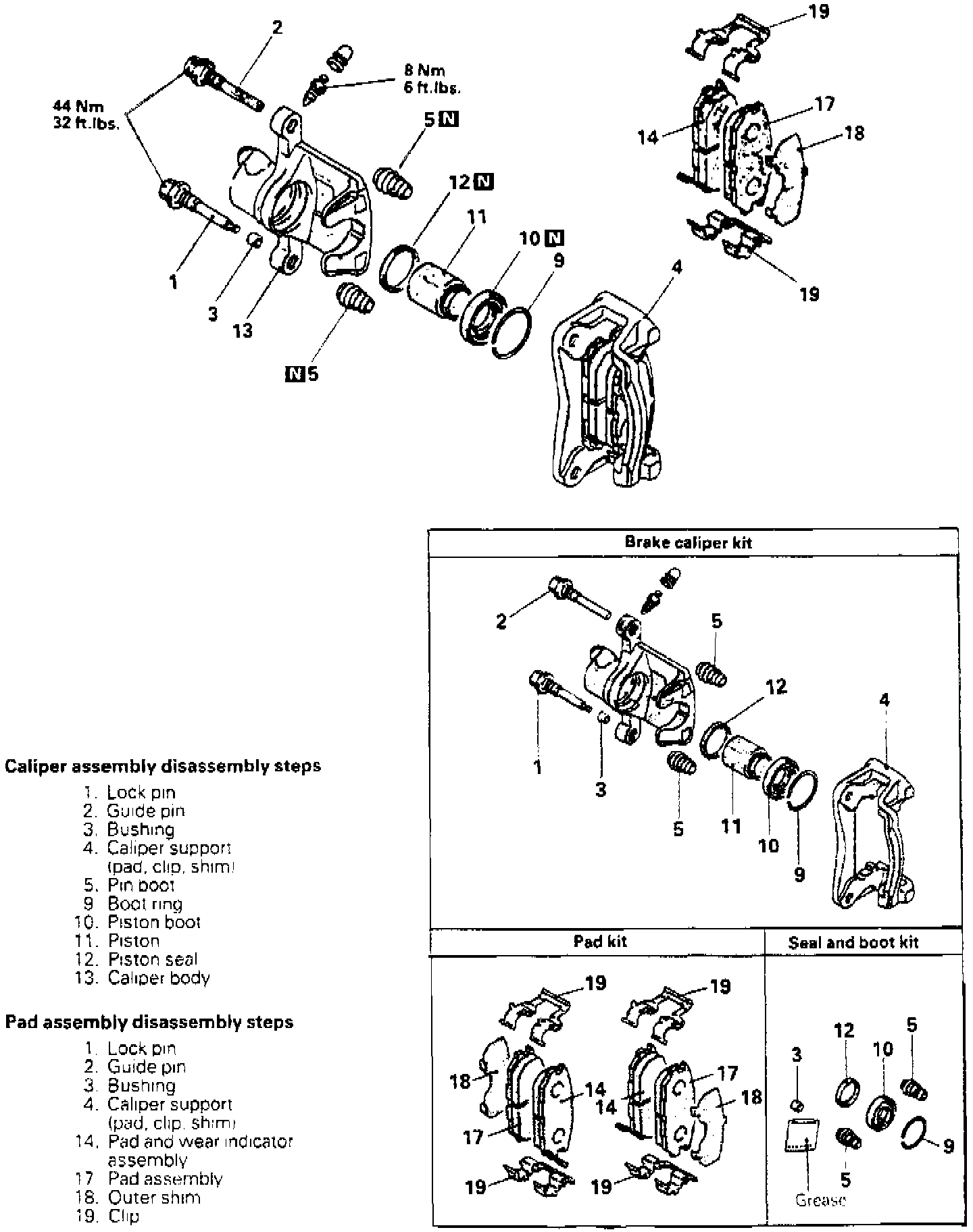

Fig. 6 Exploded View Of Rear Disc Brake Caliper:

3. Disassemble caliper assembly in numbered sequence shown in Fig. 6, noting the following:
a. Protect caliper body with shop towel. Blow compressed air through brake hose opening to remove piston boot and piston.
b. Remove piston seal using finger.
c. Clean piston and inner cylinder using alcohol or brake fluid.
4. Reverse numbered sequence in Fig. 6 to assemble caliper. Match guide and lockpins identification marks with marks on caliper body when installing.
