Home >> Mitsubishi >> 1995 >> 3000GT Convertible AWD V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> A - ABS Warning Light Does Not Light at All

A - ABS Warning Light Does Not Light at All

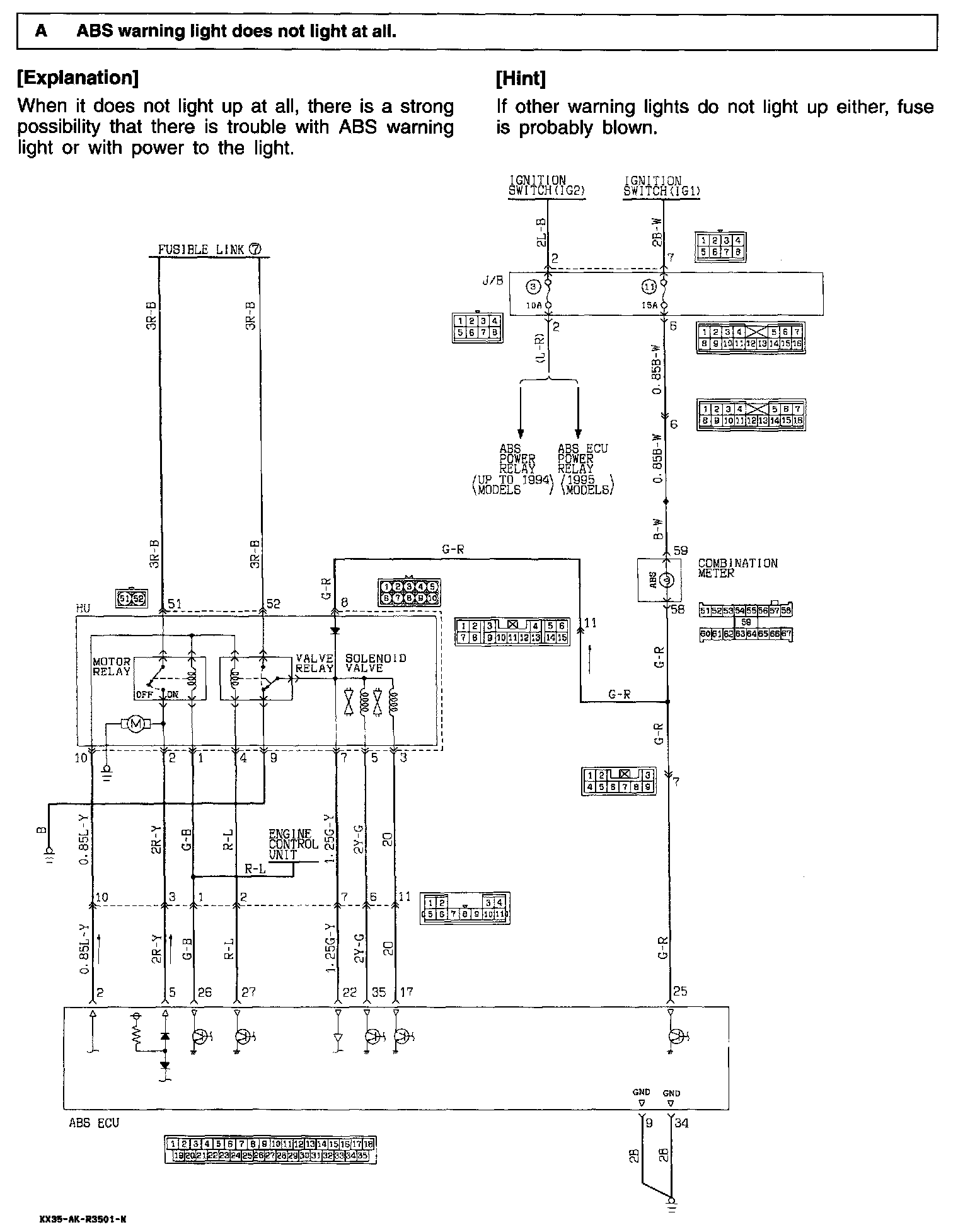

Part 1:

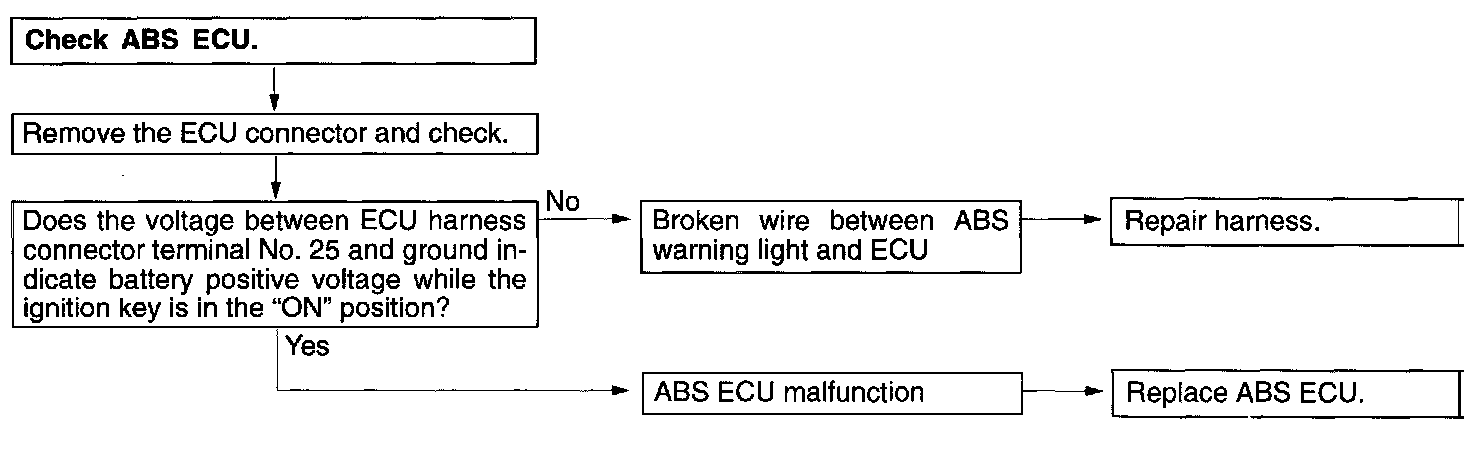

Part 2:

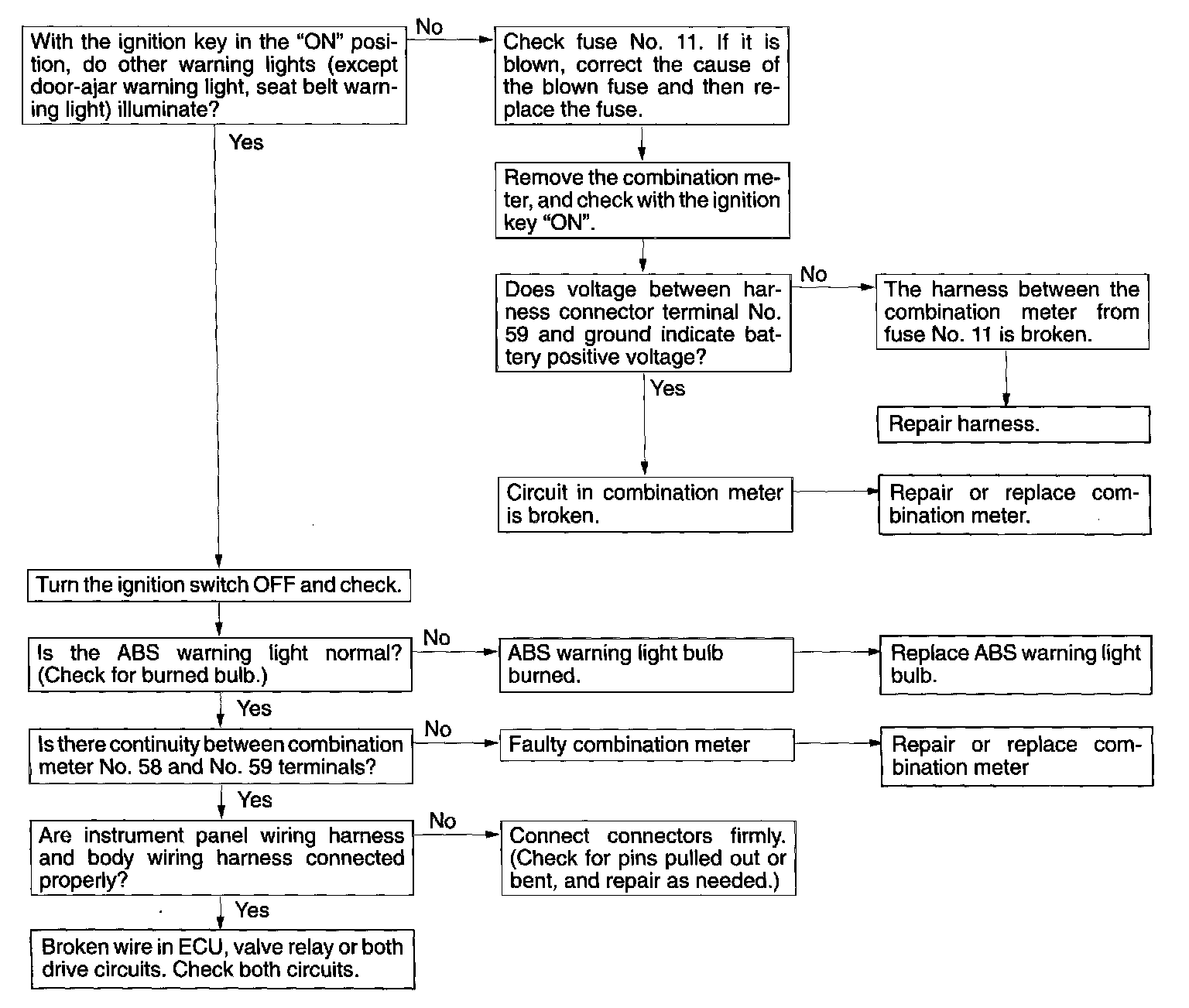

Part 3:

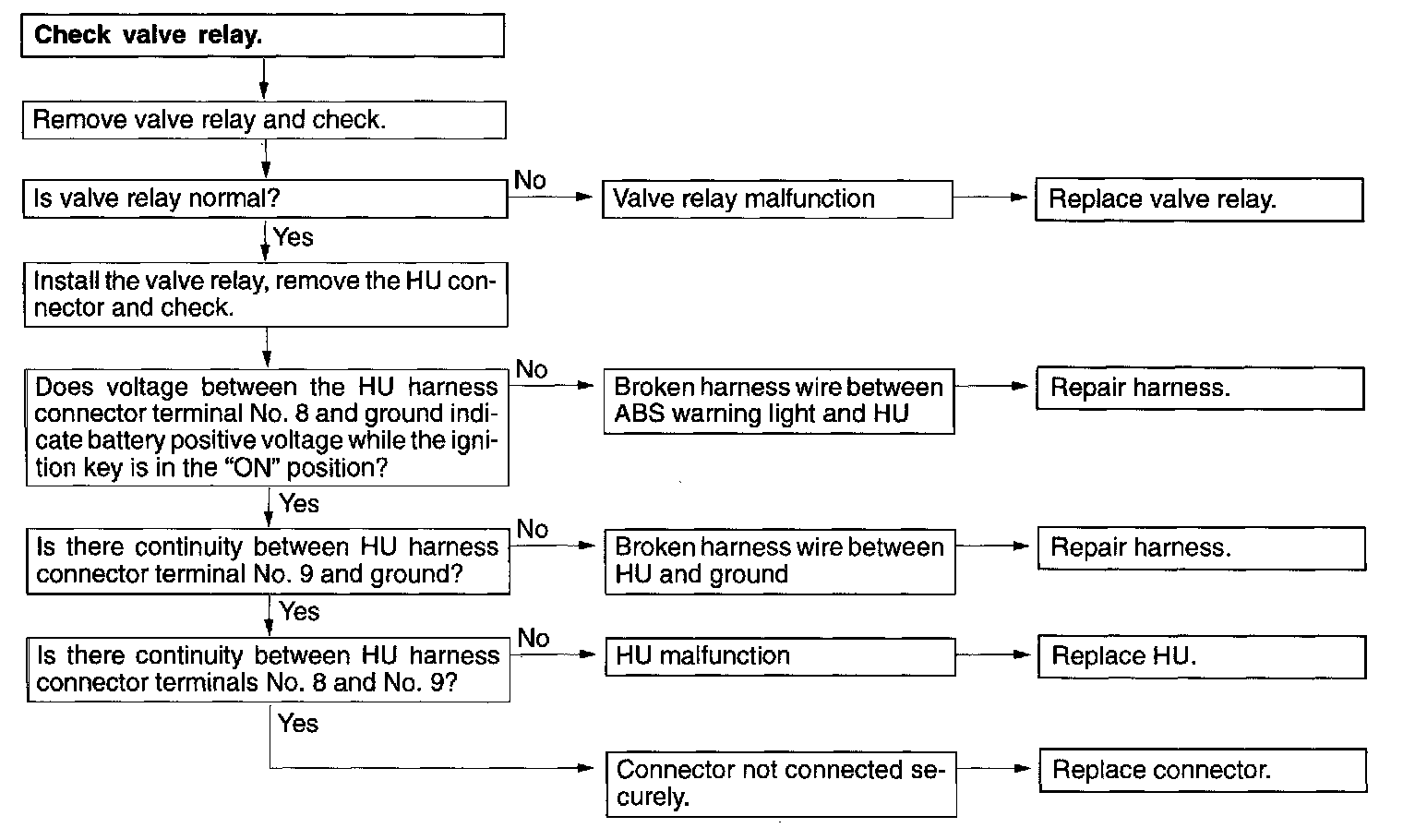

Part 4:





TEST A - WARNING LIGHT DOES NOT LIGHT AT ALL
