TROUBLESHOOTING (ABS-FWD)

Confirm condition in the following way and diagnosis accordingly.

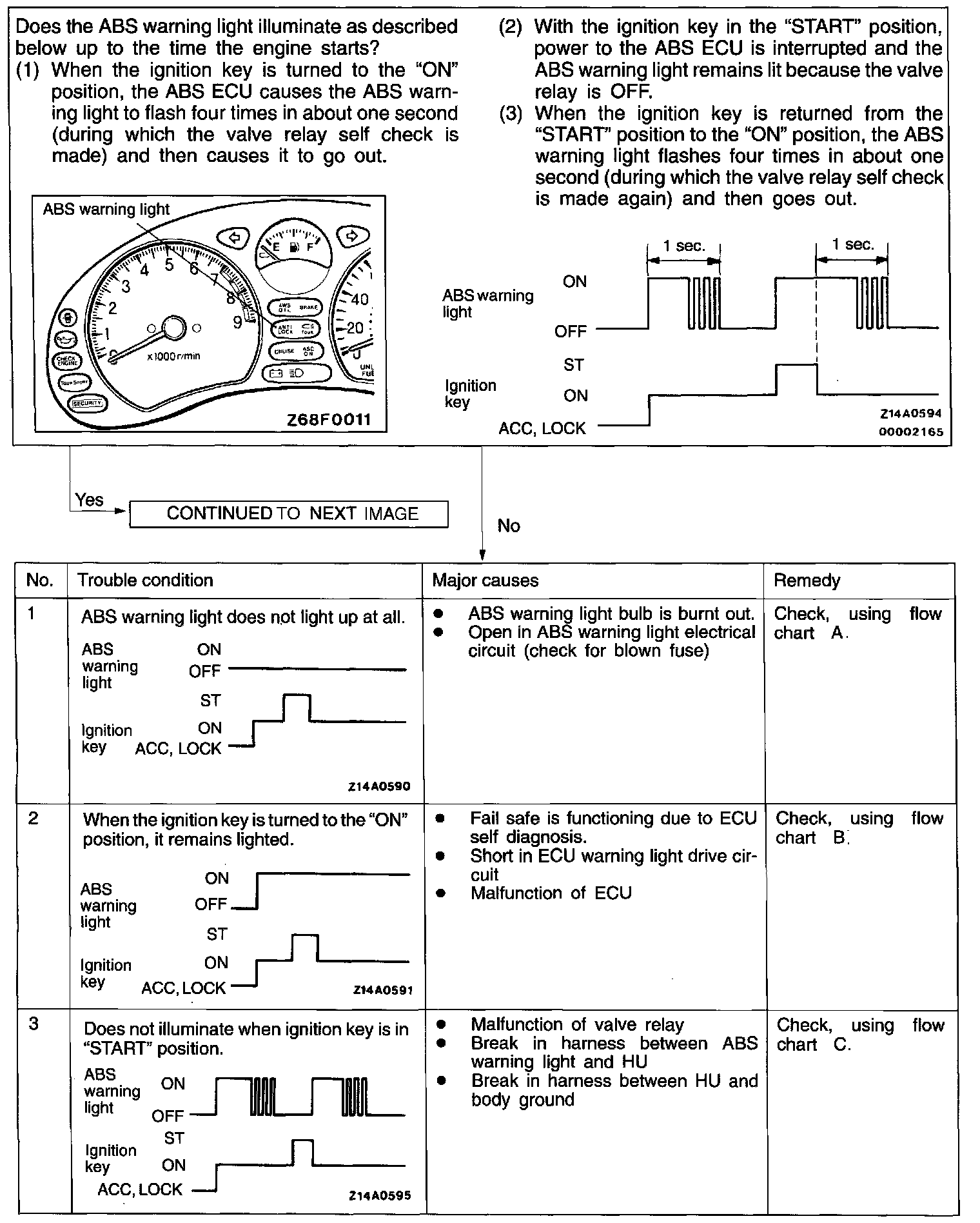

Part 1a:

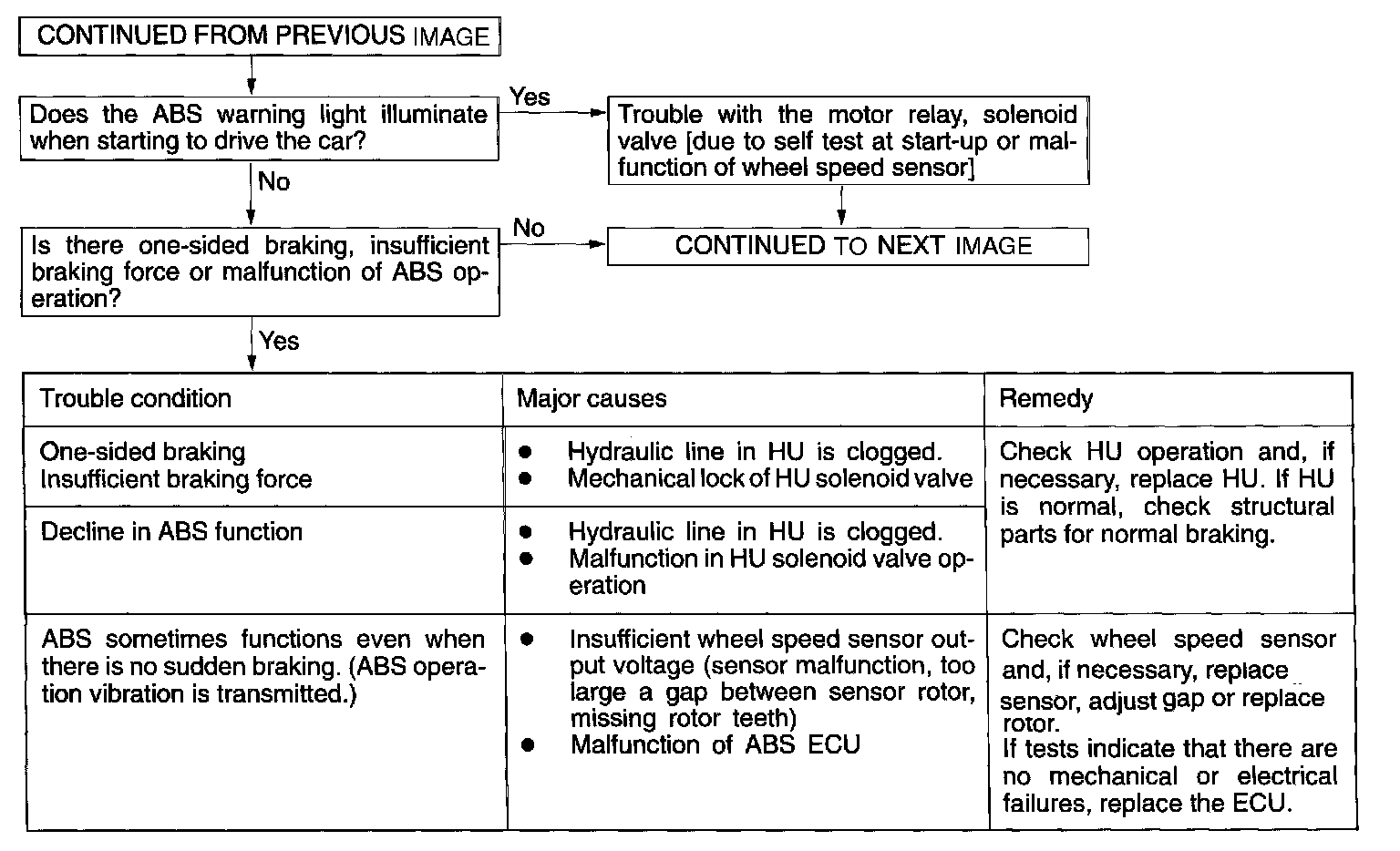

Part 1b:

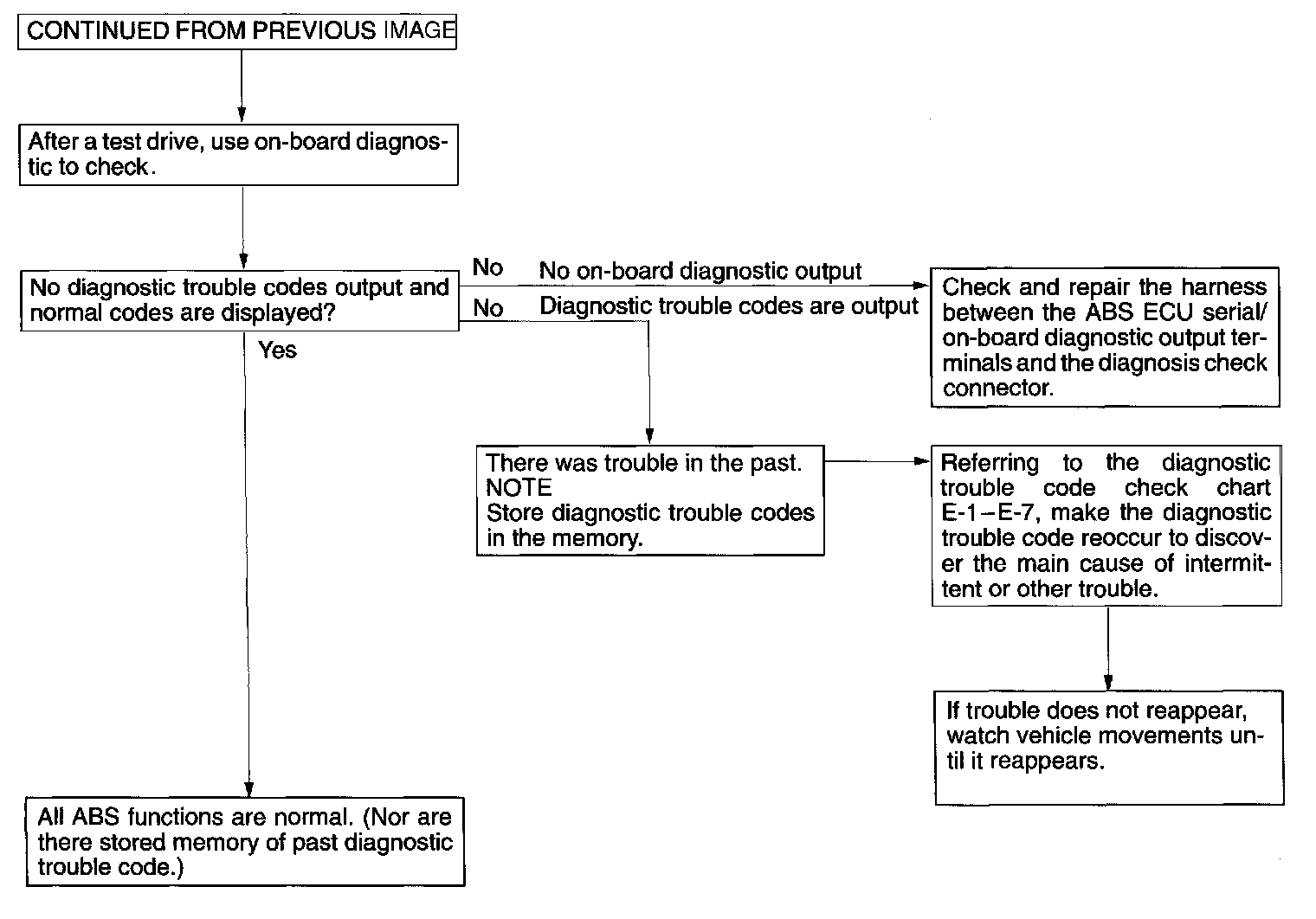

Part 3:

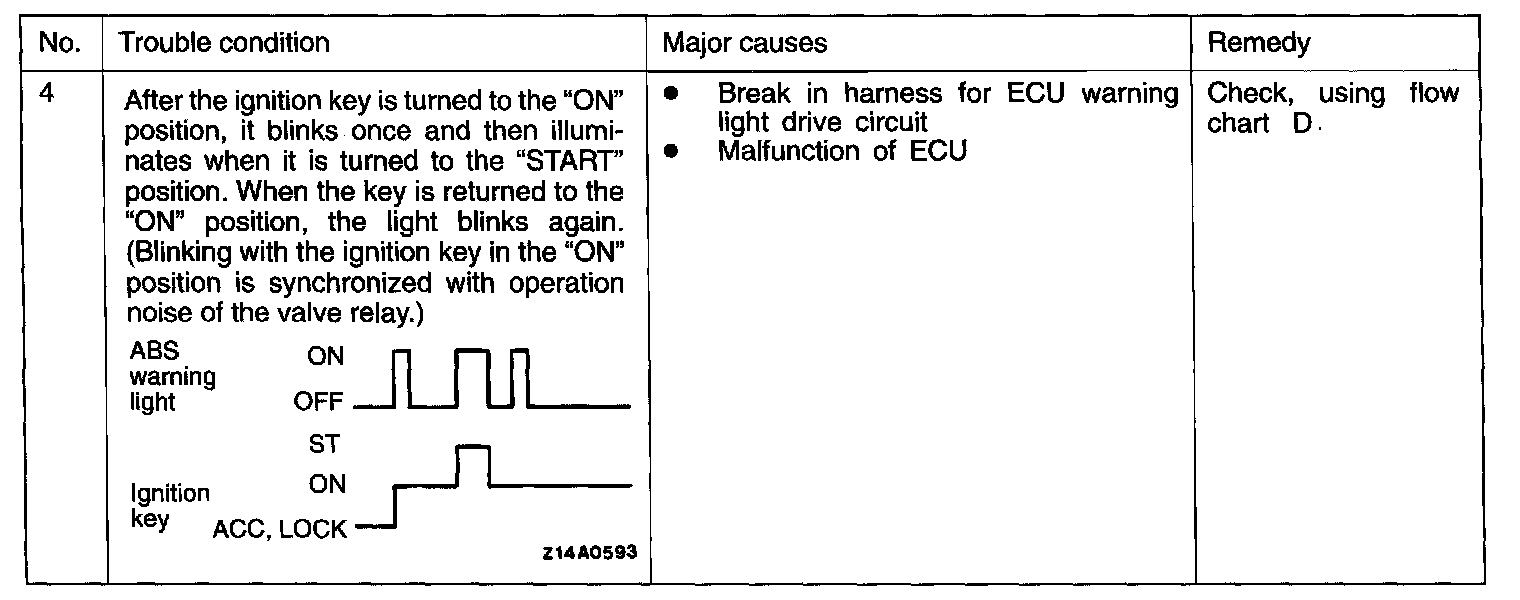

Part 4:

CAUTION:
1. When carrying out inspection of the ABS-ECU terminal voltage and resistance, the special tool (MB991356) should be used.

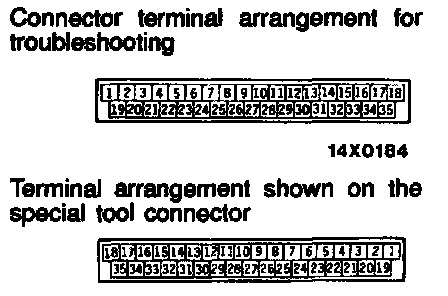

2. Because the ABS-ECU connector terminal No. layout for troubleshooting is diflerent from the terminal No. layout shown on the special tool connector, when using the special tool for inspecting, take the readings from the special tool terminal Nos.

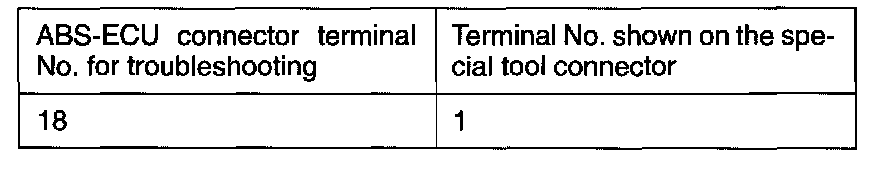

EXAMPLE
