Antenna Motor Control Unit - Inspection Revision
NO.: TSB-96-54-001DATE: February, 1996
MODEL: 1991-96 3000GT
SUBJECT:
ANTENNA MOTOR CONTROL UNIT INSPECTION PROCEDURES - SERVICE MANUAL REVISION
TSB Revision TSB-96-54-001
PURPOSE
The inspection procedures for the antenna motor control unit in the 1991 and 1992- 96 3000GT Service Manuals, Volume 2, contain some incorrect data. The "Antenna operating direction" on the chart is reversed. Make corrections to the manual according to the information in this bulletin.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED SERVICE MANUAL
1991 3000GT, Volume 2, page 54-113
1992-96 3000GT, Volume 2, page 54-189
SERVICE MANUAL REVISIONS

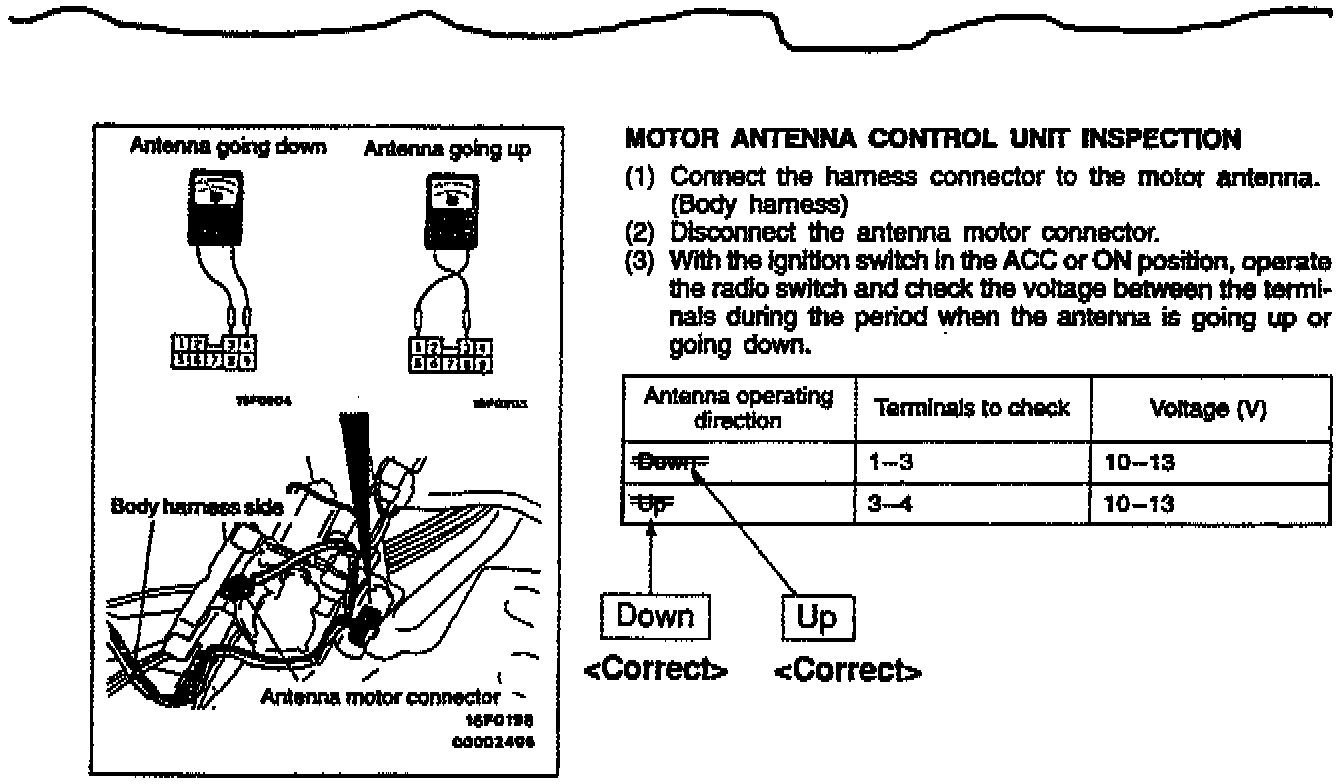

1991 3000GT, Volume 2, page 54-113
Revise the inspection procedures as shown.

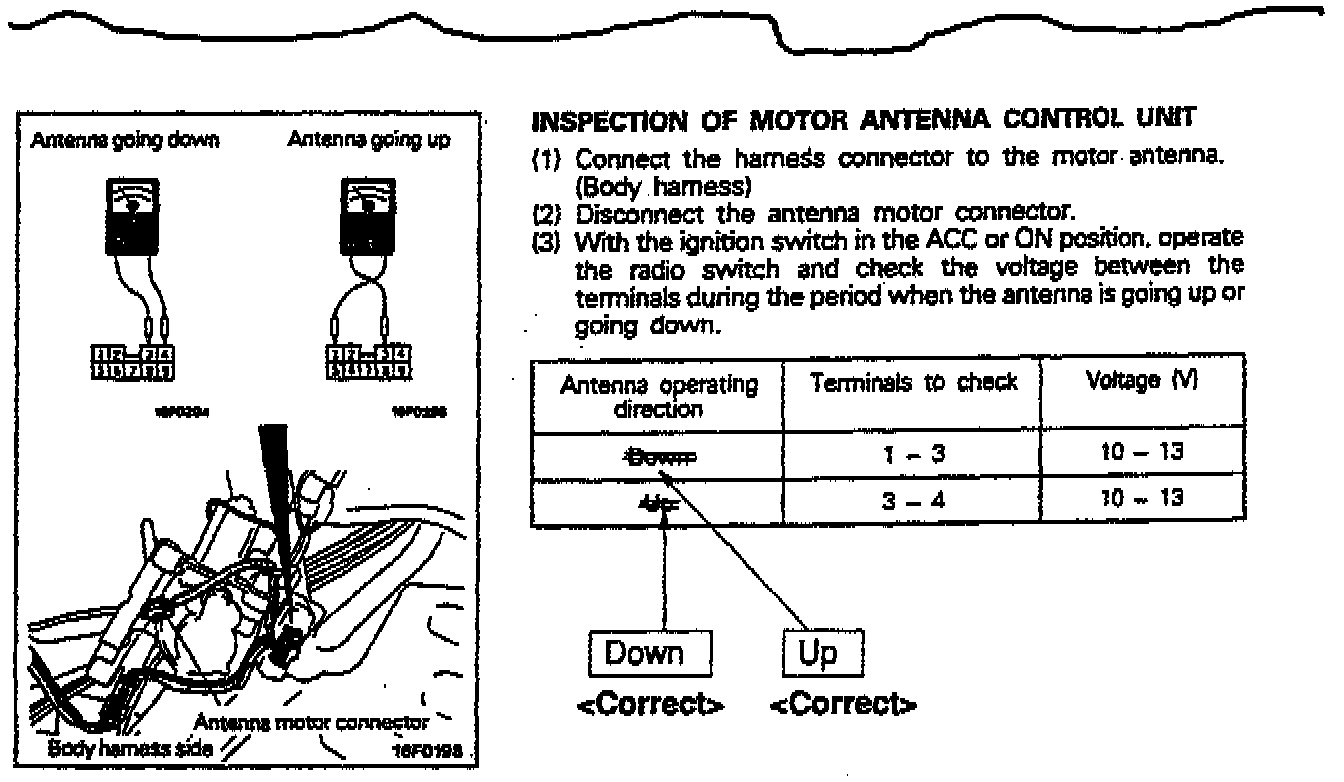

1992-96 3000GT, Volume 2 page 54-189
Revise the inspection procedures as shown.
