California

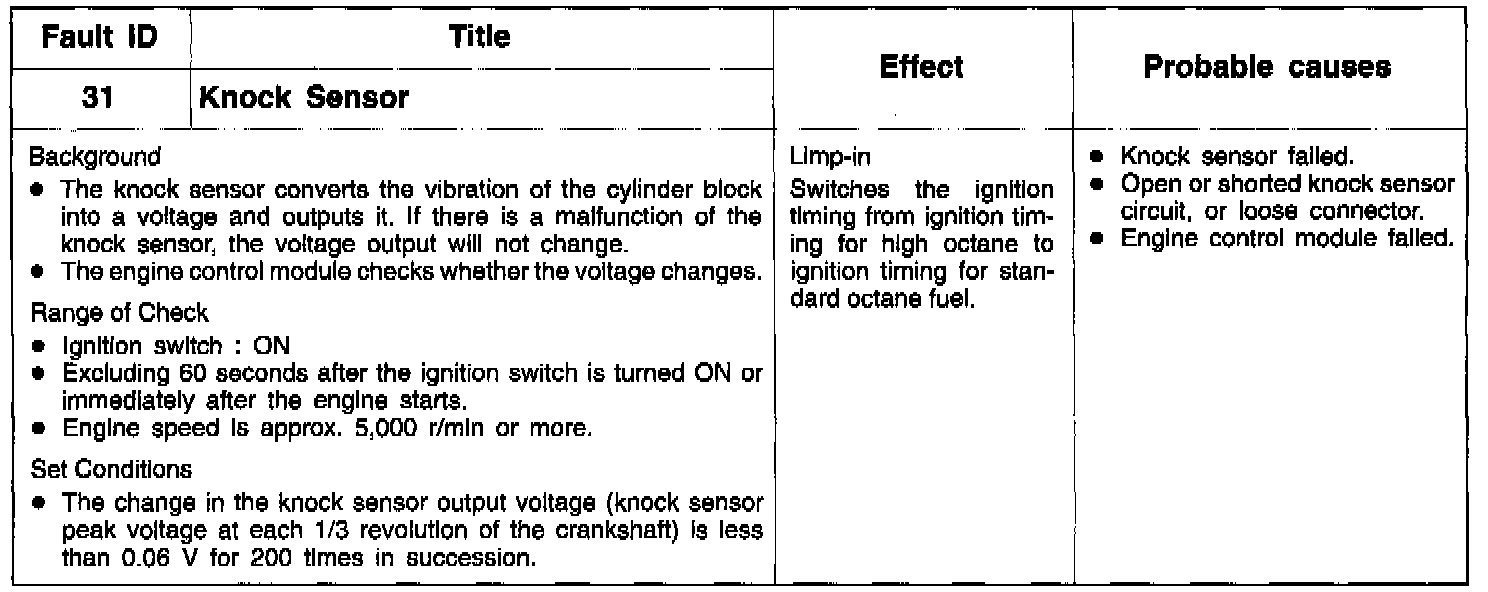

TROUBLESHOOTING PROCEDURES

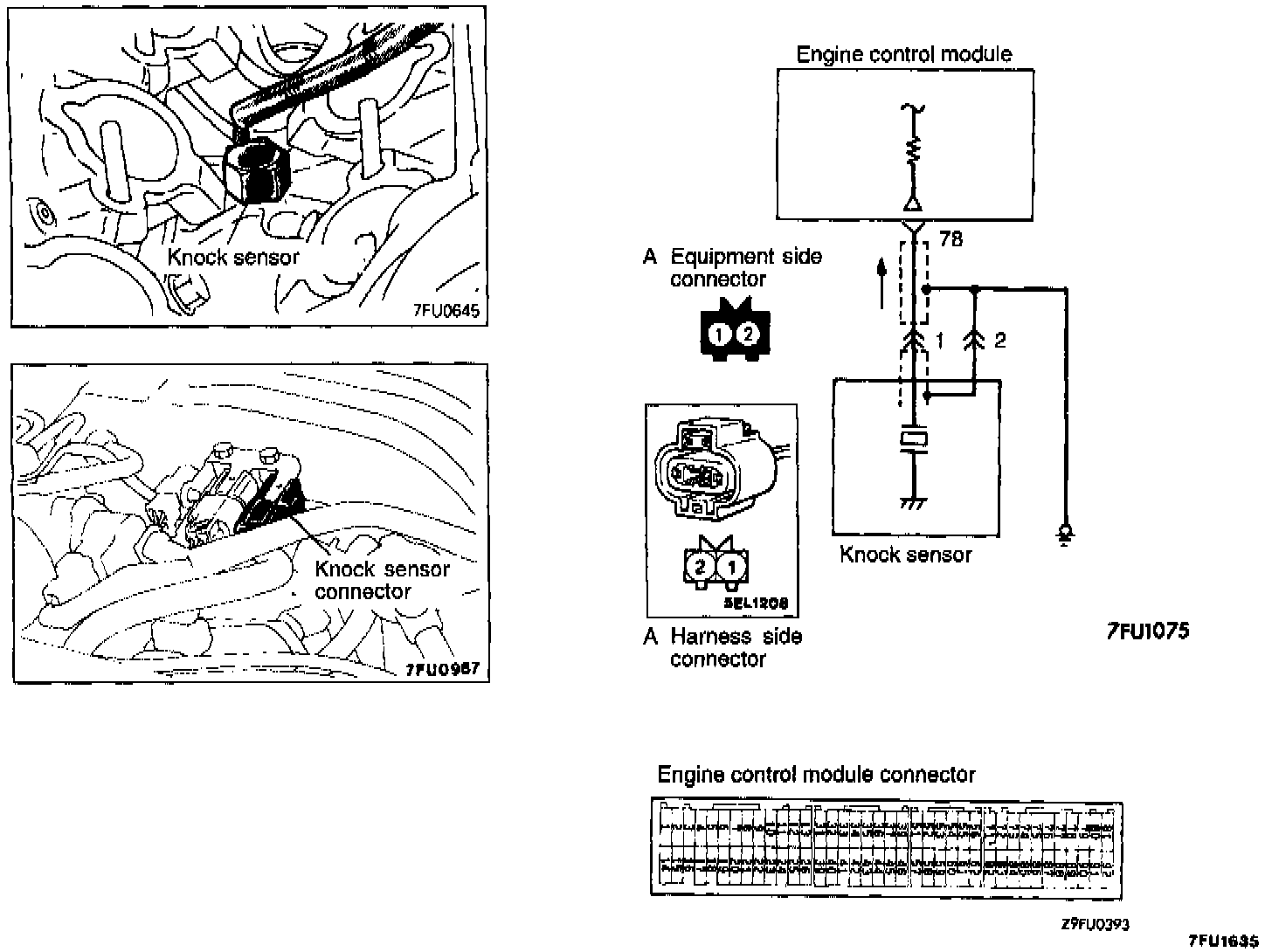

CIRCUIT DIAGRAM

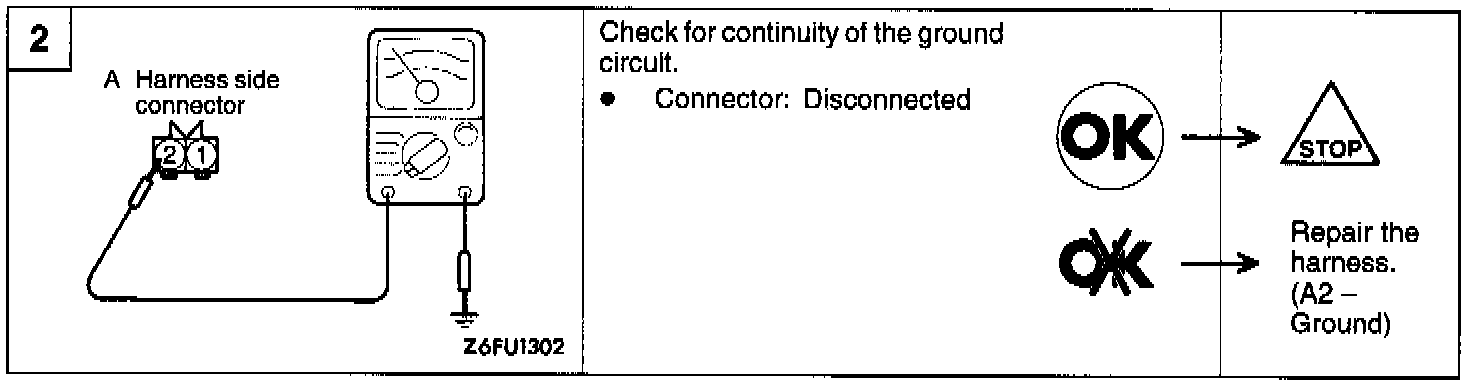

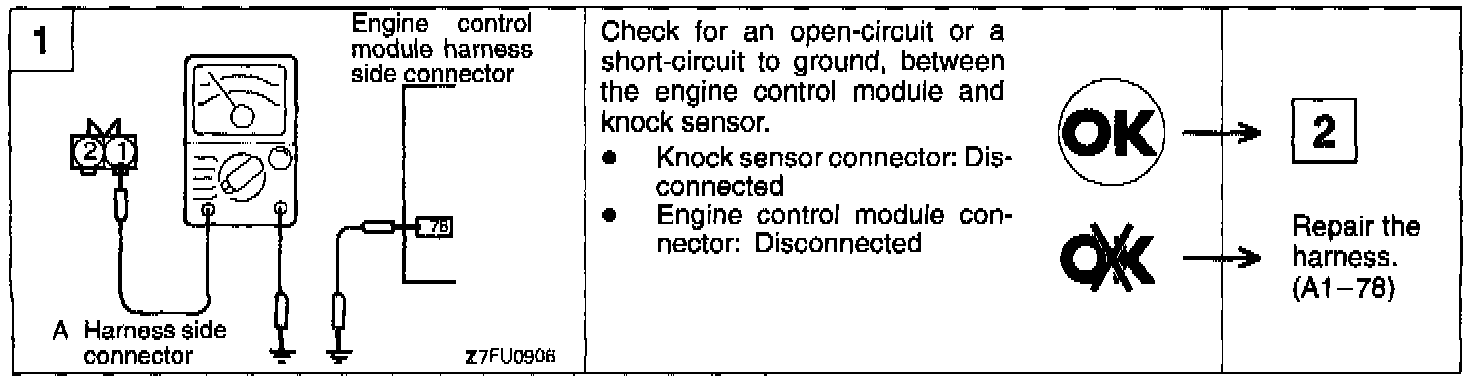

HARNESS INSPECTION PROCEDURE

TROUBLESHOOTING HINTS
When knocking occurs while driving under high-load conditions, the following problems are suspected in addition to the knock sensor itself.
1. Inappropriate ignition plug heat range
2. Inappropriate gasoline
3. Incorrectly adjusted reference ignition timing
