California

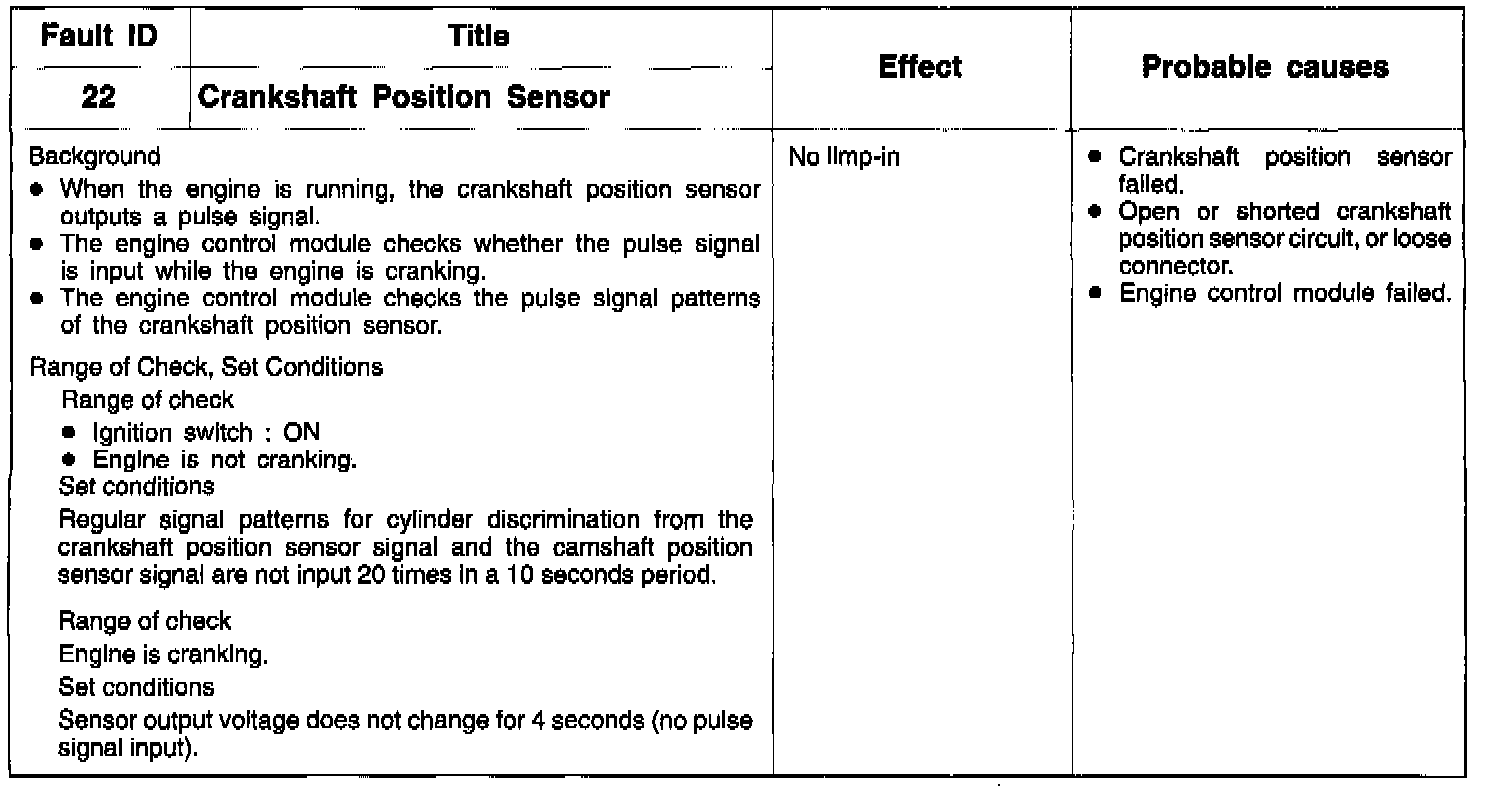

TROUBLESHOOTING PROCEDURES

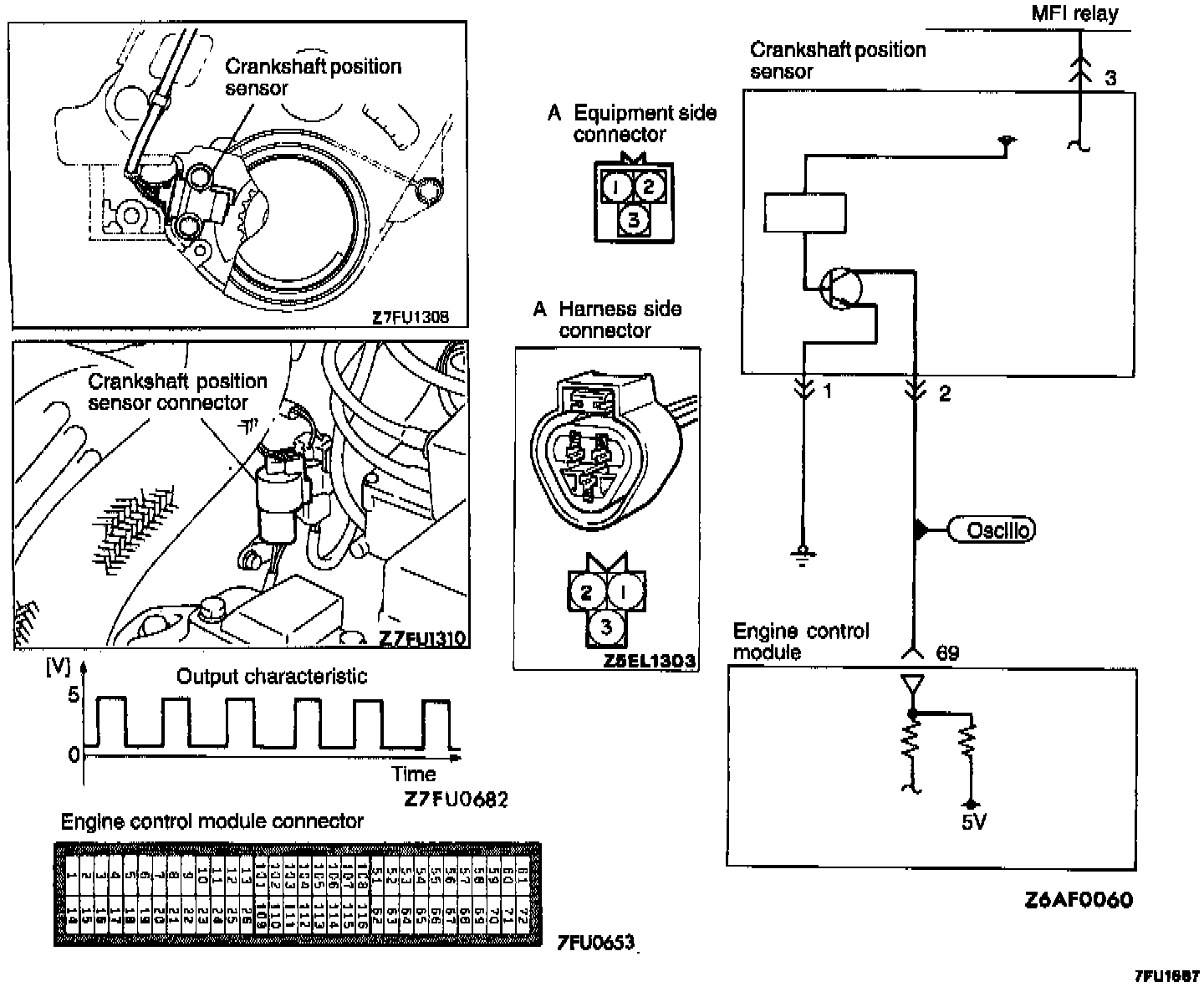

CIRCUIT DIAGRAM





NOTE:
(1) The tachometer indicates a third of the actual engine speed. Therefore, 3 times the tachometer indication is the actual engine speed.
(2) When the tachometer is set to the 2-cylinder range, it indicates actual engine speed.

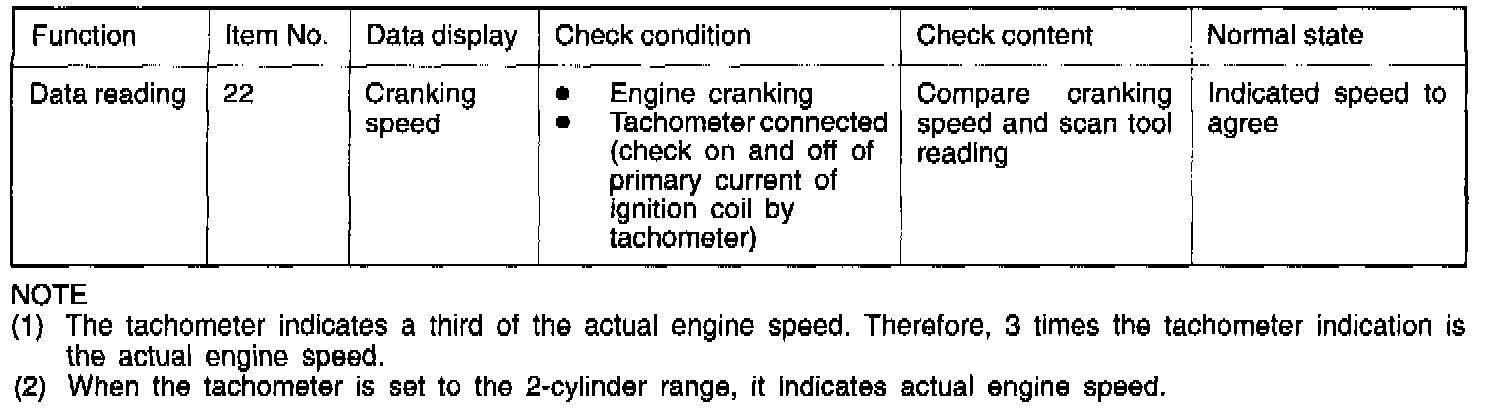

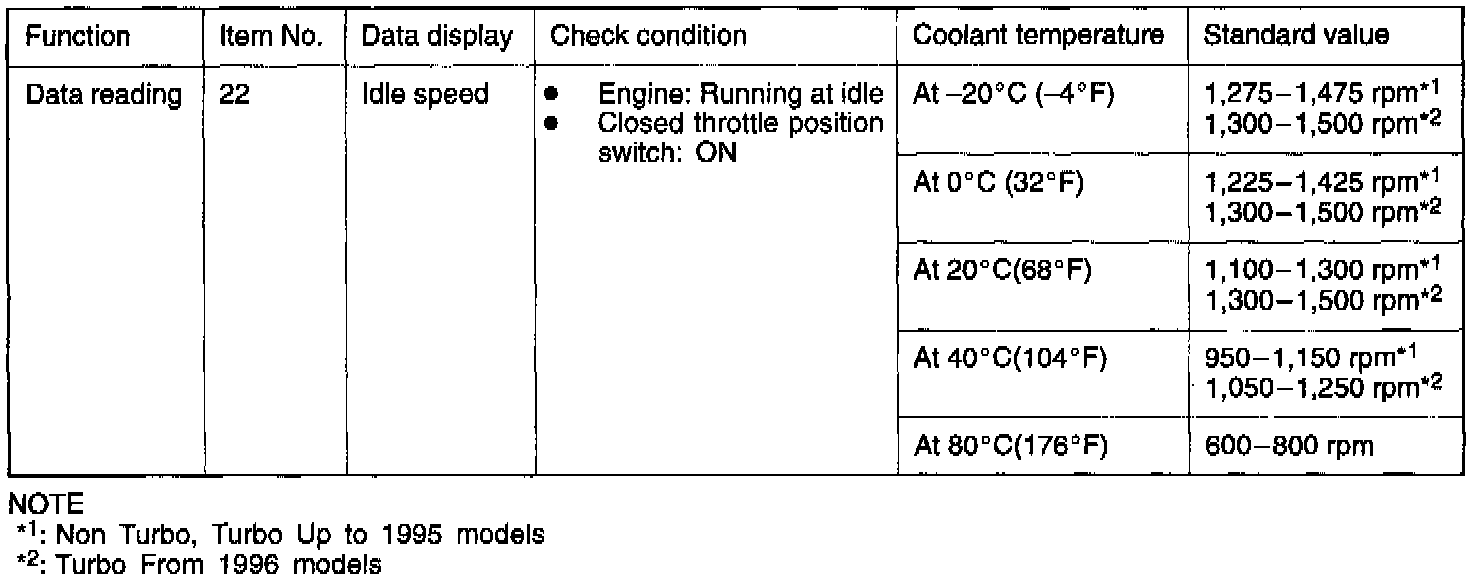

INSPECTION USING SCAN TOOL

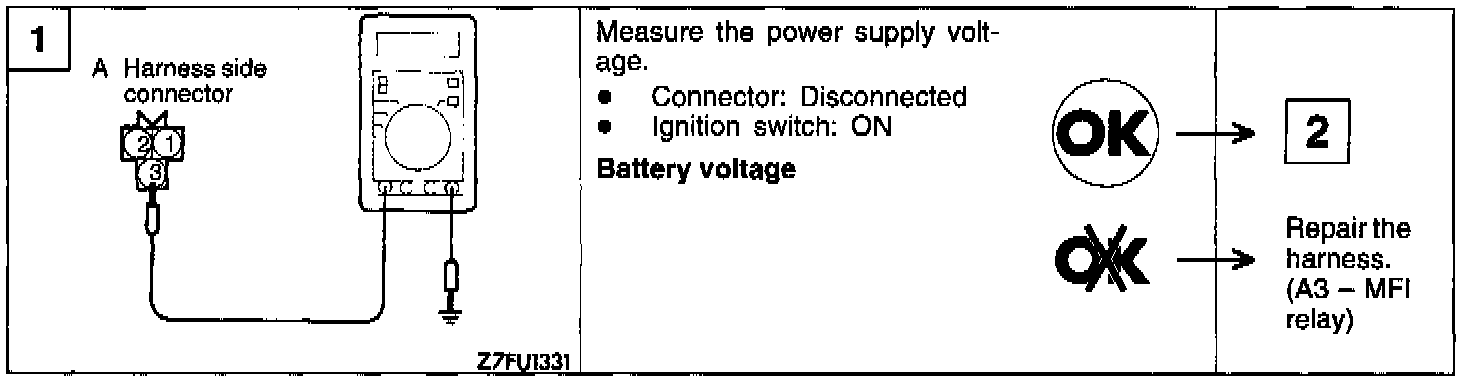

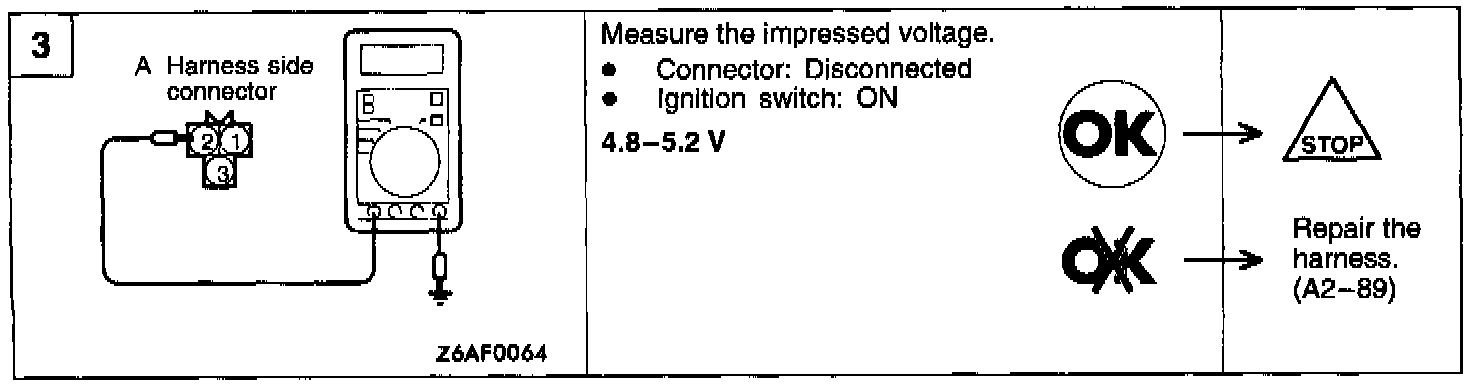

HARNESS INSPECTION PROCEDURE

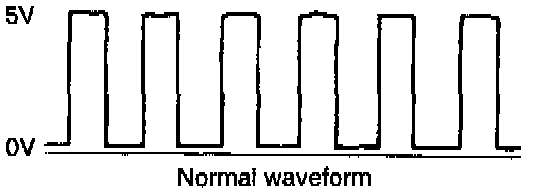

USING OSCILLOSCOPE
(1) Run the engine at idle speed.





(2) Connect the probe to the oscilloscope pick-up point as shown in the circuit diagram, and check the waveform.

TROUBLESHOOTING HINTS
Hint 1: If unexpected shocks are felt during driving or the engine stalls suddenly during idling, shake the crankshaft position sensor harness. If this causes the engine to stall, poor contact of the sensor connector is suspected.
Hint 2: If the crankshaft position sensor outputs a pulse signal when the ignition switch is turned ON (with the engine not running), a faulty crankshaft position sensor or engine control module is suspected.
Hint 3: If the tachometer reads 0 rpm when the engine that has failed to start is cranked, faulty crankshaft position sensor or broken timing belt is suspected.
Hint 4: If the tachometer reads 0 rpm when the engine that has failed to start is cranked, the primary current of the ignition coil is not turned on and off. Therefore, troubles in the ignition circuit and ignition coil or faulty ignition power transistor is suspected.
Hint 5: If the engine can be run at idle even though the crankshaft position sensor reading is out of specification, troubles are often in other than the crankshaft position sensor.
